Product Details:
Payment & Shipping Terms:
|
| Exterior Material: | Stainless Steel | Interior Material: | Stainless Steel |
|---|---|---|---|
| Insulation Materail: | Rigid Foam | Controllor: | Touch Screen Controllor |
| Refrigeration System: | Hermetic Compressor | Temp Range: | 50-200 Degree ( Max 300 Degree ) |
| High Light: | laboratory drying oven,large industrial ovens |
||
High Temperature Industrial Drying Ovens For Electrical Devices 50-300 Degree
OEM&ODM are welcome , kindly contact:anna@komegtech.com
Application
High temperature dust free drying oven provides clean high temperature environment for the test samples. Air closed cycle, high efficiency air filter for several times, makes indoor oven work in clean condition. Stainless steel structure, temperature is automatically controlled by temperature contrHigh temperature dust free drying oven provides clean high temperature environment for the test samples. Air closed cycle, high efficiency air filter(100 level) for several times, makes indoor oven work in clean condition. Stainless steel structure, temperature is automatically controlled by temperature controller with timing device.oller with timing device.
Specifications
| Ambient temperature | 20℃～300 ℃ |
| Air supply | Forced air circulation |
| Temp range | +60℃ ～ +180℃ |
| Temp uniformity | ±10.0℃ (With load 35KW) |
| Heating up time | From +60 up to +180℃ 60min no load |
| Load fever |
1. Load fever 35KW, load the hair must be controlled by the machine. The machine provide control 2. Signal control of the customer's load when the machine stops running, the temperature too high or the machine fails must be cut off the load heating |
| Control way | PID+SSR Output |
| Inner size | W 1750 × H 1850 × D 2500 mm |
| Exterior size | Approx W 2250 × H 2150 × D 3050 mm (External size does not include the machine motor, exhaust fan and other protruding parts) |
| Baseboard bearing | ≤500kg/m2 |
Other specification
| Door Sealing | Silicone, double wing door W(850+850)xH 1850mm |
| Material | Inner material:SUS304# stainless steel ；Exterior size:cooling baked painting |
| Insulation material | Glass wool |
| Heater | High quality nickel-chromium alloy wire electric heaters, |
| Temperature Controller |
ST-570 South Korea imported thermostat ST-570 *high precision(0.1%), high performance *Support multiple input (T / C, RTD, DCV) *Can finish multiple output and simultaneous output (Max 4 points) *Simple parameter operation , available text settings *Supports suppressing system Overshoot function *Alarm output 1 point
Auxiliary output status operation screen displayed
*Each zone input adjustment function (Max 4 Zone) To achieve control heating and cooling function *PID automatic adjustment function (AT Gain) (AT Gain) *Supports multiple communication protocols (Modbus, etc.) *To achieve high quality, high reliability (CE, CUL, ISO, etc.)* |
| Temperature body | K thermoelectric |
| ventilator | Ventilator 1 type, displacement of 130 ~ 250m3 / h (from the exhaust fan to the duct outside the laboratory to be handled by the customer) |
| Protection System | Over-temperature protection, motor overload protection, buzzer, fault indicator, no fuse switch. |
| Work timer | Digital working timer 1type, the timer starts when the temperature reaches the set value, , 0 ~ 9999 hours |
| Control panel |
Controller ；‚Over-temperature protection；ƒwork timer； ④ emergency stop switch; ⑤ power switch;⑥ timer switch; ⑦ fault lights. |

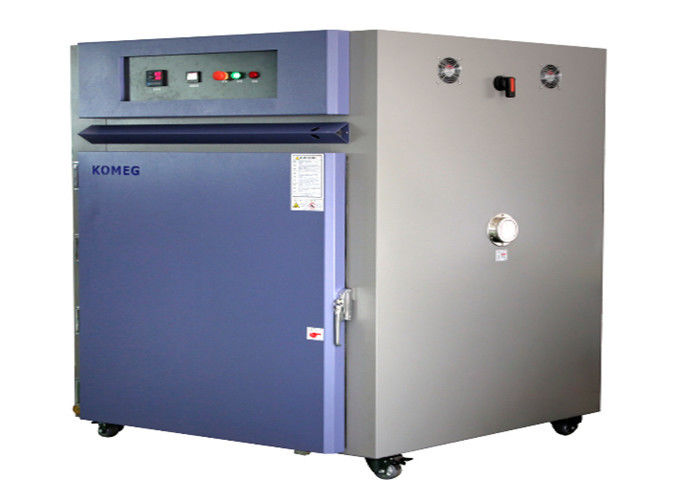

Product View
These series of constant temperature and humidity test chamber are applied to industrial product reliability test. It has features of high precise temperature and humidity and wide control range. Meet GB5170.2.3.5.6-95 standard requirements of environmental testing equipment and test methods for the basic parameters of electric and electronic products under the condition of humidity, low temperature, high temperature, and constant heat.
The product can meet the following standards:
● GB-2423.2-89(IEC68-2-2)Test B:High Temperature Test
● GJB360.8-87(MIL-STD.202F) High Temperature Life Test
● GJBl50.3(MIL-STD-810D)High temperature test
Characteristics:
1.Outside stainless steel, fine powder coating treatment; Inner SUS#304 stainless steel.
2.High quality paint drying oven use new high temperature resistant long shaft motor.
3 Turbine fan.
4.Silicone forced tight.
5.Over temperature protection, super load automatic power system.
6.Circulation system: air force level cycle.
7.Heating system:PID+S.S.R.
8.The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function.
9.Timer: temperature to time, when the power failure alarm indication.
10.According to customer demand matching glass window can be customized according to customer specifications specified.

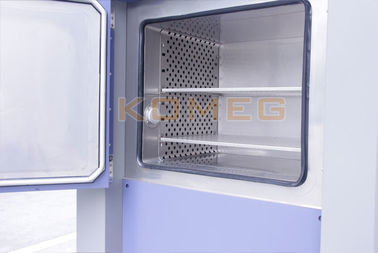

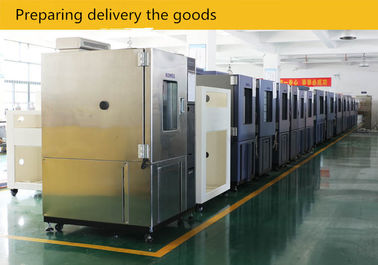

Photos show
