|Material:||SUS304 Stainless Steel||Controller:||LED Touchscreen 7 Inch|
|Humidity Uniformity:||±3.0% Or ±5.0%||Humidity Range:||10~98%|
|Temperature Range:||-70 °C To 150/180 °C||Volume:||150L|
|Usage:||Auto Testing Machine||Temp. Uniformity:||±2.0ºC|
|Humidity Constancy:||±2.5％R.H||Ambient Temp.:||+5°C ～+35°C|

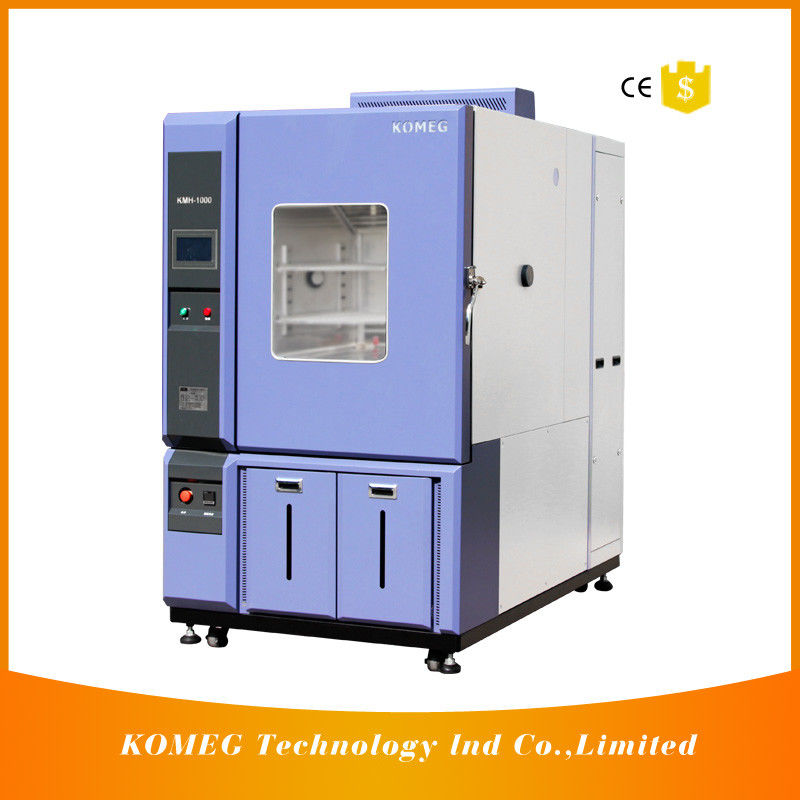

Lab Environmental Chambers, Environmental Simulation Chamber, Environmental Test Chamber
Stamdard temperature humidity environmental test chamber with ce certificate, which simulate the effects that a range of temperature and humidity conditions have on a product or material, such as telecommunications equipments, photo solar panels that are ecposed to outdoor temperature humidity environment.
They have application in industries as disparate as food science, semiconductors and military quality assurace. A good temperature humidity machine is essential for evaluating potential success, failure of a product in the field. Climate test chambers come in a variety of sizes, from a small box that fits on the bench top to a room size chamber for large objects, for testing large batches of product simultaneously. Temperature ranges from standard -70 degree to 150 degree(can custom -73 degree to 180 degree) and relative humidity ranges between 20% and 98% are available. A climate test chamber can be used when constant climate conditions by temperature, both temperature and humidity need for product physical tests.
Key Specifications/Special Features:
Lab environmental chambers, environmental simulation chamber, environmental test chamber
For the life sciences, plant growth tissue culture, agriculture and forestry research, pharmaceutical and other fields of quality inspection and basic research.
1. Temperature control system in the ambient temperature monitoring device can automatically control the working conditions of the refrigeration system, effectively ensuring the equipment for long-term continuous operation.
2. Intelligent controller using CPU microprocessor for PID control, temperature and humidity data reliable and accurate.
3. The main components are imported high-quality devices to ensure the reliability and stability of the equipment.
4. Reasonable water treatment system, really no drainage.
5. The cooling system uses pressure balance control, which reduces the power consumption and improves the performance index.
6. With over-temperature alarm, temperature limiting protection and other functions.
7. Power memory function, to ensure the continuity of the experiment.
Environmental test chamber Standard
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 humid testing
GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
B/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
B/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method
IEC60068-2-1.1990 low-temperature testing method
IEC60068-2-2.1974 high-temperature testing method
KMH-S series( -70°C ～150°C)
|Temp. range||-70°C ～150°C|
|Heat up time||-70°C ～+100°C ,within 60 min|
|Pull down time||+20°C ～-70°C , within 80 min|
|Safety device (standard)||NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection|
|Interior material||Stainless Steel Plate(SUS 304)|
|Exterior material||Baked Painting Steel Or Stainless steel(SUS304)|
|Insulation material||Rigid polyurethane Foam and Glass Fiber Wool|
|Ambient Temp.||+5°C ～+35°C|
|Wiring method||AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires|
|Controller||LCD Touch Screen, Chinese or English display selectable|
|Operation model :Program or fix point running|
|Memory capacity :120programs,1200steps,|
|All repeat 999 cycles, part repeat 99 cycles|
1) The system allows users to set max. 120 groups of patern/programs(PTN)x1200 sections(SETP), each program can be arbitrarily devided into any number of segments.
2) Each running program can be operated for 9,999 times, or repeated for unlimited times of cycle, meanwhile the running program can be devided 5 groups to execute additional parts of the cycle.
3) Adopts intelligent type micro-competer PID + SSR/SCR, be able to sync output in positive & reverse direction automatically, controlling precision is accurate & stable, containing advanced slope controlling logic, fully meet customers' testing purposes.
4) When setting of temperature, humidity and number of cycles and so on is done, graph of relevant settings can be generated immediately, and these graphs can be obtained at the same time while programs are running.
5) Containing 15 fully-functional system inspection devices, so as to ensure the operational safety of the equipment, when there is trouble detected, controlling power will be cut off, meanwhile, trouble occurrence time, name of the trouble item and solutions will be indicated on screen automatically.
