Payment & Shipping Terms:
|Interior Size:||W120xH132xD88cm||Exterior Size:||W160XH207XD110CM|
|Temp Range:||50℃～200℃ Approx 50Min||Interior Material:||Stainless Steel|
|Exterior Material:||Baked Painting Steel||Insulation Material:||Glass Wool|
laboratory drying oven,
vacuum drying oven

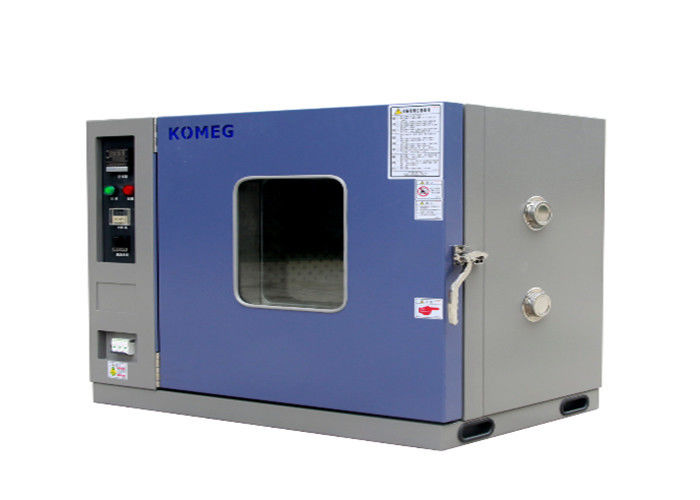

Industrial Microwave Drying Oven /Mini Drying Oven 50-300 Degree High Temp 136L
OEM and ODM are welcome
For more detail information ,kindly contact : firstname.lastname@example.org whats app ,wechat :+86-18029096856
|Working Volume (litter||50L||100L||136L||200L||216L||290L||500L||600L||720L||1012L||1000L||1394L||1800L||8100L|
|Interior size WxHx D(cm)||40x35x35||45X50X45||120x 132 x 88||60X60X60||60 x 60× 60||60X95X60||80X105X60||100X100X60||90X100X80||90× 125× 90||90 X 110 X 100||120 X 132 X 88||160X140X60||175 × 185 × 250|
|Temperature range||,+50℃ ～ +200℃|
|Temp fluctation||±1.0 ºC|
|Temp Uniformity||±2.0℃ (+50℃ ～ +100℃)
±3.0℃ (+101℃ ～ +200℃)
±4.0℃ (+201℃ ～ +250℃)
|Heat up time||+50℃ ～ +250℃ 90min no-load|
|Heating and cooling rate||R :-20℃ ↑ +100℃ whithin 35min L: -40℃ ↑ +100℃ whithin 45min S: -70℃ ↑ +100℃ whithin 60min
, +20℃ ↓ -20℃ within 45min +20℃ ↓ -40℃ within 60min +20℃ ↓ -70℃ within 80min
|Temperature and humidity range|

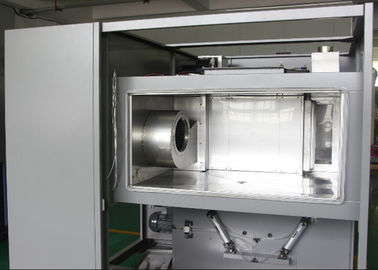

|Chamber Structure :Overall structure and chamber was composed of three parts as below:
Insulation chamber, separate refrigeration units, and electrical control cabinet.
|Insulation chamber||※Exterior material: high-quality carbon steel with static color spray
※ inner wall material: SUS304 # matte stainless steel plate
※ Insulation materials: rigid polyurethane foam insulation layer + glass fiber.
|Observation window||With different siize observation window, multi-hollow electric insulation coated glass prevent condensation effectively|
|Heater||High quality nickel - chromium alloy wire electric heater, Contactless control mode (SSR)|
|Humidifier||Water heating with basin
Stainless steel armored heater
Heater control: Contactless control mode (SSR)
Device of water level control and heater anti-dry
|Water outlet hole||Available for drain the condensate water|
|Threading hole||Φ50mm located on both sides(each*1) with rubber stopper and plastic cover|
|Sample holder||as customer request|
|Mobile Casters||Mobile Casters with foot cups|
|Electric control box||Total power circuit breaker, over-temperature protection.|
|Water supply system||Water pump automatic supply|
|Working mode||Mechanical compression refrigeration|
|Control mode||Forced ventilation loops design, balance temperature & humidity control system (BTHC).|
|Refrigeration compressor||Hermetic compressor imported from Europe and the United States|
|Evaporator||Automatic load capacity adjustment of high performance of fin type, able to use in low temperature and high humidity in a long term and without frost.|
|Cooling||Sine wave pattern aluminum finned copper tube air heat exchanger (air-cooled)|
|Refrigerant||R404a Environmental friendly high temperature level of refrigerant|
|Other attachment||High-precision expansion valve, desiccant, and other components are imported internationally imported brands.|
|Refrigerant flow control||Refrigeration system of energy consumption output control by automatic adjustment|
|Refrigeration Technology||※ Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal cooling system clean and reliable.
※water tray located at the bottom of the compressor to ensure condensate water drain through pipe freely at the rear of the chamber.
|Sensor||High precision DIN A class, dry ball φ4.8mm SUS # 304 PT 100Ω|
|Controller||Touch screen controller with PID control parameters setting|
|Display||Temperature and humidity settings (SV) Actual (PV) value can be displayed directly,
Execution of the program can display numbers, Paragraphs, remaining time and cycles, running time display,
Program editing and graphic curve display,
Fixed or program operation status display,
7-inch TFT display screen. Resolution: 800*480
|Resolution||Temperature: + 0.01 ℃; Humidity: + 0.1%; Time: 1min|
|Setting range||Temperature: –100～200 ℃；
Temperature can be adjusted based on the working temp of the equipment(the upper limit +5 ℃, the lower limit -5 ℃)
Humidity: 0～100 %RH.
|Running mode||programmable running ,constant running and booking boot|
|Program capacity||The operating time can be set up to 9999 h 59 m(Set 0 to constant operation without time limit)
Available program capacity: 1000max
Available memory capacity: 1000step/group
Repeatable command: Each command can be cycles to 999.
|Setting mode||Man-machine dialogue mode, Touch mode input and control.|
|Communication interface||Data collection when connected to a computer
Can be used as monitoring and remote control system,
Multiple machines synchronization control available.
RS-232,RS-485 and Ethernet.
|U disk Memory card||1G-8G disk is available with history curve, historical data download hot-swappable function|
The Ovens are mostly used for drying, baking, sterilization of non - volatile items and heat treatment test
For mining enterprises, schools, medical and scientific research. Expecially for simultaneous drying of different kinds of polymers .
In small quantities for drying materials for trial molding. They can also be applied in electronic engineering, electroplating,
And pharmacy, paint baking, printing industries, etc. For preheating or drying related products.
● GB-2423.2-89(IEC68-2-2)Test B:High Temperature Test
● GJB360.8-87(MIL-STD.202F) High Temperature Life Test
● GJBl50.3(MIL-STD-810D)High temperature test
