Temp Range: | +20~+100℃ | Humidity Uniformity: | ±5.0%R.H |
---|---|---|---|
Interior Material: | Stainless Steel Plate(SUS 304) | Insulation Material: | Glass Wool |
Power: | AC 380±10%50Hz ,3 Phase 4 Wires +Ground Wires | Door: | Double Open Door |
High Light: | accelerated aging chamber,uv aging test chamber |
Double open door aging test chamber /cable ventilation resistance test chamber
Description
Stainless steel plate made hot cold air change endurance tester for electronic parts is specialized in
aging test of rubber, plastic and various isolation materials. It performs compulsorily interior air change
for a certain regulative cycles, which differs from a general furnace.
Applicationg
Suitable for all kinds of electronic products,expecially for products with heating characteristics
Product and loading area should be separated
Large-scale production
Specifications
Interior dimensions(W*H*D) mm | 1600*1280*650 |
Exterior dimensions(W*H*D) mm | 1820*1980*850 |
Temp. range | Room Temp. +20~+100℃ |
Temp. constancy | ±0.5℃ |
Temp. uniformity | ±3℃ |
Test. capacity | 88PCS/CYCLE(Custom made available) |
Dimension | 100W*100HJ*50D(MM) |
Test range | FAN(full machines number) |
Voltage range | 3~50V |
Current range | ±5% |
Speed | 0-15000RPM,±8% |
The detection speed | 7-12sec/cycle |
Note: | |
1. We reserve the right to change specifications without prior notice | |
2. Customized sizes and configurations available |
FAQ
Q1: What is the Warranty?
Generally, 12 months warranty. But for drying oven, the warranty is 18 months. If any quality problems on
our side occured in this period ,we will take on the cost of shipping and component parts.
Q2: What's the delivery term?
Usually, 20 - 25 days after order confirmation. It will be took more time for customization service. If you are
in urgent need, we can make special arrangement for you. It could be shipped by sea, by air or by air
express.
Q3: What’s the payment term?
Accept different kinds of payment terms, such T/T, L/C, Paypal.
Q4: Is it ok for customization service?
Of course you can. We are manufacturer of environmental test equipment. Once with your detailed
requests, we could make environmental test chamber accordingly.

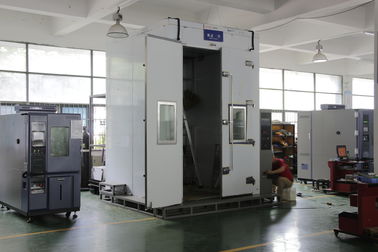

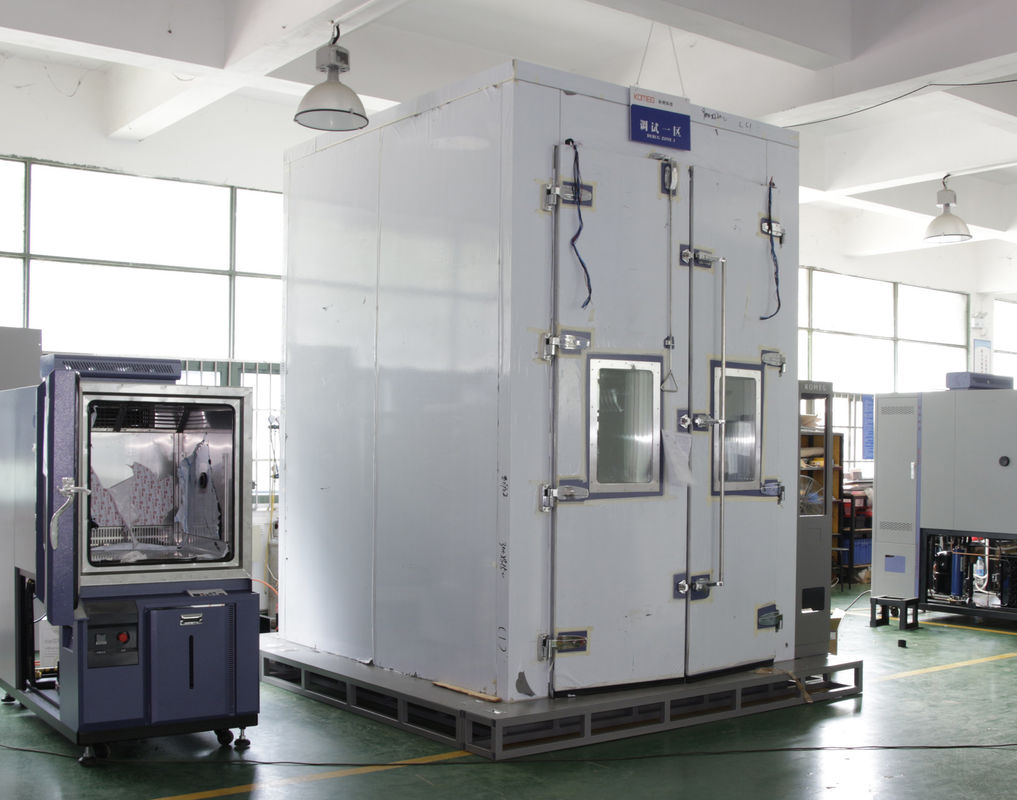

Prouduct Display
