|Temp Range:||-40℃ ～ +150℃||Temp Deviation:||≦ ± 2.0℃|
|Temp Fluctuation:||±0.5℃||Insulation Material:||Rigid Foam +glass Fiber|
high altitude chamber,
altitude testing chamber

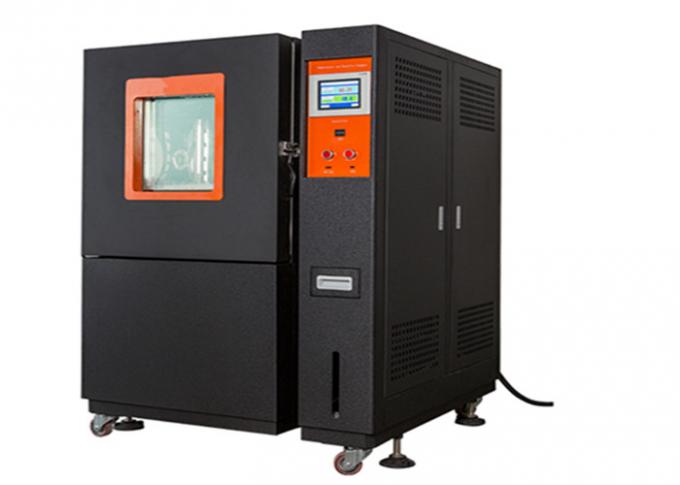

Environmental Humidity Test Chamber For Balistic Product - 40～ +150℃ CE Mark
High And Low Temperature chamber could used to test the application and the adaptability of the electronic products, assembles and materials under the low temperature, constant temperature and temperature cyclic change conditions.
● GB-2423.1-2008(IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50. 4-2009(MIL-STD-810D) Low Temperature Test
Main Technical Specifications
|Temp. range||-40℃ ～ +150℃|
|Heating and cooling rate||
Heating up rate: from -40℃ to +100℃ 45min (no load ,enviromental temp +25℃)
Cooling down: from +20℃ down to -40℃ approx 60min (no load,enviromental temp +25℃)
inner W 700 × H 750 × D800 mm
Exterior Size W 900 × H 1785 × D 1860 mm
wall material: high-quality carbon steel
inner wall material: SUS304 # matte stainless steel plate
Insulation materials: rigid polyurethane foam insulation layer + glass fiber
|Door||Single door,Left open , heating wire is installed at the door frames to prevent condensation at low temperatures|
|Obverstion Window||installed on the door,size: W210XH270MM multi-hollow electric insulation coated glass prevent condensation effectively|
|Lighting Device||1 PC 11W/AS220V installed in the inspection window|
High quality nickel-chromium alloy wire electric heaters,
Non-contact control mode(SSR)
|Water outlet hole||Available for drain the condensate water|
|Cable port||φ100mm*1 located on the left of chamber, with rubber stopper and stainless steel cover|
|Mobile Casters||Mobile Casters with foot cups|
|Electric control box||Total power circuit breaker, over-temperature protection.|
|Explosive pressure release device||When the pressure in the equipment or pipeline exceeds the safety valve pressure relief automatically open
Equipped: Bursting disc, shield, sensor switch
Function: a.When the test samples in the box explode, there is a pressure release pipe
B.Protect the test equipment from sudden air pressure damage
C. Protect people
|Ventilator||When the pressure in the equipment or pipeline exceeds the ventilator automatically open|
1) More than 28 years manufacturer experience and 8 years export experience.
2) Acceptable customization for all kinds of special specification products.
3) We value very inquiry sent to us, ensure quick and competitive offer.
4) We put your order into our tight production schedule, ensure your punctual delivery time.
5) We are a sales team, with more than 4 years experience, more professional and reliable.
6) Welcome to view our factory at any moment.
Since 1990,we went into the environmental test chambers industry. In 1990 we established our own factory,Dongguan Komeg Technology Co., Ltd., which has become an important manu-facturer of environmental friendly test chambers.
Our main products include Temperature Humidity Test Chamber, Thermal Shock Chamber, Walk in Stability Chamber, LCM(LAD)Aging Chamber, Hot Oven, Salt Spray Tester, Steam Aging Chamber, etc.
