Product Details:
Payment & Shipping Terms:
|
| Exterior Material: | Stainless Steel | Interior Material: | Stainless Steel |
|---|---|---|---|
| Insulation Materail: | Rigid Foam | Controllor: | Touch Screen Controllor |
| Refrigeration System: | Hermetic Compressor | Temp Range: | RT+20-70 Degree |
| High Light: | 2.6KW Xenon Lamp Test Chamber,Benchtop Xenon Lamp Test Chamber,Full Sunlight Spectrum Environmental Chamber |
||

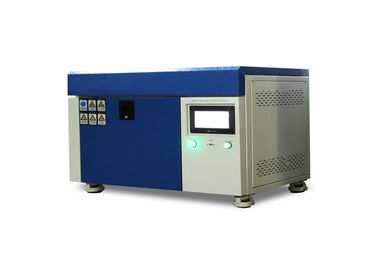

Bench Top Xenon Lamp Test Chamber Simulate Full Sunlight Spectrum
OEM &ODM are welcome , more information , pls kindly contact:anna@komegtech.com
Application
Use of xenon arc lamps can simulate full sunlight spectrum to reproduce destructive light waves existing in different environments can provide corresponding environmental simulations and accelerated tests for scientific research, product development, and quality control.
Main Technical Specifications
|
Work space |
Can place 9pcs 150*70mm samples for one time
|
||
|
Exterior size |
950*570*535mm (L x W x H )
|
||
|
Effective exposure area |
1000cm2
|
||
|
Material |
Outer : Electrostatic spraying treatment on the surface Liner: 304 stainless steel
|
||
| Power supply |
220V 50HZ Max electric current :16A Max Power : 2.6KW
|
||
|
Filter |
UV extension filter (optional daylight filter or window glass filter)
|
||
|
Irradiance monitoring method |
340nm ,420nm or 300~400nm (display at the same time ) |
||
|
Black panel temperature |
RT+30℃~+80℃
|
||
|
Wavelength setting range |
|
||
| Wavelength setting range |
|
||
|
Xenon lamp power |
1.8kw
|
||
|
Light source |
1.8KW original imported air cooled Xenon Lamp
|
||
|
Lamp life |
the life of the lamp can exceed approximately 1500 hour
|
||
|
Ambient temperature: |
0--28 ℃
|
||
|
Relative humidity |
not more than 85% R.H
|
| Automatic control system and function | Siemens PLC control system. |
| Test time |
1-99999H setting
|
| Irradiance control system |
imported UV sensor, high precision and long life. Cooperate with Siemens control system to form closed-loop control.
|
| Lamp driver |
a dedicated driver developed independently
|
| Blackboard thermometer |
composed of high-precision PT100 thermometer and high-weather metal blackboard
|
| Irradiance correction system |
automatic correction of irradiance.
|
| Lamp circulation air cooling system |
automatic program control.
|
| Perfect protection system |
large irradiance error, over temperature, current overload, etc.
|
Product structure
(1) Unique balanced temperature adjustment method makes equipment have a stable and balanced heating capacity, and can carry out high-precision and high-stability constant temperature control.
(2) Studio is made of high-quality stainless steel plate, and sample shelf is also made of stainless steel, which is corrosion-resistant and easy to clean.
(3) Temperature control part of the equipment adopts imported intelligent temperature controller, PID self-adjustment, high precision and high stability to ensure accurate control of equipment.
(4) The device has over-temperature protection, sound prompt and timing function. When timer ends or alarms, power is automatically cut off to stop device to ensure safety of device and person.
(5) Sealing strip of equipment is made of silicone material, which has characteristics of good toughness, low deformation and stickiness under high temperature environment.
(6) The box body is made of stainless steel, which is beautiful and elegant.

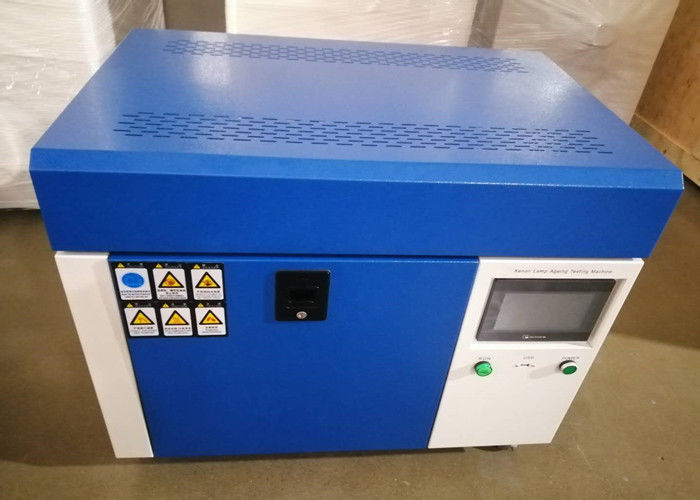

Photos show
