| Volume: | 512L | Power: | 78KW |
|---|---|---|---|
| Application: | Automotive | Test Zone Dimensions W×H×D（mm）: | 800×800×800 |
| External Dimensions W×H×D（mm）: | 4600×1900×2130 | Material: | Stainless Steel |

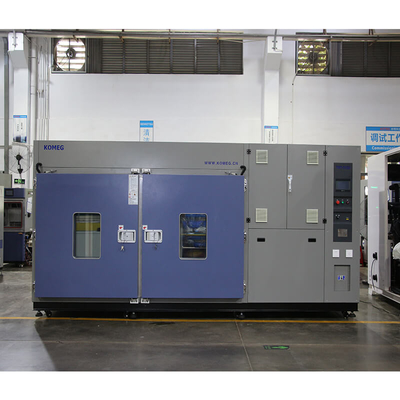

Horizontal Thermal Shock Test Chamber TST-512D
Features
Specification
| Model Number | TST-512D | |
| Test Zone Dimensions W×H×D(mm) | 800×800×800 | |
| External Dimensions W×H×D(mm) | 4600×1900×2130 | |
| Temperature Range | High Temperature Chamber | +60℃ ~ +200℃ |
| Low Temperature Chamber | 0 ~ -70℃ | |
| Heating Time | RT ~ +200℃: about 30min | |
| Cooling Time |
+20℃ ~ -70℃: within 60min(+25℃~ -60℃ within 60min) |
|
| Test Chamber | (D): -65℃ ~ +150℃ | |
| Temperature Shock Performance |
High temperature exposure:30min Transition time: ≤5min Low temperature exposure:30min |
|
| Temperature Fluctuation | ≤1℃ | |
| Temperature Uniformity | ≤2℃ | |
| Temperature Deviation | ≤±2℃ | |
| Test Basket Transfer Time | ≤10S | |
| Power | 78KW | |
Product Details

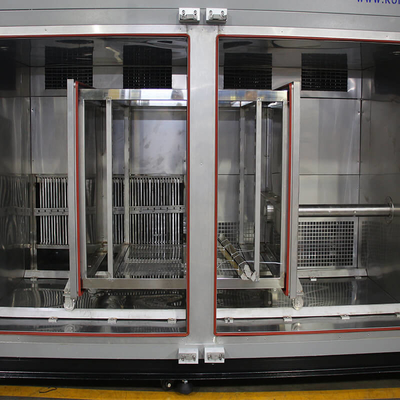

Thermal shock test chamber TST-512D is a custom product, which thermal shock structure is horizontal (left and right moving). This two zones horizontal thermal shock test chamber is mostly used in the automotive industry. You can also customize the three zones horizontal thermal shock test chamber: three test zones plus one or two baskets.
Standard thermal shock chambers: Thermal shock test chamber.pdf
