Application: | Indoor, Lab, Testing Center In LED Industry | Outer Design: | Inspection Glass Window |
---|---|---|---|
Conversion Time: | 3 Min | Internal Material: | Hone Finished Stainless Steel |
Insulation Material: | Rigid Polyurethane Foam And Glass Fiber Wool | Lead Time: | 35 Working Days |
High Light: | temperature shock test chamber,thermal shock chamber |

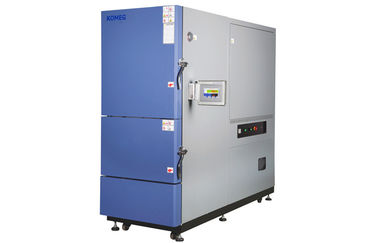

LCD Controller Bock Compressor 125L 2-zone Basket Type Thermal Shock Chamber
1. Applications:
1.1
Machine Summary:

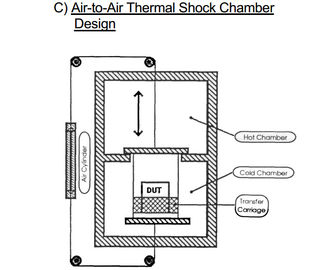

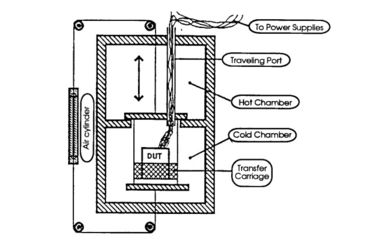

Environmental Thermal Shock test chamber used to test the change of material under extremely high temperature and extremely low temperature environment that continue alternation in the shortest time, Testing the chemical changes or physical damageof material caused by the thermal expansion and contraction. Testing box divided two parts, one is high-temperature region, another is low-temperature region, the testing sample placed on the moving basket, using unique heat storage and cool storage, the cylinder taking basket moves up and down in the hot and cold region to complete the hot and cold temperature impact testing; applied to test the material, including metal, plastic, rubber, electronics .... and other materials, it can be used as a basis for improvement of their products.
1.2 KOMEG offers several configurations of thermal shock chambers capable of meeting a wide variety of testing needs.
Vertical, two zone chamber has hot and cold zones that can be controlled independently.
Horizontal, three zone thermal shock chamber utilizes controlled areas for hot, ambient and cold temperatures.
Double duty thermal shock chambers from KOMEG are designed with hot zones above and below the cold zone and a two compartment product carrier that simultaneously moves products between the hot and cold zones.
2. Cold room controller
The storage temperature is displayed and controlled by the digital thermostat with which reliable storage is provided; modular cold room is a new product with various standard sizes. Its storage capacity may be specified or selected according to the requirements of the customer.
The precise control and adjustment of temperature enables the customers to achieve the utmost efficiency and benefits.
3. Cold room air cooler
Features of the air cooler are as following
1.This kind of air-cooler is specially designed for preservation, refrigeration
and cold room.
2.The shell is made of quality steel plate; sprayed plastic surface is
anti-corrosive, and its appearance is handsome.
3.Coiled pipes are mechanical expanding tubes in staggered arrangement;
therefore, copper tubes and aluminum sheets are combined closely.
4.Long-distance air supply ducts can be used.
4. Specifications
Model |
|
||||||
70D |
130D |
226D |
360D |
500D |
|||
Test weight(KG) |
5 |
5 |
5 |
5 |
10 |
||
Interior size |
W(mm) |
410 |
520 |
610 |
710 |
810 |
|
H(mm) |
560 |
670 |
770 |
830 |
710 |
||
D(mm) |
410 |
520 |
610 |
770 |
860 |
||
Basket size |
W(mm) |
300 |
410 |
510 |
610 |
710 |
|
H(mm) |
300 |
410 |
510 |
730 |
610 |
||
D(mm) |
300 |
410 |
510 |
510 |
730 |
||
Low Temp. chamber |
-70ºC~-10ºC |
||||||
Pre-cooling time |
+20ºC~-70ºC, Within 60 min |
||||||
Test. chamber |
-55ºC~+150ºC |
||||||
High Temp. chamber |
+60ºC~+200ºC |
||||||
Pre-heating time |
+60ºC~+200ºC ,Within 25 min |
||||||
Recovery time |
High-Temp Exposure 30 min |
||||||
Low-Temp Exposure 30 min |
|||||||
Recovery time within 3 min |
|||||||
Safety device |
No fuse breaker, over pressure, over heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection |
||||||
Standard accessory |
Cable port(portΦ50mm)*1, shelves*2 |
||||||
Interior material |
Stainless steel plate(SUS 304) |
||||||
Exterior material |
Baked painting steel or stainless steel(SUS304) |
||||||
Insulation material |
Rigid polyurethane Foam+glass fiber wool |
||||||
Refrigeration system |
Water Cooled |
||||||
Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23) |
|||||||
Controller |
Panel:7-inch LCD Touch panel, Chinese or English display selectable |
||||||
Operation model:Program or fix point running |
|||||||
Memory capacity:120programs,1200steps, all repeat 999cycles,part repeat 99 cycles. |
|||||||
Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit |
|||||||
Input:Temp.:pt-100 Humidity:pt-100 or ~5V DCV |
|||||||
Ambient Temp. |
+5ºC~+35ºC |
||||||
Power |
AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires |
||||||
Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
