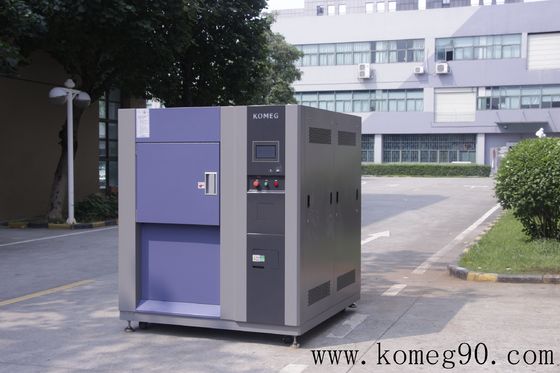

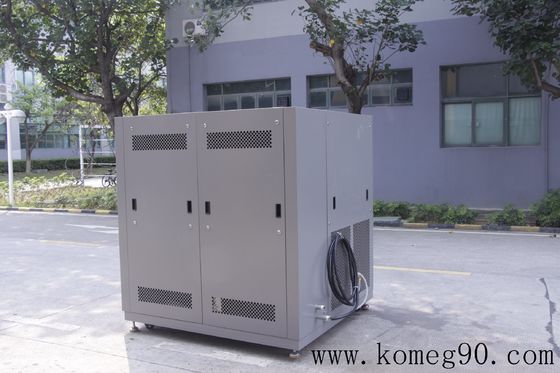

Accelerated Life Testing Thermal Shock Test Chamber , Environmental Shock Test Equipment

Thermal Shock Environmental Testing Chamber

1. Introduction of thermal shock chamber:

used to test the change of material under extremely high temperature and extremely low temperature environment that continue alternation in the shortest time,

Testing the chemical changes or physical damage of material caused by the thermal expansion and contraction. Testing box divided two parts, one is high-temperature region, another is low-temperature

region, the testing sample placed on the moving basket, using unique heat storage and cool storage,

the cylinder taking basket moves up and down in the hot and cold region to complete the hot and cold temperature impact testing; applied to test the material, including metal, plastic, rubber, electronics ....

and other materials, it can be used as a basis for improvement of their products.

Corresponding standard:

1 GB/T2423.1-1989 low-temperature testing method
2 GB/T2423.2-1989 high-temperature testing method
3 GB/T2423.22-1989 change temperature test
4 GJB150.5-86 temperature impact test
5 GJB360.7-87 temperature impact test
6 GJB367.2-87 405 temperature impact test

1.3 KOMEG offers several configurations of thermal shock chambers capable of meeting a wide variety of testing needs.
Vertical, two zone chamber has hot and cold zones that can be controlled independently.
Horizontal, three zone thermal shock chamber utilizes controlled areas for hot, ambient and cold temperatures.
Double duty thermal shock chambers from KOMEG are designed with hot zones above and below the cold zone and a two compartment product carrier that simultaneously moves products between the hot and cold zones.

2. More Info About KOMEG's Products You Need to Know

• Thermal Shock Environmtntal Testing Chamber is divided into three sections: the high temperature chamber, the low temperature chamber and the testing chamber.
• The color touch panel control system was made in Japan can display Chinese / English. The big size liquid-crystal LCD has been adopted.
• High formula memory capacity may be set to 120 patterns. The maximum cycle setting is 9999cycles. The maximum setting of each section is 999 Hrs 59 Mins.
• Provide with RS-232C communication interface device, capable of controlling / editing/ recording in the linkage with the computer and two set dynamic connection point and convenient application.
• Both 2 zone and 3 zone shocks can be chosen.
• All equipment is fully automatic, and all process are precisely controlled with P.L.C.’S.
• Of any part of the malfunctions, the machine will automatically shuts down and a warning light switches on.
• Machine can be shut down automatically in case of electrical power instabilities.

3. Why KOMEG Will Be Your Best Choice?

 The controller system features:

 Centralized controller, recorder, computer triad controller;

 1. Provide USB port, R485 interface, USB download;

 2. Large capacity may save 13450 segments, with super long running of 530 hours each segments.

 3. Program loop can be 32000 times, tiny loop 32000 times;

 4. Large built-in storage, can store 90 - day calendar data, historical curve (when the sample is 1 min)

 5. Support English, Chinese and so on.

4. Specifications

5. About thermal shock test chamber:

6.Tradeshow
