Product Details:
Payment & Shipping Terms:
|
| Types Of KOMEG Brand Climatic Chambers: | Test Conditions Satisfied | Ultralow Temperature Test Chamber: | Extreme Temperatures |
|---|---|---|---|
| Thermal Shock Test Chambers/ESS Rapid-rate Temp Change Chamber: | Sudden And Extreme Temperature Variations | Humidity Chambers: | Moisture Or Relative Humidity |
| Solar/Led Test Chamber: | Custom Made | Certification: | CE Certified |
| Material: | Stainless Steel | Warranty: | 1year |
| High Light: | Climatic Testing Chamber,Environmental Test Chamber |
||
Standard and Customized reliability Environmental test chamber for solar modules
Why Choose KOMEG?
Being a first-class supplier and reliable partner, we are certified to ISO 9001 and got CE approval for all our products. All equipment are 7 x 24 hours tested before delivery. That explains why Komeg is the private brand of choice for many well-known brand enterprises, and also one of the very few designated suppliers who were recognized by many top 500 enterprises. Let Komeg's 26 years of professional experience work for you too.
Benefits more than you can get from other supplier:
1)Delicate touch and excellent user experience
2)Unique and compact design, top grade appearance, stable performance and easy operation.
3)Can simulate a wide range of temperature and humidity environments
4)Capable of testing large components, assemblies, and finished products
5)Customized sizes and configurations available
6)1 year warranties
The technical parameter is as the following:
CE Certified Programmable Climatic Test Chamber with stable performance
| Environmental Temperature and Humidity Chamber | ||||
| Secifications ( at +20ºC room temp. Or+25ºC water temp with empty load) | ||||
| Model | KMH-R series | KMH-L series | KMH-S series | |
| 64R | 64L | 64S | ||
| Temp. range | -20ºC~150ºC | -40 ºC~+150ºC | -70ºC~+150ºC | |
| Interior sizel | W(mm) | 400 | 400 | 400 |
| H(mm) | 400 | 400 | 400 | |
| D(mm) | 400 | 400 | 400 | |
| Exterior size | W(mm) | 600 | 600 | 600 |
| H(mm) | 1526 | 1526 | 1526 | |
| D(mm) | 1200 | 1200 | 1200 | |
| Power(KW) | 4.5 | 4.5 | 4.5 | |
| Weight(KG) | 150 | 150 | 150 | |
| Humidity uniformity | ±3.0%R.H | ±3.0%R.H | ±3.0%R.H | |
| Heat up time | -20ºC~+100ºC,within 35 min | -40ºC~+100ºC, within 45 min | -70ºC~+100ºC,within 60 min | |
| Pull down time | +20ºC~-20ºC, within 45 min | +20ºC~-40ºC , within 60 min | +20ºC~-70ºC,within 80 min | |
| Standard accessories | Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m | |||
| Safety device (standard) | No fuse breaker, over pressureover heat and over current protection for compressor, | |||
| Over temp. protect, over load protect of blower, dry heat protection | ||||
| Control System | Balanced Temperature & Humidity Control System | |||
| Refrigeration system | Air Cooled (Water Cooled Type is option) | |||
| Hermetic compressor,Single stage refrigeration system | ||||
| CFC-Free refrigerant(HFC-507/HFC-23) | ||||
| Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable | |||
| Operation model :Program or fix point running | ||||
| Memory capacity :120programs,1200steps, | ||||
| All repeat 999 cycles, part repeat 99 cycles | ||||
| Humidity Range | 20~98%R.H | |||
| Temp. constancy | ±0.5ºC | |||
| Humidity constancy | ±2.5%R.H | |||
| Temp. uniformity | ±2.0ºC | |||
| Interior material | Stainless Steel Plate(SUS 304) | |||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||
| Ambient Temp. | +5ºC~+35ºC | |||
| Wiring method | AC 380±10%50Hz ,3 phase 4 wires +Ground Wires | |||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
||||
Features:
a. High-quality appearance, the body adopted an arc shape, surface automobile coating technology processing, and mechanical explosion-proof handle, easy to operate, safe and reliable.
b. Rectangular multi-layer glass View window, the use of guinea pigs observed in the test window with anti-sweat heaters device prevents water gas condensate, knot, water droplets, LED lamps to keep the inside lighting.
c. Door frame with airtight packing, can be effectively isolated from the internal temperature of the leak
d. With external water supply system, convenient to supplement the cylinder water supply, and automatic recovery using.
e. Compressor cycling system used France “Tecumseh” brand which can effectively remove condenser pipe and between capillary Lubricating oil and whole series adopt environmental protection refrigerant (R23, R404, R507)
f. Controller uses the imported LCD display screen, can display measured values (PV) and setting values (SV) time
g. Controller with multi-segment program editor and temperature and humidity can be fast (QUICK) or slope (SLOP) controlled.
h. Built-in mobile wheels allow easy movement and placed, with a strong positioning screw position.
Standard Met and Implemented:
GB/Bb T2423.2-89 high temperature test method
GB2423.1-89 test A: low temperature test method 6
GJB150.4-1986 test at low temperature
IEC60068-2-1 low temperature test method
IEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature
MIL - STD - 202G - 103B humidity test
IEC60068-2-30 humidity temperature cycle
GB/T2423.3 constant humidity heat test method
Besides this chamber, we also supply Walk-in Constant Temperature and Humidity Chamber, Solar panel test chamber, 3-zone thermal shock chamber, 2- zone thermal shock chamber, Rapid Temperature Change Chamber, High and Low Temperature Altitude Test Chamber, Temperature/ Humidity /Vibration three integrated Chamber, . Precising Drying Test Chamber, Vacuum oven / No oxidation Oven, Air Exchange Type Aging Oven, Burn-in Room, Salt spray Chamber, Two wings Drop tester, Vibration Testing Machine

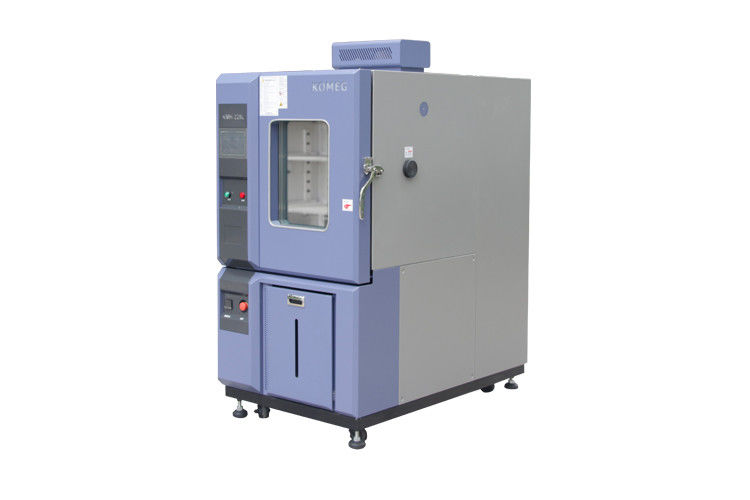

Product pictures
