Product Details:
Payment & Shipping Terms:
|
| Product Name: | Repid Temp Change Chamber | Application: | Reliability Testing, Research & Development Testing, Failure Analysis |
|---|---|---|---|
| Working Chamber Volume: | 5000L | Power Source: | AC380V |
| Cooling Mode: | Water Cooled | Compressor: | Semi-Hermetic Compressor |
| Heater: | Iron-chrome Wire Heater | Controllor: | Touch Screen Programmable Controllor |
| Testing: | Reliability Test | ||
| High Light: | environmental testing chambers,Thermal Shock Test Chamber |
||

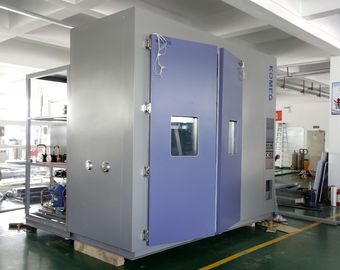

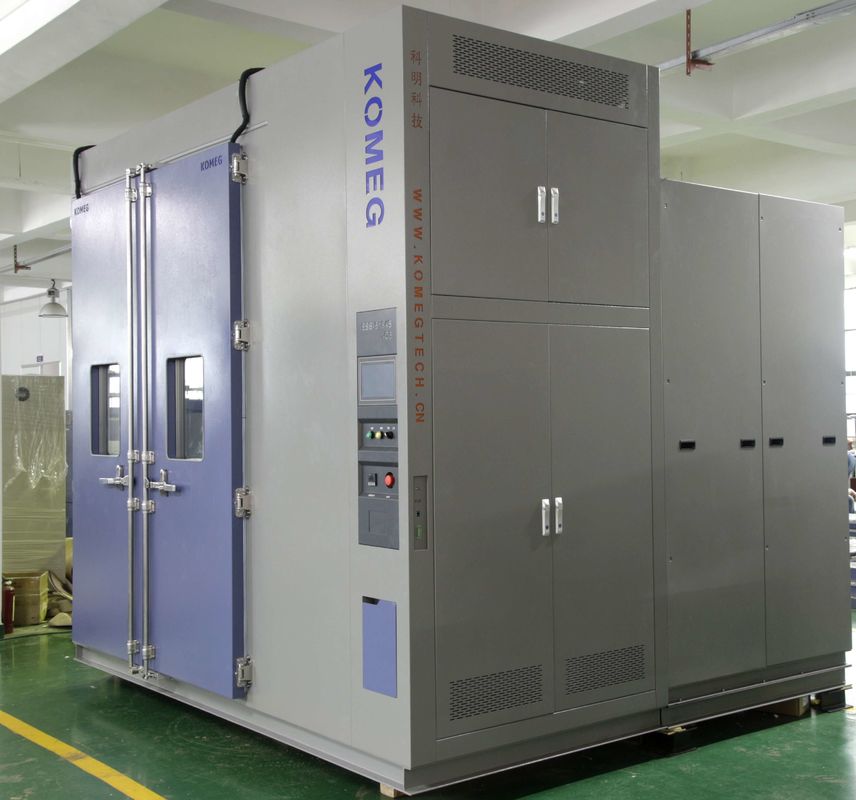

5000L Environmental Stress Screening ESS Chamber
1. Advantages of Temperature Cycling:
Rapid temperature test chamber
The product is suitable for electronic elements of safety performance test provide reliability test, rapid temperature test box product screening test, etc., at the same time, through this equipment test, can improve the reliability of products and product quality control.
2. Standards Implemented and Met
1. GB11158 temperature Chambers technical conditions
2. GB10589-89 Chambers cryogenic technology
3. GB10592-89 Chambers technology high and low temperature conditions
4. GB/T2423.1-2001 hypothermia Chambers Test Method
5. GB/T2423.2-2001 temperature changes Test Method
6. GB/T2423.3-93 hot and humid Chambers Test Method
7. GB/T2423.4-93 alternating temperature testing machine
8. GB/T2423.22-2001 temperature testing method
9. IEC60068-2-1.1990 low temperature Chambers Test Method
10. IEC60068-2-2.1974 high temperature Chambers Test Method
11. GJB150.3 High Temperature Test
12. GJB150.4 Low Temperature Test
13. GJB150.9 Damp Heat Test
3. Specifications
| Model | ESS-SL |
| 1000SL15 | |
| Working Chamber Volume(L) | 1000L |
| Temp Rate of Change( ºC /Min) | 15 ºC /Min |
| Temperature Range | -70 ºC～+100 ºC( Rapid Temp Change -55 ºC～+85 ºC Full Linear Control) |
| Humidity Constancy | ±0.5 ºC |
| Temp Constancy | ±3.0 ºC |
| Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel |
| Interior Material | Stainless Steel Plate(SUS 304) |
| Insulation Material | Rigid Polyurethane Foam |
| Safety Devices | over pressure,over heat and over current protection for compressor, over temp. protection, |
| Compressor | Semi-Hermetic Compressor |
| Cooling Mode | Water Cooled |
| Control system | Balanced Temperature & Humidity Control System(BTC type) |
| Heater | Iron-chrome wire heater |
| Blower | Centrifugal Blower |
| Observation Window | Glass incorporating heat generator |
| Temp Sensor | Pt-100 |
| Controller | Touch screen programmable controller |
| Ambient Temp. | +5ºC~+35ºC |
| Power | AC 380V/50Hz 3phase 5 wires+ Ground wire |
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |
4. Applications:
4.1 A. Who want his products more reliable in different environmental conditions
B. Who plan to make the world a better place with his high quality and reliability products
4.2 Location: Lab, testing center,
4.3 Note:
Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spare parts, particularly applies to environmental stress screening test(ESS)
5. Material:
Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
