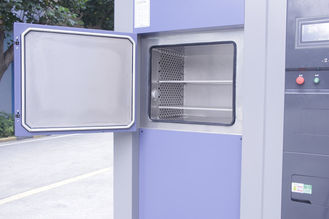

3-zone Environmental Thermal Shock Chamber with high Performance Capacity

3-zone Environmental Thermal Shock Chamber with high Performance Capacity
3-zone Environmental Thermal Shock Chamber with high Performance Capacity
video play

Large Image :  3-zone Environmental Thermal Shock Chamber with high Performance Capacity

Product Details:
Place of Origin: Guangdong, China
Brand Name: KOMEG
Certification: CE
Model Number: KTS-72A
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece Thermal Shock test Chamber
Price: Negotiation
Packaging Details: Strong Plywood Case, Meet International Standard
Delivery Time: 50 days upon your deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pieces a year
Contact Now
Detailed Product Description
Products Name: 3-zone Thermal Shock Tester Volume: 72L
Test. Chamber: -40 °C~ +150°C Interior Material: Stainless Steel Plate (SUS304)
Exterior Material: Baked Painting Steel Insulation Material: Rigid Polyurethane Foam+glass Fibre Wool
Controller: LCD Touch Panel Power: AC 380±10%50Hz
High Light:

temperature shock test chamber

,

thermal shock chamber

3-zone Environmental Thermal Shock Testing Chamber with high Performance Capacity

KOMEG specification for KTS-500B.pdf



3-zone Environmental Thermal Shock Chamber with high Performance Capacity 0





1. Application:



KOMEG thermal shock chambers meet the demands of today's environmental stress screening with proven performance in installations around the world. Our direct transfer method between hot and cold is an economical method to achieve rapid part temperature change for ESS or thermal shock.



Thermal shock test chamber is requisite testing equipment in metal, plastic, rubber, electronics and other industries. It is used for testing the material structure or composite material’s tolerance degree when exposed instantly in extremely high temperature and extremely low temperature environment continuously, so that whose chemical or physical damage due to thermal expansion and contraction can be detected in shortest time.





Standards Met and Implemented:


GB/T2423.1.2
GB10592-89
GJB150



2. Specifications:



3 Zone Thermal Shock Test Chamber
Specifications Note:1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available
Model KTS-A Series
72A 100A 150A 200A 252A 300A 480A
Interior size W(mm) 450 500 600 670 700 800 800
H(mm) 400 450 500 600 600 600 800
D(mm) 400 450 500 500 600 650 750
Exterior size W(mm) 1490 1540 1640 1720 1750 1850 1850
H(mm) 1790 1840 1890 2000 2000 2000 2200
D(mm) 1600 1700 1830 1850 1930 1980 2500
Test weight(KG) 5 10 12 15 18 20 20
Low Temp. chamber -55ºC~-10ºC
Pre-heat time +20ºC~-55ºC ,Within 60 min
Test. chamber -40ºC~+150ºC
High Temp. chamber +60ºC~+200ºC
Pre-heat time +60ºC~+200ºC ,Within 20 min
Recovery time High-Temp Exposure 30 min
Low-Temp Exposure 30 min
Recovery time within 5 min
Safety device No fuse breaker, over pressureover heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection
Standard accessory Cable port(portΦ50mm)*1, shelves*2
Interior material Stainless steel plate(SUS 304)
Exterior material Baked painting steel or stainless steel(SUS304)
Insulation material Rigid polyurethane Foam+glass fiber wool
Refrigeration system Water Cooled
Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23)
Controller Panel:7-inch LCD Touch panel,Chinese or English display selectable
Operation model:Program or fix point running
Memory capacity:120programs,1200steps,all repeat 999cycles,part repeat 99 cycles.
Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input:Temp.:pt-100 Humidity:pt-100 or ~5V DCV
Ambient Temp. +5ºC~+35ºC
Power AC 380±10%50Hz ,3 phase 4 wires +Ground Wires



3 Zone Thermal Shock Test Chamber
Specifications

Note:1. We reserve the right to change specifications without prior notice

2. Customized sizes and configurations available
Model KTS-B Series
72B 100B 150B 200B 252B 300B 480B
Interior size W(mm) 450 500 600 670 700 800 800
H(mm) 400 450 500 600 600 600 800
D(mm) 400 450 500 500 600 650 750
Exterior size W(mm) 1490 1540 1640 1720 1750 1850 1850
H(mm) 1790 1840 1890 2000 2000 2000 2200
D(mm) 1600 1700 1830 1850 1930 1980 2500
Test weight(KG) 5 10 12 15 18 20 20
Low Temp. chamber -70ºC~-10ºC
Pre-heat time +20ºC~-70ºC ,Within 60 min
Test. chamber -55ºC~+150ºC
High Temp. chamber +60ºC~+200ºC
Pre-heat time +60ºC~+200ºC ,Within 20 min
Recovery time High-Temp Exposure 30 min
Low-Temp Exposure 30 min
Recovery time within 5 min
Safety device No fuse breaker, over pressureover heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection
Standard accessory Cable port(portΦ50mm)*1, shelves*2
Interior material Stainless steel plate(SUS 304)
Exterior material Baked painting steel or stainless steel(SUS304)
Insulation material Rigid polyurethane Foam+glass fiber wool
Refrigeration system Water Cooled
Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23)
Controller Panel:7-inch LCD Touch panel,Chinese or English display selectable
Operation model:Program or fix point running
Memory capacity:120programs,1200steps,all repeat 999cycles,part repeat 99 cycles.
Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input:Temp.:pt-100 Humidity:pt-100 or ~5V DCV
Ambient Temp. +5ºC~+35ºC
Power AC 380±10%50Hz ,3 phase 4 wires +Ground Wires





3 Zone Thermal Shock Test Chamber
Specifications Note:1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available
Model KTS-D Series
72D 100D 150D 200D 252D 300D
Interior size W(mm) 450 500 600 670 700 800
H(mm) 400 450 500 600 600 600
D(mm) 400 450 500 500 600 650
Exterior size W(mm) 1490 1540 1640 1720 1750 1850
H(mm) 1790 1840 1890 2000 2000 2000
D(mm) 1600 1700 1830 1850 1930 1980
Test weight(KG) 5 10 12 15 18 20
Low Temp. chamber -80ºC~-10ºC
Pre-heat time +20ºC~-80ºC ,Within 60 mins
Test. chamber -65ºC~+150ºC
High Temp. chamber +60ºC~+200ºC
Pre-heat time +60ºC~+200ºC ,Within 20 min
Recovery time High-Temp Exposure 30 min
Low-Temp Exposure 30 min
Recovery time within 5 min
Safety device No fuse breaker, over pressureover heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection
Standard accessory Cable port(portΦ50mm)*1, shelves*2
Interior material Stainless steel plate(SUS 304)
Exterior material Baked painting steel or stainless steel(SUS304)
Insulation material Rigid polyurethane Foam+glass fiber wool
Refrigeration system Water Cooled
Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23)
Controller Panel:7-inch LCD Touch panel,Chinese or English display selectable
Operation model:Program or fix point running
Memory capacity:120programs,1200steps,all repeat 999cycles,part repeat 99 cycles.
Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input:Temp.:pt-100 Humidity:pt-100 or ~5V DCV
Ambient Temp. +5ºC~+35ºC
Power AC 380±10%50Hz ,3 phase 4 wires +Ground Wires





3. Thermal Shock Test Chamber Features



1.3-zone design: high temperature zone, cold temperature zone, and testing zone.
2.The test specimens under test are stationary in the testing zone.
3.Touch-control operation interface for ease of use.
4.Max.999H and max.9999 cycles for high or low temperature shock for thermal shock test chamber.
5.Automatic cycling shock or/and manual selective shock are available.
6.Water cooled, binary cooling system for quick cooling effect.
7.Japan imported Seamless Welding Machine, especially for copper pipe welding


4. About 3 zone Thermal Shock Test Chambar

3-zone Environmental Thermal Shock Chamber with high Performance Capacity 1


3-zone Environmental Thermal Shock Chamber with high Performance Capacity 2


3-zone Environmental Thermal Shock Chamber with high Performance Capacity 3

3-zone Environmental Thermal Shock Chamber with high Performance Capacity 4


5.Tradeshow

3-zone Environmental Thermal Shock Chamber with high Performance Capacity 5


6. Packaging:



Climatic thermal shock test chamber are covered with air bubble film before put them into the strong plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.



3-zone Environmental Thermal Shock Chamber with high Performance Capacity 6

3-zone Environmental Thermal Shock Chamber with high Performance Capacity 7
