Economical Salt Spray Environmental Test Chamber For Corrosion Resistance



Salt Spray Test is a standardized and popular corrosion test method, used to check corrosion resistance of materials and surface coatings.

Usually, the materials to be tested are metallic and finished with a surface coating which is intended to provide a degree of corrosion protection to the underlying metal.



Design standard



CNS: 3627, 3385, 4159, 7669, 8886.

JIS: D0201, H8502, H8610, K5400, Z2371.

ISO: 3768, 3769, 3770.

ASTM: 8117, B268.





Specifications:



Specifications (Note: We reserve the right to change specifications without prior notice)
Model	HL-160-NS	HL-120-BS	HL-90-BS	HL-60-SS
Interior dimensions(W*H*D)mm	1600 X 500 X 1000	1200 X 500 X 800	900 X 500 X 600	600 X 400 X 450
Exterior dimensions(W*H*D)mm	2240 X 1500 X 1600	1410 X 1280 X 880	1460 X 1280 X 910	1130 X 1070 X 630
Testspace Volume(L)	800	480	270	108
Salt Water Tank Volume (L)	60	40	25	15
Heater	15KW+1KW	11KW+1KW	7KW+0.75KW	3KW+0.75KW
Air compressor	2HP	2HP	1/2HP	1/2HP
Temp. range (Testing barrel)	35±1℃～50±1℃
Temp. range (Pressure barrel)	47±1℃～63±1℃
Test applicable	NSS, ACSS,CASS,CORK
Pressed Air Pressure	1.00±0.01kgf/cm²
Spray Amount	1.0~2.0ml/80cm²/h(Collect at least 16 hours, take the average)
Ambient Relative Humidity	More than 85%R.H.
PH Value	6.5~7.2 3.0~3.2
Spraying Manner	Programmable Spraying
Power	AC220V 1Φ 50Hz

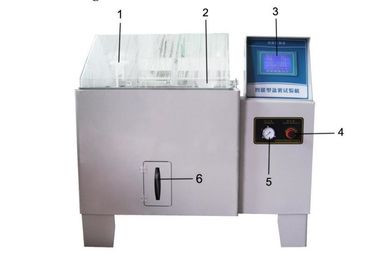

Structure(figure1)



Instruction:



(1) Spray tower



(2) Funnel cup



(3) Touch screen controller



(4) Regulator



(5) Pressure gauge



(6) Metering cylinder



Controller(figure 2)





Controller instruction:



(1)Chamber real-time temperature



(2)Chamber temperature setting



(3)Actual test time



(4)Test time setting



(5)Accumulative time



(6)Power swithch



(7)Machine start/stop working button



(8)Spray start/pause button



(9)Test chamber low water alarm



(10)Defog after test



(11)Salt water tank low water alarm



(12)Reduce setting value



(13)Increase setting value



(14)Pressure barrel low water alarm



(15)Non-spray time setting



(16)Spray time setting



(17)Pressure barrel temperature setting



(18)Pressure barrel real-time temperature





Control system:



Test chamber temperature control: Control the chamber temperature , according to standard, NSS AASS test is 35℃,and CASS test is 50℃.



Pressure barrel temperature control:Control the saturated air barrel temperature, NSS AASS is 47℃,CASS test is 63℃.



NSS AASS Test:Chamber temperature set 35℃, Pressure barrel temperature set in 47℃(40℃-50℃).



CASS test :Chamber tember temperature set 50℃, Pressure barrel temperature set 63℃(60℃-70℃).



Power switch:Control the whole machine power. Long press for power on or off.



Start/stop switch:Control the heating system of test chamber, heat sink and Pressure barrel.

Spray/pause switch:control the spray system.



Defog switch:control defog system, clear the salt mist in chamber after test.



Test chamber low water alarm:When the water level is low, the light will flicker . Add pure water into the test chamber until the light doesn^,t flicker.



Salt water tank low water alarm:When the salt water level is low, the light will flicker.Add salt water into the salt water tank until the light doesn^,t flicker.



Pressure barrel low water alarm:When the water level is low, the light will flicker.Add pure water into the pressure barrel nutil the light doesn^,t flicker.





Illustration on the back of the salt spray tester
