Product Details:
Payment & Shipping Terms:
|
Exterior Material: | Baked Painting Steel | Interior Material: | Stainless Steel |
---|---|---|---|
Pressure Range: | Constant Voltage~0.5kPa | Application: | Steady And Transient State Testing |
Temp Range: | -40℃ ~ +100℃ | Cooling Mode: | Water Cooled |
High Light: | altitude testing chamber,portable altitude chamber |

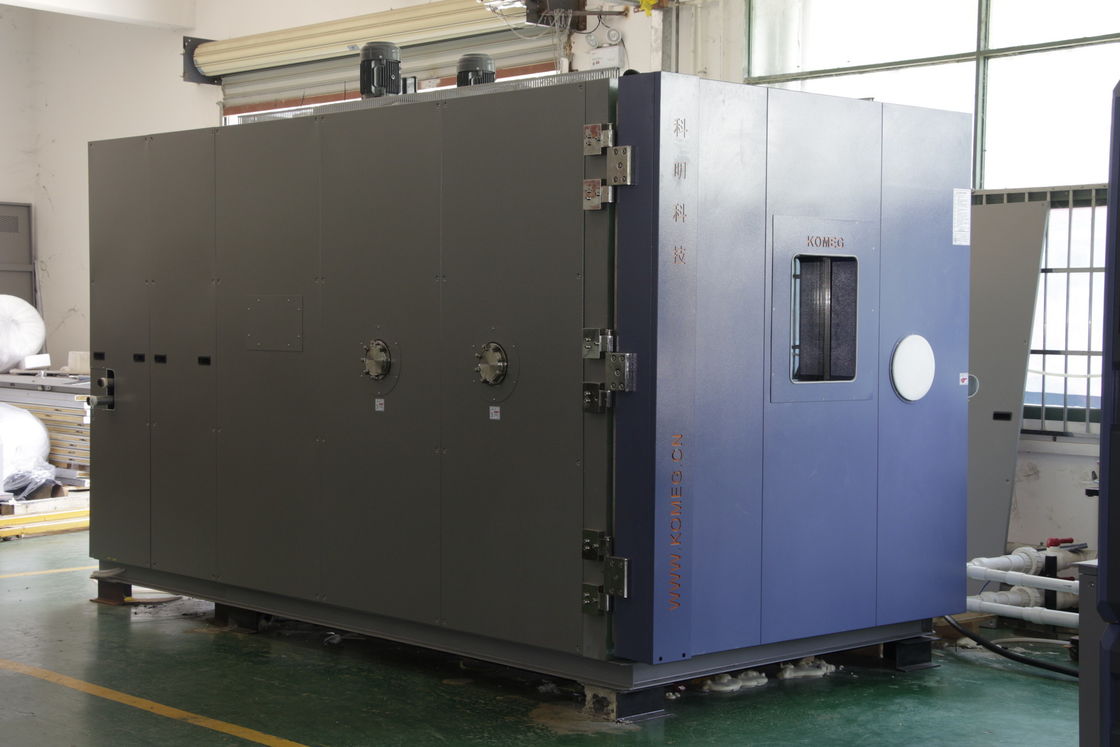

Monolithic door left open 4500L large temperature attitude testing chamber
Applications
High Altitude Low Voltage Test Chamber Simulated Environmental Test Chamber is mainly used in
aviation, aerospace, electronic, national defense, scientific research and other industrial sectors to
determine electrical and electronic products (including the components, materials and instruments) in
high and low temperature depression under the action of single and at the same time, storage transport,
reliability test, and at the same time try to product electricity electric performance parameters of the test,
the sample (s) to under the condition of a given environment behavior performance.
Prouduct Specifications
Model | KU-4500L | ||||
Inner Size (D*W*H)mm | W150*H174*D173 | ||||
Performance | Temp range | -40℃~+100℃ | |||
Temp constancy | ±0.5% | ||||
Temp deviation | <100℃, ±2.0℃(at constant pressure with empty load) | ||||
Cooling rate | 0.7℃~1.0℃/min(Overall average) | ||||
Pressure range | Constant pressure ~1kPa | ||||
Pressure constancy | When ~ 0.5kPa, | ||||
Depressurization rate | Constant pressure~1kPa≤30mins(Normal temp) | ||||
Pressure recovery rate | 10kPa/Min(adjustable) | ||||
Material | Exterior material | Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate | |||
Interior material | Stainless steel(SUS304) | ||||
Pressurized parts | High quality steel plate(Rust proof & Plastic spray treated) | ||||
Insulation material | High quality glass wool | ||||
Cooling System | Compressor | Semi-Hermetic Compressor | |||
Cooling Mode | Water cooled | ||||
Temp regulating method | Balanced Temperature & Humidity Control System (BTHC) | ||||
Pump | Rotary vane type vacuum pump | ||||
Heater | Iron-chrome wire heater | ||||
Sight window | Circular viewing glass incorporating heat generator | ||||
Temp Sensor | Pt-100 | ||||
Controller | Touch Screen Controller | ||||
Safety Devices | Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm | ||||
Standard Accessory | Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2 | ||||
Power | AC380V/50Hz, 3Phase 5 wires+ Ground Wire. | ||||
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
Environmental test chamber Standard
Prouduct Display
Packing and Shipment:
After-sale Service:
If you face any problems in future during testing process we promise we will give you a reply within 48
hours and solution provide within 3 working days. We can offer operation video and English operation
muanual. We can provide video-conference. If customers require on-site service, the transport and travel
expense shall be borne by customer.
