Explosion Proof High And Low Temperature Test Chamber For Electronic Components Power Battery

Explosion Proof High And Low Temperature Test Chamber For Electronic Components Power Battery
Explosion Proof High And Low Temperature Test Chamber For Electronic Components Power Battery Explosion Proof High And Low Temperature Test Chamber For Electronic Components Power Battery Explosion Proof High And Low Temperature Test Chamber For Electronic Components Power Battery Explosion Proof High And Low Temperature Test Chamber For Electronic Components Power Battery Explosion Proof High And Low Temperature Test Chamber For Electronic Components Power Battery

Large Image :  Explosion Proof High And Low Temperature Test Chamber For Electronic Components Power Battery

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: KOMEG
Certification: CE; ISO 9001; ISO 14001
Model Number: KMH for explosion proof

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with pp film, then put into strong wooden case with operation man.
Delivery Time: 30 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 per month
Detailed Product Description
Volume: 36L~8000L Temp.range: -70°C~+150°C
System: Balanced&Humidity Control System Warranty: 1 Year
High Light:

high temperature test chamber

,

low temperature test chamber

Power battery high and low temperature explosion proof testing chamber









Introducion:





Reliability test for prouduct

Power battery high and low temperature explosion proof testing chamber can simulate an environment and create effects in a range of temperature and humidity coditions for the purpose of testing the reliability of a prouduct or material. Widely used in Automotive industry such as ECU/electric part, PCU/inverter, Alternator/ISG, Moter or other Vehicle Components.Besides,it is suitable for high temperature testing of power batteries,electronics,machinery and other products,components and materials under simulated temperature changes.





Explosion Proof High And Low Temperature Test Chamber For Electronic Components Power Battery 0

Make your own chamber with a variety of options

Extended choice of options fitted to your testing. Select your chamber from the door, refrigeration system, instrumentation, size ! Order only what you need.



Explosion Proof High And Low Temperature Test Chamber For Electronic Components Power Battery 1



Technical parameter:



Model KMH-Series for explosion proof
150R 225R 408R 800R 1000R 150L 225L 408L 800L 1000L 225S 408S 800S 1000S
System Balanced & Humidity Control System
Temp.Range -20℃~150℃ -40 ℃~+150℃ -70℃~+150℃
Humidity Range 20~98%R.H
Temp.constancy ±0.5℃
Humidity constancy ±2.5%R.H
Temp.uniformity ±2.0℃
Humidity uniformity ±3.0%R.H ±5.0%R.H ±3.0%R.H ±5.0%R.H ±3.0%R.H ±5.0%R.H
Heat up time -20℃~+100℃ Within 35 mins -40℃~+100℃ Within 45 mins -70℃~+100℃ Within 60 min
Pull down time +20℃~-20℃ Within 45 mins +20℃~-40℃ Within 60 mins +20℃~-70℃ Within 75 mins

Interrior material(CM)
W 60 70 70 100 100 60 70 70 100 100 70 70 100 100
H 60 70 75 100 100 60 70 75 100 100 70 75 100 100
D 46 48 80 800 100 46 48 80 800 100 48 80 800 100

Exterrior material(CM)
W 88 98 98 128 128 100 100 110 150 150 100 110 150 150
H 173 189 194 216 216 160 175 185 200 200 175 185 200 200
D 140 146 174 175 195 98 108 128 128 148 108 128 128 148
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Refrigeration system Air Cooled( Water Cooled Type is option)
Hermetic compresssor, refrigeration system

Hermetic Compressor,Cascsde Refrigeration CFC free refrigerant

(HFC-507/HFC-23)

Controllor LCD Toch panel,Chinese or English display selectabile
Operation model /Program or fix point rinning
Memory capacity ,120programs,1200steps,all repeat999cycles,part 99 cycless.
PID Parameter 9set
Accuracy /Temp.:0.1%of F.S±1 dight
Input /Temp.:Pt-100/Humidity:Pt-100or1~5VDCV
Comm.Port RS-232C or RS-485 (Software is option)
Safety Devices No fuse breaker,over pressure,over heat and over current protectors for compressor,over temp.protector,over load protectorof fan,dry heat pr techto
Standard Accessories Sightwindow*1,cable port(portΦ50mm)*1,shelves*2,chamberlamp*1,power cable 2m
Weight(Kg) 240 280 400 500 580 250 300 420 530 600 330 450 550 650
Ambient Temp. -5℃~+35℃
POEWR AC 380±10% 50Hz 3 phase 4 wires+Groud Wires

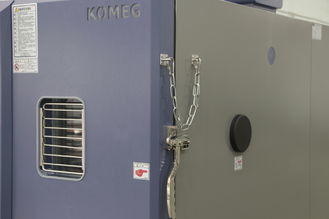

Explosive pressure relief device

when the pressure in the equipment or pipeline exceeds the safety valve pressure relief automatically open equipped with:Bursting disc,protective cover,sensor switch,exhaust fan function:

a.When the test items in the box explode,there is a pressure release pipe

b.Protect the test equipment from sudden air pressure damage

c.Protecting people

Ventilator When the pressure in the tank exceeds the pressure of the safety valve and opens the pressure relief valve,the exhaust fan is automatically turned on.









FAQ:

Q1 : Can you customize the product?

A: Yes, we can customize any products according to requirements.



Q2 : How to choose the most suitable products?

A: Our professional team will give you the best suggestion, just be patiently to tell us the information about the parameters your required.



Q3 : Can you arrange installations and commissioning in our lab?

A: Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate;

Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it;

Thirdly, some of customized chambers we should to install and teach your team to operate.
