Application: | Laboratory, Testing Center, Production Line | Internal Volume: | 225L |
---|---|---|---|
Interior Material: | SUS 304 Stainless Steel Plate | Exterior Material: | Baked Painting Steel Or Stainless Steel |
Warranty: | 12 Months Free Parts Warranty | Lead Time: | 60 Working Days Upon The Deposit |
Trade Terms: | EXW, FOB, CIF, DDU, DDP | H.S. Code: | 9032100000 |
High Light: | temperature and humidity chamber,temperature test chamber |
2017 Russia Temperature Humidity And Vibration Three Integrated Environmental Testing Labs

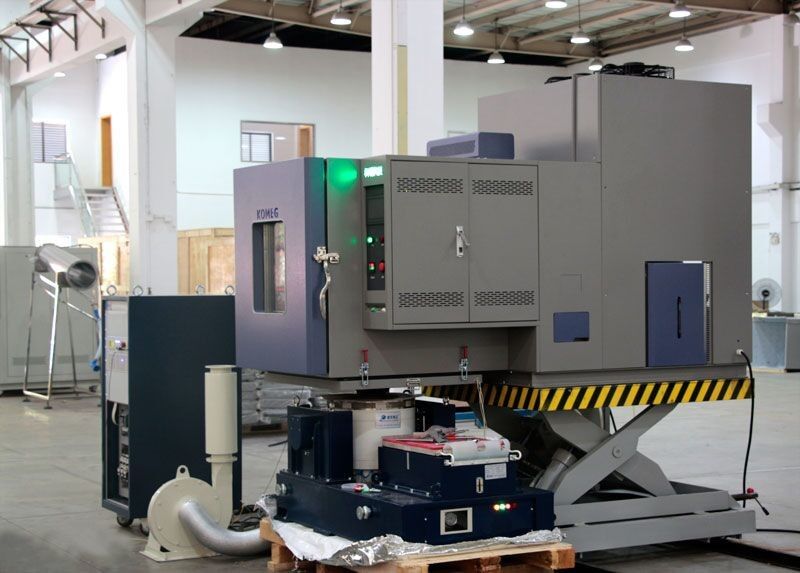

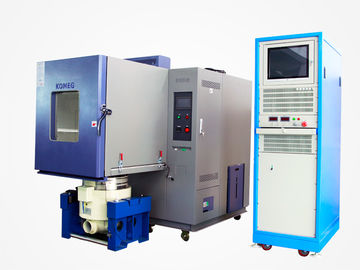

KMH-225L Temperature Humidity and Vibration three integrated Test Chamber
With precise temperature and humidity control system, this equipment provides variety of environmental simulate conditions that industrial research and biological test need. It is used in medicine, textile and food production experiment, as well as in product stability, raw material, packing and lifetime test.
Model |
KMH-36L(Benchtop) | KMH-64 series | |||
64 R | 64 L | 64 S | |||
Temp. range | -40°C ~150°C | -20°C ~150°C | -40°C ~150°C | -70°C ~150°C | |
Interior size | W(mm) | 300 | 400 | 400 | 400 |
H(mm) | 400 | 400 | 400 | 400 | |
D(mm) | 300 | 400 | 400 | 400 | |
Exterior size | W(mm) | 460 | 600 | 600 | 600 |
H(mm) | 780 | 1526 | 1526 | 1526 | |
D(mm) | 1002 | 1200 | 1200 | 1200 | |
Power(KW) | 5.8 | 5.8 | 5.8 | ||
Weight(KG) | 300 | 300 | 300 |
(1) KMH-R series
Model | KMH-R series | |||||
150R | 225R | 408R | 800R | 1000R | ||
Temp. range | -20°C ~150°C | |||||
Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
D(mm) | 460 | 480 | 800 | 800 | 1000 | |
Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
Weight(KG) | 240 | 280 | 400 | 500 | 580 | |
Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ||||
Heat up time | -20°C ~+100°C ,within 35 min | |||||
Pull down time | +20°C ~-20°C , within 45 min | |||||
Humidity Range | 20~98%R.H | |||||
Temp. constancy | ±0.5ºC | |||||
Humidity constancy | ±2.5%R.H | |||||
Temp. uniformity | ±2.0ºC | |||||
Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
Interior material | Stainless Steel Plate(SUS 304) | |||||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
Ambient Temp. | +5°C ~+35°C | |||||
Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires | |||||
Controller | LCD Touch Screen, Chinese or English display selectable | |||||
Operation model :Program or fix point running | ||||||
Memory capacity :120programs,1200steps, | ||||||
All repeat 999 cycles, part repeat 99 cycles |
(2)KMH-L series
Model | KMH-L series | |||||
150 L | 225 L | 408 L | 800 L | 1000 L | ||
Temp. range | -40°C ~150°C | |||||
Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
D(mm) | 460 | 480 | 800 | 800 | 1000 | |
Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
Weight(KG) | 250 | 300 | 420 | 530 | 600 | |
Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ||||
Heat up time | -40°C ~+100°C ,within 45 min | |||||
Pull down time | +20°C ~-40°C , within 60 min | |||||
Humidity Range | 20~98%R.H | |||||
Temp. constancy | ±0.5ºC | |||||
Humidity constancy | ±2.5%R.H | |||||
Temp. uniformity | ±2.0ºC | |||||
Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
Interior material | Stainless Steel Plate(SUS 304) | |||||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
Ambient Temp. | +5°C ~+35°C | |||||
Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires | |||||
Controller | LCD Touch Screen, Chinese or English display selectable | |||||
Operation model :Program or fix point running | ||||||
Memory capacity :120programs,1200steps, | ||||||
All repeat 999 cycles, part repeat 99 cycles |
(3)KMH-S series
Model | KMH-S series | |||||
150S | 225S | 408S | 800S | 1000S | ||
Temp. range | -70°C ~150°C | |||||
Interior sizel | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
D(mm) | 460 | 480 | 800 | 800 | 1000 | |
Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
Weight(KG) | 280 | 330 | 450 | 550 | 650 | |
Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ||||
Heat up time | -70°C ~+100°C ,within 60 min | |||||
Pull down time | +20°C ~-70°C , within 80 min | |||||
Humidity Range | 20~98%R.H | |||||
Temp. constancy | ±0.5ºC | |||||
Humidity constancy | ±2.5%R.H | |||||
Temp. uniformity | ±2.0ºC | |||||
Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
Interior material | Stainless Steel Plate(SUS 304) | |||||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
Ambient Temp. | +5°C ~+35°C | |||||
Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires | |||||
Controller | LCD Touch Screen, Chinese or English display selectable | |||||
Operation model :Program or fix point running | ||||||
Memory capacity :120programs,1200steps, | ||||||
All repeat 999 cycles, part repeat 99 cycles |
DE-50-400 Body Parameter | |
Rated Sine Force (peak): | 50 kN |
Rated Random Force (peak): | 50 kN |
Impact vibration force (peak): | 120 kN |
Frequency Range: | DC~2800 Hz |
Max Displacement(p-p): | 76mm |
Max Velocity: | 2 m/s |
Max Acceleration: | 800m/s2 |
One class resonant frequency: | 2400 Hz±5% |
Max. weight of the test item Load: | 1200 kg |
Vibration Isolation Frequency: | 3 Hz |
Turntable Diameter: | Ф400 mm |
Equivalent mass of moving parts: | 30 kg |
Leakage flux: | <1.0 mT |
Body Size(L×W×H): | 1692mm×1104mm×1288mm |
Body Weight (kg), include packing weight | About 4500 |
1. Insulation material adopt PU foam and high density, which can avoid unnecessary energy loss.
2. Large glass window, viewing angle in all directions, hollow electric plating film and anti-condensation design, built-in lights to facilitate the test sample state of real-time observation in the course of testing.
3. Material quality of inner box is SUS304 # mirror-face stainless steel imported, and outer box is steel plate and the paint.
4. Large-size LCD display screen, simple operation, easy to edit programs. PID with automatic calculation function, show failure message .
5. An RS-485communication interface, matching recorder, strong expandability.
● GB-2423. 1-89 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423. 2-89 (IEC68-2-2)Test B: High Temperature Test
● GJB360. 8-87 (MIL-STD. 202F) High Temperature Life Test
● GBJl50. 3 (MIL-STD-810D) High Temperature Test
● GJBl50. 4 (MIL-STD-810D) Low Temperature Test
● GB2423. 3-93 (IEC68-2-3)Test Ca: Constant Heat Test
● GB2423. 4-93 (IEC68-2—30)Test Db: Damp Heat Alternative Test
● GJBl50. 9-93 (MIL-STD-810D) Damp Heat Test
We use standard inner box PP film and carton plywood for the packing.
