|Controller:||LED Touchscreen 7 Inch||Temperature Range:||-20℃ ～ +180℃|
|System:||Balanced And Humidity Control System||Interior Material:||Stainless Steel Plate(SUS304)|
|Exterior Material:||Baked Painting Steel Or Stainless Steel(SUS304)||Amibient Temp:||+5 °C~+35 °C|
temperature and humidity chamber,
temperature test chamber

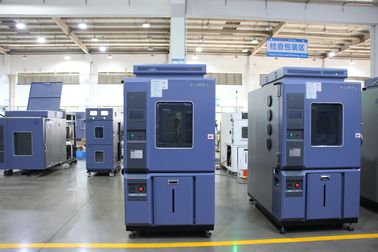

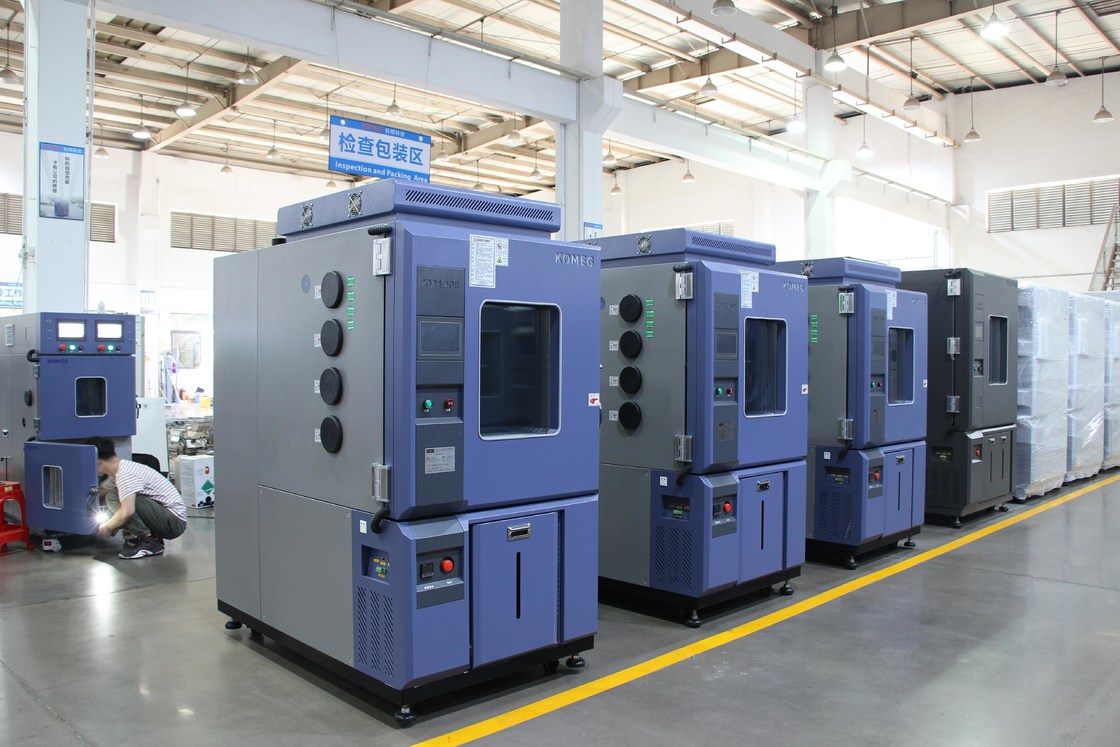

408L temperature and humidity test chamber With Observation window
Temperature and humidity test chamber is also called temperature and humidity
testing machine, constant temperature and humidity experimental chamber, programmable wet heat
alternating test chamber, or constant temperature machine. The Temperature and humidity test chamber
is used to inspect equipments quality and test performance of materials in various environments,
and all kinds of materials properties of heat resistance, cold resistance, dry resistance and
moisture resistance, which is fit for Electronics, electrical appliances, mobile phones, communications,
meters, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and
other products quality inspection.
Using the internal pressure box, SUS304# stainless steel tank.
Various protection facilities, configure the wireless remote alarm device
Double door sealing structure, adjustable locking mechanism.
The box adopts LCD LCD touch screen, there is trouble to talk menu, the trouble of the interpretation of
the interpretation of the failure.
The refrigeration compressor and key accessories are all imported from international
brands.Environmental protection cold media refrigeration, in line with international environmental
protection convention requirements.
Various optional accessories: rs232/485 communication interface, record printer, remote temperature
control system (including communication software, computer printing, etc.).
|1.1 Temperature range||-20℃ ～ +180℃|
|1.2 Temp Deviation||≦ ± 2.0℃|
|1.3 Temp Fluctuation||±0.5℃|
|1.4 Temp Uniformity||±2.0℃|
|1.5 Ramping and soaking rate||
Heating up rate: -20℃↑ +100℃ about 35min (no-load, ambient temperature +25℃)
Cooling rate: 20 ℃to -20℃ about 45min (no-load, ambient temperature +25℃)
|2.1 Humidity range||10%R.H～98%R.H|
|3.2 Control range|
|3.3 Humidity deviation||
|3.4 Humidity uniformity||3.0％RH (no-load)|
|3.5 Humidity fluctuation||±2.0％RH|
|Temperature and humidity performance test is in accordance with the relevant provisions of the IEC60068 -3 standard measurement; sensor placed in the unit outlet.|
|Ⅴ. Chamber Structure|
Overall structure and chamber was composed of three parts as below.
Insulation box, separate refrigeration units, and electrical control cabinet.
Workspace volume: W 700 × H 750 × D 800 mm
Exterior size: W 900 × H 1785 × D 1820 mm (about)
|2. Insulation box||
Wall material: high-quality carbon steel with static color spray
Inner wall material: SUS304 # matte stainless steel plate
Insulation materials: rigid polyurethane foam insulation layer + glass fiber.
||Single door, left open. Heating wire was installed at the door frames to prevent condensation at low temperatures.|

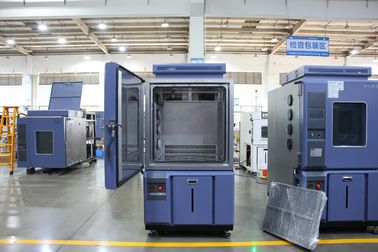

|4．Observation window||With observation window W 350×H 500mm, multi-hollow electric insulation coated glass prevent condensation effectively|
|5．Lighting device||LED Lighting device *1 located on observation window|
High quality nickel-chromium alloy wire electric heaters,
Non-contact control mode(SSR)
Water basin heating and humidification method;
Stainless steel sheathed heater;
Heater control: no-contact control (SSR);
Water level control device, heater anti-dry device.
|8. Water outlet hole||Available for drain the condensate water|
|9. Cable port||Φ50mm*1 located on each side of chamber, with rubber stopper and stainless steel cover|
|10. Shelf for samples||Two layers of stainless steel sample holder. Adjustable, load capacity 30kg/ layer|
|11. Mobile Casters||Mobile Casters with foot cups|
|12.Electric control box||Total power circuit breaker, over-temperature protection.|
|13. Water supply system||Water pump automatic supply|
Environmental test chamber Standard
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 humid testing
GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
B/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
B/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method
IEC60068-2-1.1990 low-temperature testing method
IEC60068-2-2.1974 high-temperature testing method
