Product Details:
Payment & Shipping Terms:
|
| Product Name: | Big Walk-in Climatic Chambers | Application: | Reliability Testing, Research & Development Testing, Failure Analysis |
|---|---|---|---|
| Interior Size: | W 1500 × H 2000 × D 9000 Mm | Temperature Range: | -70℃～+120℃ |
| Humidity Range: | 20%R.H～98%R.H(temperature Range +10℃ ～ +80℃) | Power: | AC 3ψ4W 380V 50Hz |
| High Light: | walk in environmental chamber,walk in humidity chamber |
||

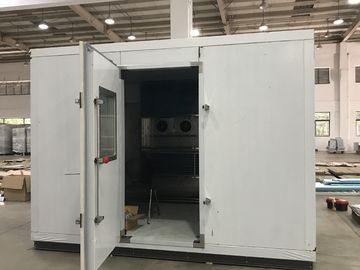

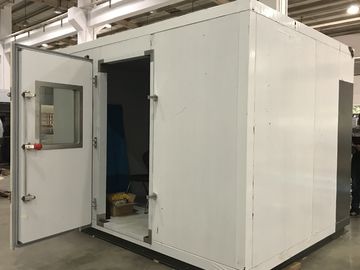

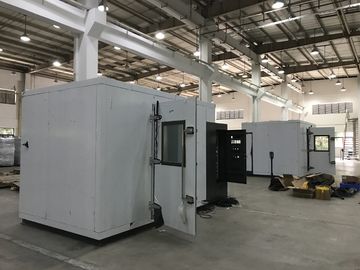

Stainless steel interior high and low temperature Walk in test chamber with double door
1. Walk-in constant temperature and humidity test chamber
Walk in high and low temperature test chamber is widely used in the detection of electronic equipment, IT communications, automobile, industrial and electrical, instrumentation, materials, energy, chemical and other products,for heat, cold, dry, moisture-resistant environmental adaptability.
2. Main Technical Parameters
| SPECIFICATIONS | |||||||
| Model | KMHW- | ||||||
| 4 | 6 | 8 | 13 | 17 | 21 | ||
| Volume(m³) | 9 | 12.9 | 16.8 | 16.8 | 35.2 | 43.3 | |
| Interior Dimensions | W(mm) | 2100 | 3000 | 3900 | 3000 | 3900 | 4800 |
| H(mm) | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | |
| D(mm) | 2050 | 2050 | 2050 | 4300 | 4300 | 4300 | |
| Exterior Dimensions | W(mm) | 3250 | 4160 | 5050 | 5050 | 5050 | 5950 |
| H(mm) | 2350 | 2350 | 2350 | 2350 | 2350 | 2350 | |
| D(mm) | 2250 | 2250 | 2250 | 2250 | 4500 | 4500 | |
| Control System | Balanced Temperature & Humidity Control System | ||||||
| Temp. range | Maximum:80ºC,120ºC;Minimum:-60ºC,-50ºC,-40ºC,-30ºC,-20ºC,-10ºC,0ºC | ||||||
| Humidity Range | 10%,20%,30%~95% | ||||||
| Temp. constancy | ±0.5ºC | ||||||
| Humidity constancy | ±2.5%R.H | ||||||
| Temp. uniformity | ±2.0ºC | ||||||
| Humidity uniformity | ±5.0%R.H | ||||||
| Heat up time | +20ºC~+80ºC ,Within 60 min | ||||||
| Pull down time | +20ºC~-55ºC -40ºC-20ºC-10ºC ,Within 120 or 90 or 60 min | ||||||
| Interior material | Stainless Steel Plate(SUS 304) | ||||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||
| Insulation material | Rigid polyurethane foam | ||||||
| Door size (mm) | Single wing:W800*H1800;Double wing:W1600*H1800; | ||||||
| Safety Devices(standard) | No fuse breaker, over pressureover heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection |
||||||
| Standard accessories | Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicator | ||||||
| Refrigeration system | Water Cooled | ||||||
| Semi-hermetic compressor, single stage or cascade refrigeration system | |||||||
| CFC free refrigerant(HFC-507 and HFC-23) | |||||||
| Controller | Panel | 7-inch LCD Touch panel,Chinese or English display selectable | |||||
| Operation model | Program or fix point running | ||||||
| Memory capacity | 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles | ||||||
| Accuracy | Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit | ||||||
| Input | Temp.:pt-100, Humidity:pt-100 or ~5V DCV | ||||||
| Comm.port | RS-232 or RS-485 (Softawre is option) | ||||||
| Ambient Temp. | +5ºC~+35ºC | ||||||
| Wiring method | AC 380±10%50Hz ,3 phase 4 wires +Ground Wires | ||||||
| Note:1. We reserve the right to change specifications without prior notice | |||||||
| 2.Customized sizes and configurations available | |||||||
3.Features
1) Stainless steel interior
2) Painted galvanized steel exterior for long life
3) MAP service doors are hinged (no tools or lifting)
4) Easy access to frequently checked refrigeration components
5) Reliable steam generator system for humidity applications
6) Adjustable vanes in supply grille allow directing of airflow as needed
4. Description
Flexibility for structure
The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.
Widest test range, most customizable
5. Meet the standard
● GB-2423. 1-89(IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50. 4(MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009(MIL-STD-810D) Damp Heat Test
6. Optional accessories
●Cable Port: Two size of cable port is available: Φ50mm, Φ100mm, Φ120mm
●Double door
●Pass room: Provided to avoid disturbance of atmospheric temperature and humidity while opening the door.
●Floor reinforcement: Can be fixed if heavy specimen placed in the chamber for test.
●Carry-in inclined platform: Provided below the door to facilitate moving of specimens in and out through the door.
●Entire ceiling blow-out duct
The extremely wide air inlet reduces the airflow rate (down to apprrox.0.5m/s)
●Dehumidifier
The rotation regenerating dehumidifier (M-300)ensures precise control of low humidity (21℃,23%RH)for electrostatic reliability tests.
●Temperature and humidity recorder
100mm width recording paper with 6 dots
180mm width recording paper with 12 dots
●Status indication lamp
Provide to signal chamber status and warnings when normal running, a malfunction running or stand by occurs.
●Water purifier
Provided to keep the humidifier heater free from scale and ensure the supply of water to humidifier.
●Power socket
●Air cooled or water cooled type condenser
After-sale Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
