Power: | AC 380±10% 50Hz ,3 Phase 4 Wires +Ground Wires | Ambient Temp: | +5ºC~+35ºC |
---|---|---|---|
Temp Range: | -20℃ ~ +150℃ | Temp Uniformity: | ±2.0℃ |
Exterior Material: | Baked Painting Steel | Insulation Material: | Glass Wool |
High Light: | humidity and temperature controlled chamber,temperature test chamber |

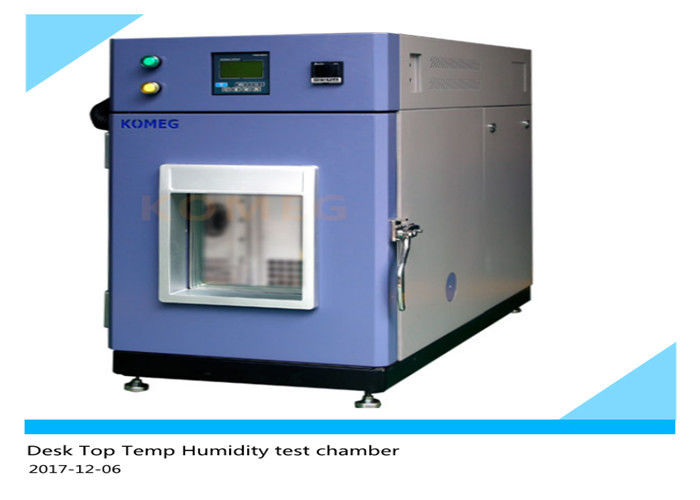

Environmental Climatic Humidity Temperature Desktop Tester Chamber For Calibration
Desk Top Temperature Humidity Test Chamber offer flexibility, uniformity, and control accuracy required for
cost effective testing for a variety of products.
Application
Desk Top Temperature Humidity Test Chamber is applied to test various types of materials for their tolerances of heat, cold, dry, humidity, and applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Featuers
1. Delicate touch and excellent user experience;
2. Unique and compact design, topgrade appearance, stable performance and easy operation;
3. Can simulate a wide range of temperature and humidity environments;
4. Capable of testing large components, assemblies, and finished products;
5. Customized sizes and configurations avaible;
6. One year warranty
7.Visually attractive with large windows
8.Space-saving and Compact with optimized test chamber volumes
9.Powerful, suitable for a broad range of applications involving temperature and relative humidity
Standards Implement and Met
GB11159-89
GB10590-89
GB15091-89
GB/T2423.25-1992
GB/T2423.26-1992
GJB150.0-86
Specification :
Model | DTH-80A | DTH-80B |
DTH-80C
|
Internal Dimensions WxHxD (mm) |
400X500X400 | ||
External Dimensions WxHxD (mm) |
1150X1150X1050 | ||
Temperature Range | (RT+10ºC) ~+150ºC | 0~+150ºC | -20 ~+150ºC |
Humidity Range | 20%~98%R.H. | ||
Indication Resolution/ Distribution Uniformity of Temperature and Humidity |
0.1ºC; 0.1% R.H / ±2.0ºC; ±3.0% R.H. | ||
Control Accuracy of Temperature and Humidity |
±0.5ºC; ±2.5% R.H. | ||
Temperature Rising /Falling Velocity |
Temperature rising approx. 0.1~3.0ºC/min; temperature falling approx. 0.1~1.5ºC/min; |
||
Interior and Exterior Material |
Interior material is SUS 304# stainless steel,exterior is stainless steel or see cold-rolled steel with paint coated. | ||
Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials | ||
Cooling System | Wind cooling | ||
Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection | ||
Optional Accessories | Inner door with operation hole(Optional), Recorder(optional),Water Purifier | ||
Compressor | French Tecumseh Brand, Germany Bizer Brand | ||
Power | AC 220V(±10%), 1∮ 3 Lines , 50/60HZ; | ||
Weight (Kg) |
198kg
|

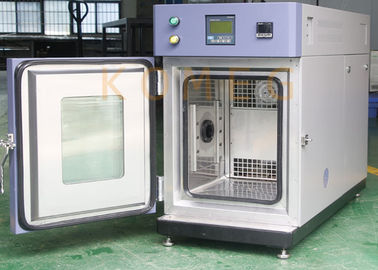

Photos show
|
|
