Constant Temperature Humidity Chamber For Material Calibration OEM

Constant Temperature Humidity Chamber For Material Calibration OEM
Constant Temperature Humidity Chamber For Material Calibration OEM Constant Temperature Humidity Chamber For Material Calibration OEM

Large Image :  Constant Temperature Humidity Chamber For Material Calibration OEM

Product Details:
Place of Origin: China
Brand Name: Komeg
Certification: CE approval
Model Number: KMH-408S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: rigid poly foam and wooden box
Delivery Time: 35 day after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs /day
Detailed Product Description
Temp Range: -70℃ ~ +100℃ Temp Deviation: ≦ ± 0.5℃
Pressure Range: Normal Pressure ~1k Pa Interior Material: Stainless Steel
Exterior Material: Baked Painting Steel Heating Uptime: 0.7℃~1.0℃/minutes(Average )
High Light:

humidity and temperature controlled chamber


temperature test chamber


408L Constant Temperature And Humidity Test Chamber For Material Calibration


OEM &ODM are welcome ,more information , pls kindly contact :anna@komegtech.com ,whatspp : +86-18098282716




The chambers is applied to test the materials in heat-resistance, cold-resistance,
dry-resistance,moisture-resistance.The language can choose either English or Chinese and
with the touch-screen liquid crystaldisplay screen, simple to operate and program easy to edit.
It can show the system operating data, implementationand set-up process curve. A trouble
occurs in operation, the screen automatically displays the trouble and providemethod for
Technical Parameter
Model no



Air supply mode

Forced air circulation


Temp Range




Temp fluctuation



Heat up time

+20℃ down to -70 within 80min


Control mode

PID+SSR output


Door Seal

Single door with silica



Temperature controller


High precision DIN A class,Dry ball φ4.8mm SUS #304 PT 100Ω



Color touch screen controller with PID control


Display function

Temp and humidity setting (SV) The actual (PV) value is displayed directly;


Support executive program number, Paragraph, remaining time, number of cycles, running time display;


Program editing and graphical curve display;


Fixed point or program action status display;


7-inch resolution: 800 * 480, 65535 true color, LED backlight display screen.

Control resolution

Temp: + 0.01℃;Humidity: + 0.1%;time: 0.01min


Setting range

Temp Condition:–100~200 ℃;


According to the temperature of the chamer to adjust the working range (upper limit +5 ℃, lower limit -5 ℃)


Humidity Condition:0~100 %RH

Operating mode

Programmable running, constant running


Program capacity

Running time up to 999999 h 59 m (also can be set to continue running without time limit);


Available program capacity: up to 269 groups, a total of 13450 paragraphs;


Usable memory capacity: 50 steps per group;


Repeatable commands: Up to 32000 cycles per command

Setting way

Man-machine dialogue mode, using touch input and control


Communication Interface

RS-232,RS-485 and Ethernet.


Data collection and curve display when connected with a computer


Can be used as monitoring and remote control system


Multi machines synchronization control available

U Disk Memory Card 1G-8G available for downloading historical curve and data, pluggable



Standards Implement and Met


1.GB11158 high-temperature testing condition
2.GB10589-89 low-temperature testing condition
3.GB10592-89 high-low-temperature testing condition
4.GB/T10586-89 humidity testing condition
5.GB/T2423.1-2001 low-temperature testing condition
6.GB/T2423.2-2001 high-temperature testing condition
7.GB/T2423.3-93 humidity testing condition
8.GB/T2423.4-93 alternating temperature testing machine
9.GB/T2423.22-2001 temperature testing method
10.IEC60068-2-1.1990 low-temperature testing method
11.IEC60068-2-2.1974 high-temperature testing method
12.GJB150.3 high-temperature test
13.GJB150.4 low-temperture test
14.GJB150.9 humidity test




1. Dedicatetouch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide rang of temperature and humidity environments
4. Capable of testing large components, assemblies, and finished products
5. Customized sizes and configurations available
6. One year warranties

Competitive Advantage
1. Have 27 years experience on environmental chambers and standard environmental chambers, Specializing in environmental simulation equipment, ess, walk-in, environmental stress screening, altitude chambers, temperature chambers, temperature and humidity chambers, environmental test chamber manufacturers, humidity chambers, humidity simulation, temperature cycling, thermal test chambers, solar panel test chambers, thermal shock, climatic/climate chambers, vibration test chambers, drive-in chambers, laboratory test chambers, environment test rooms.

For more detail information ,kindly contact : anna@komegtech.com whats app ,wechat :+86-18029096856

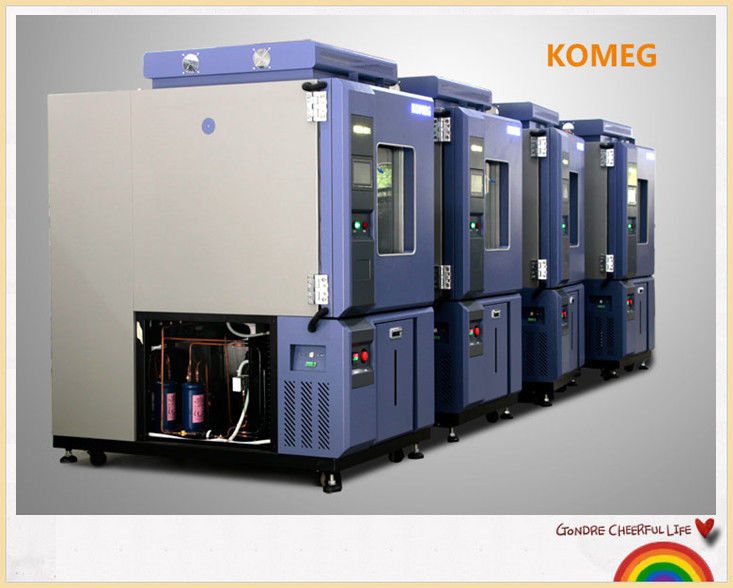

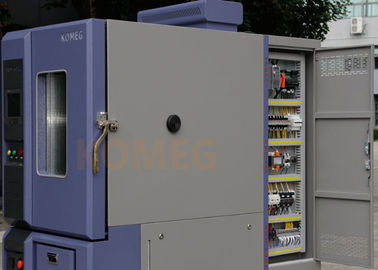

Photos show

Constant Temperature Humidity Chamber For Material Calibration OEM 0
