Product Details:
Payment & Shipping Terms:
|
| Temp Range: | -20℃ ～ +150℃ | Temp Deviation: | ≦ ± 0.5℃ |
|---|---|---|---|
| Humidity Range: | 20-98% R.H | Interior Material: | Stainless Steel |
| Exterior Material: | Baked Painting Steel | Ambient Temp: | +5℃ ～ +35℃ |
| High Light: | temperature and humidity chamber,humidity and temperature controlled chamber |
||
225L Constant Temperature And Humidity Test Chamber For Research Institution
OEM &ODM are welcome (Different temperature range and size as per requirements ) ,more information , pls kindly contact: anna@komegtech.com Whatsapp :+86-18098282716
Application
Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical
appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research
institution, inspection and quarantine bureau, university etc..
| Model no |
kMH-225R
|
| Air supply mode |
Forced air circulation
|
| Temp Range |
-20 ～ +150 ℃
|
| Temp fluctuation |
±1.0℃
|
| Heat up time |
-20℃ ↑ +100℃ within 35min(no-load, environmental temperature +25℃)
|
|
Cooling rate |
+20℃ ↓ -20℃ within 45 min(no-load, environmental temperature +25℃)
|
|
Humidity range |
20%R.H～98%R.H
|
Temperature controller
| Sensor |
High precision DIN A class,Dry ball φ4.8mm SUS #304 PT 100Ω
|
| Controller |
Color touch screen controller with PID control
|
| Display function |
Temp and humidity setting (SV) The actual (PV) value is displayed directly;
Support executive program number, Paragraph, remaining time, number of cycles,
running time display;
Program editing and graphical curve display;
Fixed point or program action status display;
7-inch resolution: 800 * 480, 65535 true color, LED backlight display screen. |
| Control resolution |
Temp: + 0.01℃；Humidity: + 0.1%；time: 0.01min
|
| Setting range |
Temp Condition:–100～200 ℃；
According to the temperature of the chamer to adjust the working range (upper limit +5 ℃, lower limit -5 ℃)
Humidity Condition:0～100 %RH |
| Operating mode |
Programmable running, constant running
|
| Program capacity |
Running time up to 999999 h 59 m (also can be set to continue running without time limit);
Available program capacity: up to 269 groups, a total of 13450 paragraphs;
Usable memory capacity: 50 steps per group;
Repeatable commands: Up to 32000 cycles per command |
| Setting way |
Man-machine dialogue mode, using touch input and control
|
| Communication Interface |
RS-232,RS-485 and Ethernet.
Data collection and curve display when connected with a computer
Can be used as monitoring and remote control system
Multi machines synchronization control available |
| U Disk Memory Card |
1G-8G available for downloading historical curve and data, pluggable
|
Standards Implement and Met
Specifications
1. Dedicatetouch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide rang of temperature and humidity environments
4. Capable of testing large components, assemblies, and finished products
5. Customized sizes and configurations available
6. One year warranties

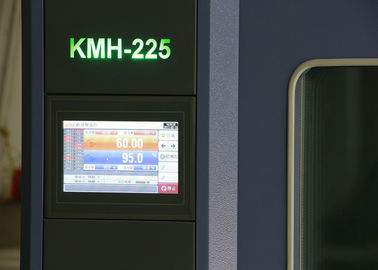

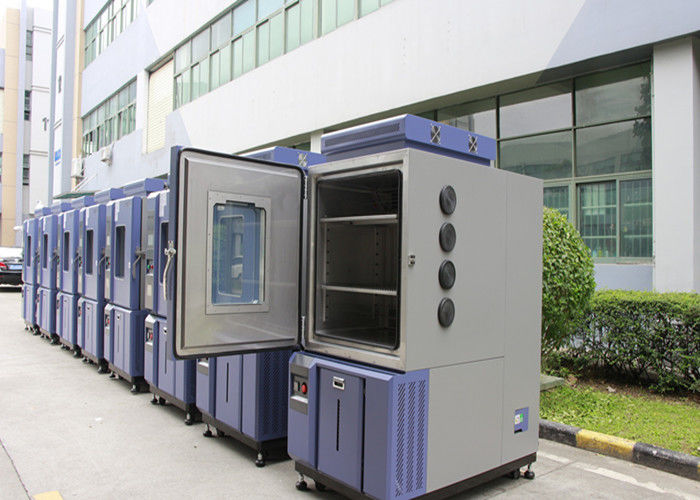

Photos show
