Accelerate The Effects Of Exposure To The Environment With Temperature And Humidity Test Chamber

Accelerate The Effects Of Exposure To The Environment With Temperature And Humidity Test Chamber
Accelerate The Effects Of Exposure To The Environment With Temperature And Humidity Test Chamber Accelerate The Effects Of Exposure To The Environment With Temperature And Humidity Test Chamber

Large Image :  Accelerate The Effects Of Exposure To The Environment With Temperature And Humidity Test Chamber

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: KOMEG
Certification: CE, ISO9001
Model Number: KMH-1000R
Payment & Shipping Terms:
Minimum Order Quantity: ONE SET
Price: 10000-20000USD / SET
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual inside
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 SETS PER YEAR
Detailed Product Description
Exterior Material: Baked Painting Steel Or Stainless Steel Interior Material: SUS 304 Stainless Steel Plate
Internal Volume: 1000L Application: Laboratory, Testing Center, Production Line
Heating Speed: 3℃/min Humidity Range: 20%~98%
Temperature Range: -40℃/-70℃~+150℃ Function: Battery Climate Test
Coolant: R23/R404A Temperature Rate: Heating 3 Degree/min Cooling 1 Degree/min
High Light:

temperature and humidity chamber

,

temperature test chamber



Accelerate the Effects of Exposure to the Environment with Temperature and Humidity Test Chamber





Product Application





This chamber complied with national standard, able to satisfy special testing requirements, is widely applied for electronic and electric products, automotive parts, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university components and materials by high low constant temperature, temperature change, shock, damp heat vibration etc combined environment simulation reliability test.





Technical Specification for KMH-36L and KMH-64L





Model KMH-36L(Benchtop) KMH-64 series
64 R 64 L 64 S
Temp. range -40°C ~150°C -20°C ~150°C -40°C ~150°C -70°C ~150°C
Interior size W(mm) 300 400 400 400
H(mm) 400 400 400 400
D(mm) 300 400 400 400
Exterior size W(mm) 460 600 600 600
H(mm) 780 1526 1526 1526
D(mm) 1002 1200 1200 1200
Power(KW)   5.8 5.8 5.8
Weight(KG)   300 300 300





Specification for Other Model



KMH-R series



Model KMH-R series
150R 225R 408R 800R 1000R
Temp. range -20°C ~150°C
Interior size W(mm) 600 700 700 1000 1000
H(mm) 600 700 750 1000 1000
D(mm) 460 480 800 800 1000
Exterior size W(mm) 880 980 980 1280 1280
H(mm) 1730 1890 1940 2160 2160
D(mm) 1400 1460 1740 1750 1950
Power(KW) 5.8 6 7.5 12.8 12.8
Weight(KG) 240 280 400 500 580
Humidity uniformity ±3.0%R.H ±5.0%R.H
Heat up time -20°C ~+100°C ,within 35 min
Pull down time +20°C ~-20°C , within 45 min
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Safety device (standard) NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C ~+35°C
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Controller LCD Touch Screen, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles





KMH-L series



Model KMH-L series
150 L 225 L 408 L 800 L 1000 L
Temp. range -40°C ~150°C
Interior size W(mm) 600 700 700 1000 1000
H(mm) 600 700 750 1000 1000
D(mm) 460 480 800 800 1000
Exterior size W(mm) 880 980 980 1280 1280
H(mm) 1730 1890 1940 2160 2160
D(mm) 1400 1460 1740 1750 1950
Power(KW) 5.8 6 7.5 12.8 12.8
Weight(KG) 250 300 420 530 600
Humidity uniformity ±3.0%R.H ±5.0%R.H
Heat up time -40°C ~+100°C ,within 45 min
Pull down time +20°C ~-40°C , within 60 min
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Safety device (standard) NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C ~+35°C
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Controller LCD Touch Screen, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles



KMH-S series



Model KMH-S series
150S 225S 408S 800S 1000S
Temp. range -70°C ~150°C
Interior sizel W(mm) 600 700 700 1000 1000
H(mm) 600 700 750 1000 1000
D(mm) 460 480 800 800 1000
Exterior size W(mm) 880 980 980 1280 1280
H(mm) 1730 1890 1940 2160 2160
D(mm) 1400 1460 1740 1750 1950
Power(KW) 5.8 6 7.5 12.8 12.8
Weight(KG) 280 330 450 550 650
Humidity uniformity ±3.0%R.H ±5.0%R.H
Heat up time -70°C ~+100°C ,within 60 min
Pull down time +20°C ~-70°C , within 80 min
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Safety device (standard) NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C ~+35°C
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Controller LCD Touch Screen, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles





Features



(1) accurate temperature heating and cooling control features temperature heating 3℃/min and cooling performance at 1℃/min with no load for our standard model, and can handle temperature cycle tests at 3℃/min cooling down and heating up rate respectively with load for customized model.


(2) highly temperature uniformity distribution komeg offers highest 0.5 ℃ temperature uniformity distribution, this allows minimizes variations in test results over multiple specimens.


(3) wide selection control range for temperature and humidity features a wider cont rol range of temperature and humidity, including stable control at 95℃/98%rh.


(4) network solution available standard communication support is available with rs-485 or rs-232c interface. An ethernet (lan) port is also available as an option, for simple connection of a computer, tablet computer, or other terminal. Monitoring of chamber’s running conditions, modification of test conditions, starting or stopping operation, and other interaction with the chamber can be performed via a web browser.

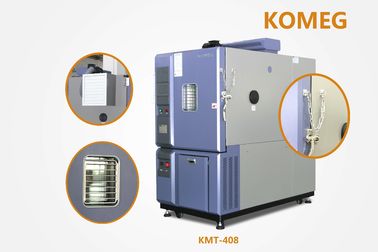

Accelerate The Effects Of Exposure To The Environment With Temperature And Humidity Test Chamber 0



Chamber Design Features



1. High performance and quiet operation (68 dBA)

2. Space-saving designed for flush installation to wall

3. Full thermal break around doorframe

4. One 50mm diameter cable port o left, with flexible silicone plug

5. Accurate wet/dry-bulb humidity measurement system for easy maintain



Programmable Controller



1. PLC controller for test chamber

2. Step types include: ramp, soak, jump, auto-start, and end

3. RS-232 interface to connect computer for output



Our Service


If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. If customers require on-site service, the transport and travel expense shall be borne by customer.

1. Pre-service


24 Hours online service for your consult.


2. Middle service


--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.


3. After sale service


--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Remote control technical consult
--Maintenance plan





FAQ



Why choose us?


1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:


12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con

3.Commitment:


We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4.Good Packaging:


Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

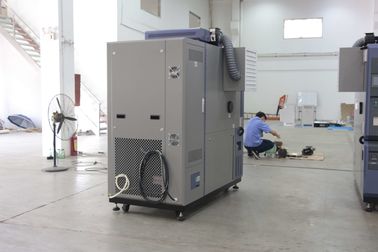

Accelerate The Effects Of Exposure To The Environment With Temperature And Humidity Test Chamber 1



KOMEG Specification for KMH-408L.pdf
