Temp.range: | -70℃ ~ +150℃ | Humidity Range: | 2.0%RH-98%RH |
---|---|---|---|
Interior Material: | SUS304 | Exterior Material: | Rust Proof Cool Rolled Steel Plate With Surface Coating |
Cooling Mode: | Water Cooled | Ambient Temp: | +5℃ ~ +35℃ |
High Light: | humidity and temperature controlled chamber,temperature test chamber |

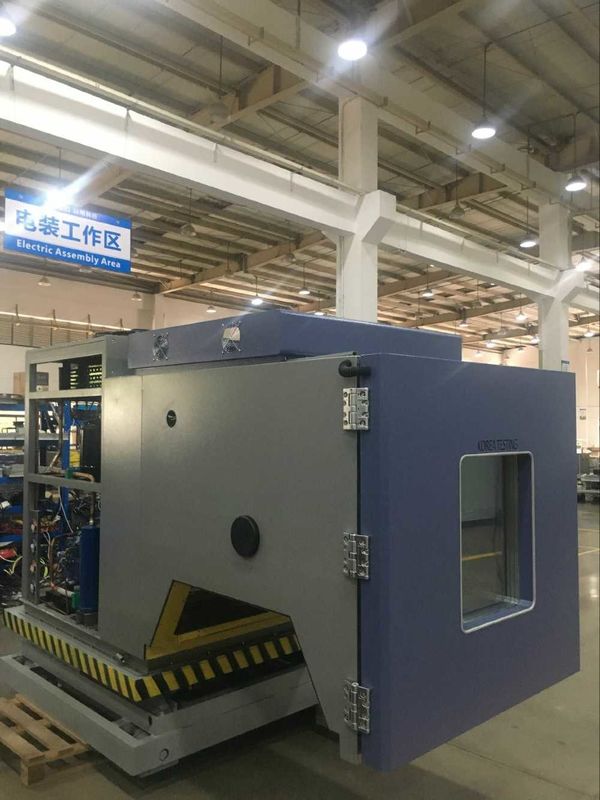

Warranty Temperature Humidity Chamber And Vibration Three Integrated Testing Chamber
Labs
Application:
Temperature Humidity Vibration Combined Environmental Test Chambers an match appropriate vibration
table to meet all kinds of the corresponding temperature, humidity and vibration combined environmental
testing requirements. And widely used in aviation, aerospace, shipbuilding, electrical, electronics,
communications and other industrial fields.
also alternate through programmable for testing the product or material heat-endurance, cold-
endurance, and humidity-endurance, or dryness-endurance, more over vibration; widely applied for
quality inspection for quality control of the industries of aviation and space, electron, electrical equipment,
vehicle(automobile), metal, instrument, chemistry, building materials, foodstuffs, adhesion tape, printing,
packaging, etc.
Features
● Combined laboratory structure and refrigeration system as a whole, compact and beautiful, easy
operation.
●Refrigeration compressor, LCD touch screen and main parts are imported brand, equipped with RS232
communication interface.
●Good mechanical transmission and match different types of vibration table.
Speifications
Model | KMVH-408S | KMVH-1000S | |
Insaide dimension(W*H*D)cm | 60*85*80 | 100*100*100 | |
Studio volume(L) | 408 | 1000 | |
Power | AC 380V/50Hz 3phase 5 wires | ||
Ambient Temp | +5℃ ~ +35℃ | ||
Performance | Temp.range | -70℃ ~ +150℃ | |
Temp.fluctuation | ≤0.5℃ | ||
Temp.uniformity | ±2.0℃ | ||
Humidity range | 2.0%RH~98%RH | ||
Humidity fluctuation | ±2.5%RH | ||
Temp.deviation | Humidity≤75%RHJ,±3.0%RH;Humidity>75%RHJ,±5.0%RH | ||
Temp rise and drop | ≤5℃/Min Or ≤10℃/Min(-55℃~+80℃Humidity range) | ||
Material Science | Interior material | Stainless Steel SUS 304 | |
Exterior material | Rust proof cool rolled steel plate with surface coating | ||
Insulation material | Hard PUR foam plastic | ||
Refrigeration system | Refrigerator | Semi-hermetic compressor | |
Cooling Mode | Water Cooled | ||
Heater | Quality nickel-chromium alloy heaters | ||
Blower | Centrifugal blower | ||
Door window | 470mm*350mm electric film painted hollow glasses | ||
Temp sensor | Pt-100 Platinum resistance sensor | ||
Controller | Touch Screen Programmable Controller | ||
Vibration table | Optional according to customer's Requirement | ||
Safety device | Over Temperature Protection,Compressor Lack of oil ,over pressure,cut-current,overload protection,lack of water protection,ventilator overload protection | ||
Standard configuration | Observation window,testing hole,sample shelve,temperature resistance light | ||
Select accessories | Specialized Testing Hole,Specialized sample shelve,extra sample holder |
Testing Standard
● GB-2423. 1-89 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423. 2-89 (IEC68-2-2)Test B: High Temperature Test
● GJB360. 8-87 (MIL-STD. 202F) High Temperature Life Test
● GBJl50. 3 (MIL-STD-810D) High Temperature Test
● GJBl50. 4 (MIL-STD-810D) Low Temperature Test
● GB2423. 3-93 (IEC68-2-3)Test Ca: Constant Heat Test
● GB2423. 4-93 (IEC68-2—30)Test Db: Damp Heat Alternative Test
● GJBl50. 9-93 (MIL-STD-810D) Damp Heat Test
Product Details
Pre-Sales Service
1.Inquiry support.
2.Consulting support.
3.Sample testing support.
4.Visiting welcomed.
Packing Details
We use standard inner box PP film and carton plywood for the packing.
Product After-sale service
If you face any problems in future during testing process we promise we will
give you a reply within 48 hours and solution provide within 3 working days. We
can offer operation video and English operation muanual. We can provide
video-conference. If customers require on-site service, the transport and travel
expense shall be borne by customer.
