Product Name: | Programmable Walk-in Test Chambers | Controller Panel: | KOMEG Programmable KM-5166 LCD Touch Screen Controller With PID Control Parameters Setting |
---|---|---|---|
Temperature Range: | -34℃ ~ +85℃ | Temp. Deviation: | ≦±2.0℃ |
Humidity Range: | 20 ~95%RH | Humidity Deviation: | ±3.0%RH(>75%RH) ±5.0%RH(≤75%RH) |
High Light: | walk in environmental chamber,walk in climatic chamber |

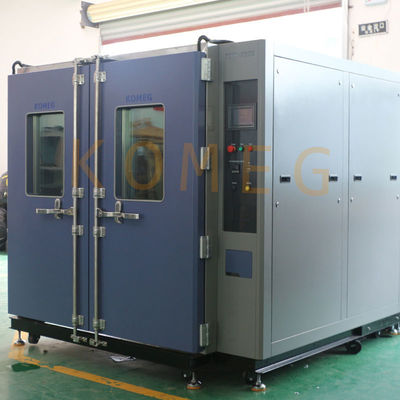

7L Double Door Walk-In Chamber With Programmable KM -5166 LCD Touch Screen Controller
Applications
A KOMEG Walk-In Chamber serves as a test site for large components, assemblies, and finished
products in electrical and electronics, aerospace, batteries and automobiles, etc. KOMEG manufactures
both Static Walk-In Chambers and Dynamic Walk-In Chambers and can be configured as a temperature
chamber or a temperature humidity chamber.
The KMHW-Series walk-in temperature and climate test chambers are especially developed for large test
specimens. Size and design are optimal loading of test specimens. The modular construction and
variability in size and equipment is ideally for specific application.
.
Features
● GB-2423.1-2008 (IEC68-2-1) Test A: Low Temperature Test
● GB-2423.2-2008 (IEC68-2-2) Test B: High Temperature Test
● GJB360. 8-87(MIL-STD. 202F) High Temperature Life Test
● GBJl50. 3(MIL-STD-810D) High Temperature Test
● GJBl50. 4(MIL-STD-810D) Low Temperature Test
● GB2423. 3-93(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423. 4-93(IEC68-2—30)Test Db: Damp Heat Alternative Test
● GJBl50. 9-93(MIL-STD-810D) Damp Heat Test
Prouduct Specifications
Temperature | ||
Temperature range | -34℃ ~ +85℃ | |
Temp. Deviation | ≦±2.0℃ | |
Temp.Fluctuation | ±0.5℃ | |
Temp. Uniformity | ≦2.0℃ | |
Heating time | From -15℃ to +85℃ Average 5℃/min at no load | |
Cooling time | From +85°C to -15°C Average 5°C/min at no load | |
Humidity | ||
Humidity range | 20 ~95%RH | |
Temperature and humidity range |
|
|
Humidity deviation |
±3.0%RH(>75%RH) ±5.0%RH(≤75%RH) |
|
Humidity Uniformity | ±3.0%RH(no-load) | |
Humidity fluctuation | ±2.0%RH | |
Load | The product has a maximum weight of 200kg and no heat. | |
Temperature and humidity performance measurement comply with related regulation of IEC60068-3 standard; Sensors placed in the air outlet. | ||
Chamber Structure ( on-site installation ) | ||
Chamber size |
Workspace volume : W 1800 × H 2100 × D 1800 mm Exterior size : W 2350 × H 2400 × D 3900 mm ( not including the machine protruding part, like the control cabinet of 350mm ) |
|
Insulation box |
wall material: high-quality carbon steel with static color spray inner wall material: SUS304 # matte stainless steel plate Insulation material: 100mm rigid polyurethane foam insulation + glass fiber |
|
Door | Double door, W (900+900)*H2100mm, including window (specific size, according to design). | |
Air circulation system |
Motor Long stainless steel shaft Wind drum strong wind circulation and air conditioning box air supply |
|
Lighting device | moisture-proof incandescent lamps. | |
Thread port | Diameterφ100mm *1 port on the left chamber with rubber isolation plug and plastic cover. | |
Shelf | No | |
Electric control box | Total power circuit breaker, over-temperature protection. | |
Pressure balance | The test chamber has a pressure balance port *1 to prevent the pressure in the chamber from being too high. | |
Control method | Forced circulation ventilation, Balanced thermostat conditioning (BTHC). | |
Heating | High-quality nickel-chromium alloy wire heater, non-contact control mode (SSR). | |
Humidifying | Stainless steel corrosion heat evaporative humidification. | |
Humidity Sensor | Electronic humidity sensor, no need to replace wet cloth. | |
Condensate outlet | Equipped with studio condensate and unit condensate drain holes. | |
Pure water machine | Pure water machine type 1, Please provide 1 ~ 2kg/cm2 tap water source. |
Product details
Packaging:
Chambers are covered with air bubble film before put them into the strong plywoodcase, which not only
has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic,
odorless, moisture corrosion, crash-proof, etc
After-sales Service and Training
Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty
period, the user will be charged properly. Irregular examination and life-long service are available;
Note: If needed, provide 2 operators for on-site installation and training
