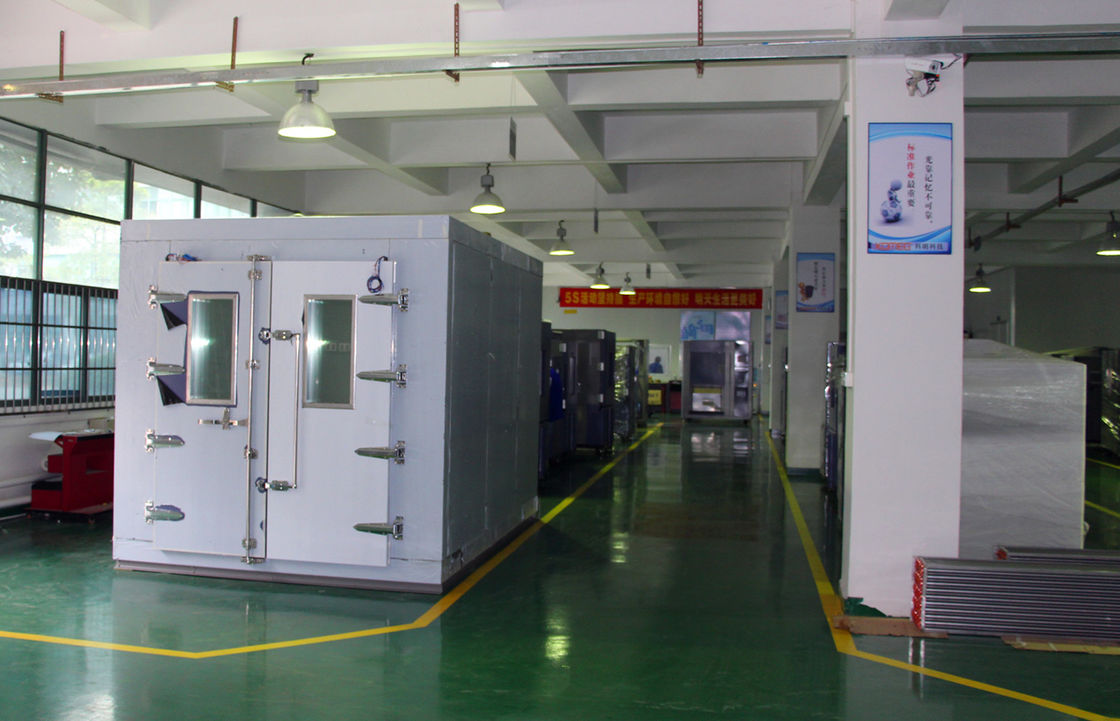

Horizontal Airflow Customized Walk-in Chamber Painted galvanized steel exterior

China Horizontal Airflow Customized Walk-in Chamber Painted galvanized steel exterior supplier
Horizontal Airflow Customized Walk-in Chamber Painted galvanized steel exterior supplier Horizontal Airflow Customized Walk-in Chamber Painted galvanized steel exterior supplier Horizontal Airflow Customized Walk-in Chamber Painted galvanized steel exterior supplier Horizontal Airflow Customized Walk-in Chamber Painted galvanized steel exterior supplier

Large Image :  Horizontal Airflow Customized Walk-in Chamber Painted galvanized steel exterior

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE/ROHS/FCC/
Model Number: KMHW-21

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 45 working days after received your payment
Payment Terms: T/T /C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Drive-in Temperature / Humidity Test Chambers Application: Reliability Testing, Research & Development Testing, Failure Analysis
Volume(M3): 43.3CBM Door Size: Single Wing:W80*H180;Double Wing:W160*H180
Temp. Constancy: +/-0.5oc Humidity Constancy: +/-2.5%R.H
H.S. Code: 9032100000 Delivery: 45 Working Days
Installation: Yes

60 Days Leadtime Horizontal Airflow Customized Walk-in Environmental Chamber





1. Features



1) Stainless steel interior

2) Painted galvanized steel exterior for long life

3) MAP service doors are hinged (no tools or lifting)

4) Easy access to frequently checked refrigeration components

5) Reliable steam generator system for humidity applications

6) Adjustable vanes in supply grille allow directing of airflow as needed







2. Forced Air Circulation Systems



All walk-in rooms incorporate forced air circulation. Differences in the size of the test chamber and its internal configuration are accommodated by various airflow patterns, including horizontal, vertical, or a combination of both. These provide an even distribution of air and tight temperature control. Noise is also a consideration.



The air circulation systems use external heavy duty motors to distribute air evenly and constantly recirculate it, maintaining uniform and accurate temperatures and humidity. The high quality motors have internal cooling fans, protectors, and stainless steel shafts. Aluminum or stainless steel squirrel cage blowers circulate the air. All mixing is within a plenum that is external to the walk-in room work area.



In tight tolerance environmental walk-in rooms, air must be evenly distributed and constantly recirculated at a higher than normal rate in order to maintain uniformity and accuracy. A portion of one wall of the room is devoted to a conditioning plenum. Air is drawn into the lower part of the plenum through a set of cleanable filters, across an evaporator coil and vertically across electric heaters. The air then enters centrifugal fans and is discharged into a perforated ceiling plenum. The air flows vertically downward in the room and is returned horizontally through the cleanable filters to the wall plenum.









3. Electric Heating System



The combination of airflow, instrument response, and fast-reacting heaters provides very accurate and straight line control of temperatures.



Air is passed over the fast response, low watt density heaters with ceramic cores. This type of system provides very accurate air and humidity control. A separate instrument precisely controls the heat level.



The heating systems have a long life and are very reliable, with no down time









4. Parameters




Specification of Walk-In Chambers
Model KMHW-21
Volume(m³) 43.3CBM
Interior Dimensions W4800 x H2100 x D4300mm
Exterior Dimensions W5950 x H2350 x D4500mm
Safety Devices(standard) No fuse breaker, over pressure, over heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection
Standard accessories Sight window x 1, cable port ( portΦ50mm ) x 1,chamber lamp x 1, status indicator
Control System  Balanced Temperature & Humidity Control System
Refrigeration system Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant ( HFC-507 and HFC-23 )
Controller Panel 7-inch LCD Touch panel, Chinese or English display selectable
Operation model Program or fix point running
Memory capacity 120 programs,1200steps, all repeat 999 cycles, part repeat 99 cycles
Accuracy Temp.: 0.1% of F.S ±1 digit  Humidity: 0.1% of F.S ±1 digit
Input Temp.: pt-100, Humidity: pt-100 or ~ 5V DCV
Comm.port  RS-232 or RS-485 ( Softawre is option )
Temp. range

Maximum: 80 ºC,120 ºC;

Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC

Humidity Range 10%, 20%, 30% ~ 95%
Temp. constancy ±0.5 ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0 ºC
Humidity uniformity ±5.0%R.H
Ambient Temp. +5 ºC ~ +35 ºC
Wiring method AC 380 ±10% 50Hz, 3 phase 4 wires + Ground Wires
Heat up time  +20 ºC ~ +80 ºC, Within 60 min
Pull down time  +20 ºC ~ -55 º,  -40 ºC, -20 ºC, -10 ºC,Within 120 or 90 or 60  min
Interior material Stainless Steel Plate ( SUS 304)
Exterior material Baked Painting Steel Or Stainless steel ( SUS304)
Insulation material Rigid polyurethane foam
Door size (mm) Single wing: W800*H1800;  Double wing: W1600*H1800;
Note:1. We reserve the right to change specifications without prior notice   2.Customized sizes and configurations available









4. Description



Flexibility for structure

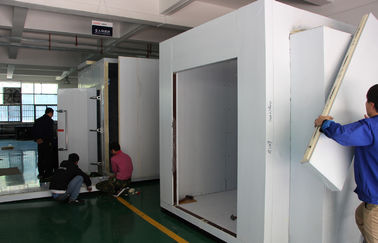

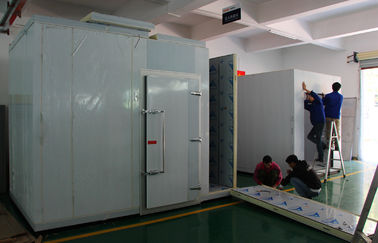

The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.



Widest test range, most customizable

Horizontal Airflow Customized Walk-in Chamber Painted galvanized steel exterior



Horizontal Airflow Customized Walk-in Chamber Painted galvanized steel exterior
