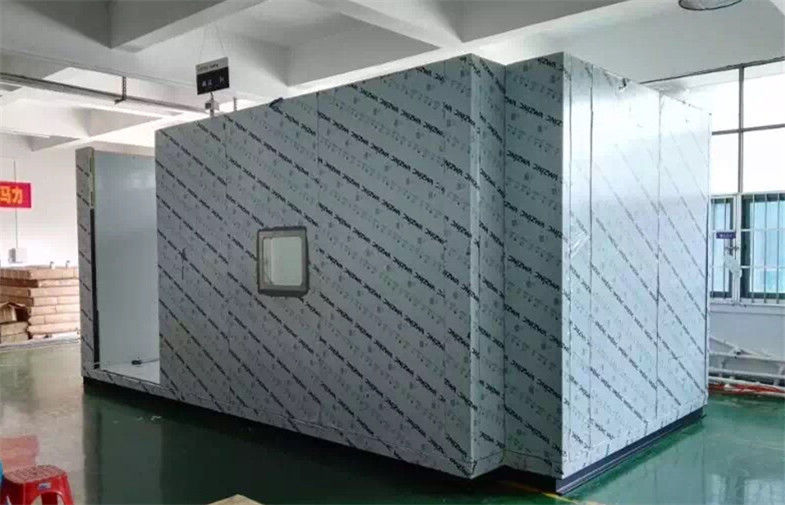

High Performance LED Touch Screen Walk - In Humidity Chambers

High Performance LED Touch Screen Walk - In Humidity Chambers
High Performance LED Touch Screen Walk - In Humidity Chambers High Performance LED Touch Screen Walk - In Humidity Chambers High Performance LED Touch Screen Walk - In Humidity Chambers High Performance LED Touch Screen Walk - In Humidity Chambers

Large Image :  High Performance LED Touch Screen Walk - In Humidity Chambers

Product Details:

Place of Origin: CHINA
Brand Name: KOMEG
Certification: CE
Model Number: KS-3177

Payment & Shipping Terms:

Minimum Order Quantity: 1 Walk - In Humidity Chambers
Price: USD10000-USD50000
Packaging Details: Wooden packing
Delivery Time: 35 -120 working days
Supply Ability: 10 SETS
Detailed Product Description
Material: Stainless Steel Temp. Range: -40-120
Humidity Range: 10%-95% Temp. Constancy: ±0.5ºC
Temp. Uniformity: ±2.0ºC Humidity Uniformity: ±5.0%R.H
Refrigeration System: Water Cooled Controller: 7-inch LCD Touch Panel
Wiring Method: AC 380±10%50Hz ,3 Phase 4 Wires +Ground Wires Model: KMHW-
Heat Up Time: +20ºC~+80ºC ,Within 60 Min Pull Down Time: +20ºC~-55ºC\ -40ºC\-20ºC\-10ºC ,Within 120 Or 90 Or 60 Min
Name: Walk - In Humidity Chambers
High Light:

walk in environmental chamber

,

walk in humidity chamber

High Performance LED Touch Screen Walk - In Humidity Chambers



Product Description

1. Imported parts
2. LED Touch Screen
3. One years free parts warranty
4. Fast delivery
5 .Long service lifetime
Optional accessories
Cable Port: Two size of cable port is available: Φ50mm, Φ100mm.
Double door
Pass room: Provided to avoid disturbance of atmospheric temperature and humidity while opening the door.
Floor reinforcement: Can be fixed if heavy specimen placed in the chamber for test.
Carry-in inclined platform: Provided below the door to facilitate moving of  specimens in and out through the door.
Entire ceiling blow-out duct
The extremely wide air inlet reduces the airflow rate (down to apprrox.0.5m/s)
Dehumidifier
 The rotation regenerating dehumidifier (M-300)ensures precise control of low humidity (21 ºC,23%RH)for electrostatic reliability tests.
Temperature and humidity recorder
100mm width recording paper with 6 dots
180mm width recording paper with 12 dots
Status indication lamp
    Provide to signal chamber status and warnings when normal running, a  malfunction running or stand by occurs.
Water purifier
    Provided to keep the humidifier heater free from scale and ensure the supply of water to humidifier.
Power socket
Air cooled type condense


Cost Effective Walk-in Chambers Manufactured by Komeg



LCD touched screen
Your company has just developed a great new product,
and now it is your job to select a better environmental test
chamber to test it and make sure it will hold up, and to decrease your lost.
KOMEG has business on reliability test equipment for more than 20years.
KOMEG  is widely recognized and recommended by the top 500comopanies and also customers from electronic, computer, home appliance, communications, chemical industry and scientific reseach.



Cost Effective Walk-in Chambers Manufactured by Komeg


In 2003, KOMEG did the reseach and development of the main equipment with the Peking University for state key laboratory of environment and pollution simulation(located in Shenzhen High-Tech Park, and funded by national natural science foundation.)




Our customers



Cost Effective Walk-in Chambers Manufactured by Komeg



After-sale service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.


Technical parameter:

Walk-In Chambers
SPECIFICATIONS

Note: We reserve the right to change specifications

without prior notice

Model KMHW-
4 6 8 13 17 21
Volume(m ³ ) 9 12.9 16.8 16.8 35.2 13.3
Interior Dimensions W(mm) 2100 3000 3900 3000 3900 4800
H(mm) 2100 2100 2100 2100 2100 2100
D(mm) 2050 2050 2050 4300 4300 4300
Exterior Dimensions W(mm) 3250 4160 5050 5050 5050 5950
H(mm) 2350 2350 2350 2350 2350 2350
D(mm) 2250 2250 2250 2250 4500 4500

Safety Devices

(standard)

No fuse breaker, over pressure over heat and over current protection for compressor,over

 temperature protection, over load protection for blower,

 dry heat protection

Standard accessories

Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1,

 status indicator

Control System  Balanced Temperature & Humidity Control System
Refrigeration system Water Cooled

Semi-hermetic compressor, single stage or cascade refrigeration

 system,

CFC free refrigerant ( HFC-507 and HFC-23 )
Controller Panel 7-inch LCD Touch panel , Chinese or English display selectable

Operation

 model

Program or fix point running

Memory

 capacity

120 programs,1200steps, all repeat 999 cycles , part repeat 99

 cycles

Accuracy Temp.:0.1% of F.S±1 digit  Humidity:0.1% of F.S±1 digit
Input Temp.:pt-100, Humidity:pt-100 or  ~ 5V DCV
Comm.port  RS-232 or RS-485 (Softawre is option)
Temp. range

Maximum : 80  ºC, 120  ºC; Minimum : -60  ºC, -50  ºC, -40 ºC ,

-30  ºC, -20 ºC , -10  ºC, 0  ºC

Humidity Range 10 %, 20% , 30% ~ 95%
Temp. constancy ±0.5  ºC
Humidity constancy ±2.5 % R.H
Temp. uniformity ±2.0  ºC
Humidity uniformity ±5.0 % R.H
Ambient Temp. +5  ºC~ +35  ºC
Wiring method AC 380±10 %  50Hz ,3 phase 4 wires +Ground Wires
Heat up time  +20  ºC~ +80  ºC ,Within 60 min
Pull down time

 +20  ºC~ -55  ºC  -40  ºC -20  ºC -10  ºC ,Within 120 or

 90 or 60  min

Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane foam
Door size (mm) Single wing : W800*H1800 ;  Double wing : W1600*H1800 ;

Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and

configurations available
