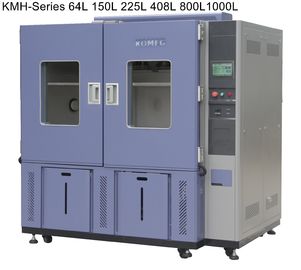

Stainless Steel Temperature Humidity Climatic Test Equipment for Automobile Testing

Stainless Steel Temperature Humidity Climatic Test Equipment for Automobile Testing
Stainless Steel Temperature Humidity Climatic Test Equipment for Automobile Testing Stainless Steel Temperature Humidity Climatic Test Equipment for Automobile Testing

Large Image :  Stainless Steel Temperature Humidity Climatic Test Equipment for Automobile Testing

Product Details:
Place of Origin: CHINA
Brand Name: KOMEG
Certification: CE, ISO
Model Number: KMH-408R
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 9000-15000USD / SET
Packaging Details: PP film and Strong Plywood Case
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 SETS PER YEAR
Detailed Product Description
Application: Laboratory, Testing Center Internal Volume: 150L
Interior Material: SUS 304 Stainless Steel Plate Exterior Material: Baked Painting Steel Or Stainless Steel
Warranty: 12 Months Free Parts Warranty Lead Time: 30 Working Days Upon The Deposit
Trade Terms: EXW, FOB, CIF, DDU, DDP H.S. Code: 9032100000
Chamber Volume: 150L
High Light:

temperature and humidity chamber

,

humidity and temperature controlled chamber

150L programmable temperature humidity test chamber



is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.





1. Product CE Certificate and Features:



1.High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.

2.Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.

3.Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.

4.With an external water supply system can be easy to supply water and automatically reuse.

5.Compressor circulatory system from French "Taikang", more effective removal of oil between the condenser and the capillary and use environmentally refrigerants ( R23, R404, R507).

6.Controller imported LCD display screen can be displayed measuring values and setting the value and time.

7.Controller with multi-segment program edited, temperature and humidity can be controlled quickly (OUICK) or slope (SLOP) .

8. Built-in mobile pulley easy to move and has a strong positioning screw fixed position





Corresponding Standard:

1.International Electrotechnical Commission Standard:
IEC68-2-03_test method Ca_Steady damp-heat
IEC68-2-01_test method A_cold
IEC68-2-02_test method B_dry heat
2. Military Standards:
MIL-STD-810F-507.4 humidity
MIL-STD-810F-501.4 high temperature
MIL-STD-810F-502.4 low temperature
MIL-STD883C test method 1004.2 temperature and humidity cycling test
MIL-STD810D test method 502.2
MIL-STD810 test method 507.2 procedure 3
3. Japanese Industrial Standard:
JIS C60068-2-3-1987 test method Ca: Steady damp-heat
JIS C60068-2-2-1995 test method B:dry heat
JIS C60068-2-1-1995 test method A:low temperature
4. USA Semiconductor Industry Standard:
JESD22-A101-B-2004 Constant temperature and humidity test
JESD22-A103-C-2004 High Temperature Storage Test
JESD22-A119-2004 Low Temperature Storage Test
5. Chinese National Standard:
GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
GB/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
GB/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method
6. China's National Military Environment Test Equipment
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 hot and humid condition testing

2. Structure:



Internal material: SUS304 High quality stainless steel plate (mirror panels)

External material: High quality iron plate with painting.

Insulation Material: ultra-fine glass fiber insulation cotton.

Heater: nickel-chromium alloy heating wire heating.

Humidifier: stainless steel heating pipe. Automatic water inlet.

Air circulation system: High quality air-conditioning motors, centrifugal impeller;



3. Refrigeration system:


Air Cooled (Water cooled Type is option)
Hermetic compressor, stag refrigeration system
Imported Tecumseh or Danfoss Compressor




4. Controller:


Digital Touch Screen
127 program, running for extremely long time,999 hours per segment, maximum 3200 times circulation
support RS485,LAN (internet access), GPRS (mobile phone) etc. communication mode. Conveninet for remote monitoring and data sampling.





5. Technical Specification:



(1) KMH-R series

Model KMH-R series
150R 225R 408R 800R 1000R
Temp. range -20°C ~150°C
Interior size W(mm) 600 700 700 1000 1000
H(mm) 600 700 750 1000 1000
D(mm) 460 480 800 800 1000
Exterior size W(mm) 880 980 980 1280 1280
H(mm) 1730 1890 1940 2160 2160
D(mm) 1400 1460 1740 1750 1950
Power(KW) 5.8 6 7.5 12.8 12.8
Weight(KG) 240 280 400 500 580
Humidity uniformity ±3.0%R.H ±5.0%R.H
Heat up time -20°C ~+100°C ,within 35 min
Pull down time +20°C ~-20°C , within 45 min
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Safety device (standard) NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C ~+35°C
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Controller LCD Touch Screen, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles



(2)KMH-L series

Model KMH-L series
150 L 225 L 408 L 800 L 1000 L
Temp. range -40°C ~150°C
Interior size W(mm) 600 700 700 1000 1000
H(mm) 600 700 750 1000 1000
D(mm) 460 480 800 800 1000
Exterior size W(mm) 880 980 980 1280 1280
H(mm) 1730 1890 1940 2160 2160
D(mm) 1400 1460 1740 1750 1950
Power(KW) 5.8 6 7.5 12.8 12.8
Weight(KG) 250 300 420 530 600
Humidity uniformity ±3.0%R.H ±5.0%R.H
Heat up time -40°C ~+100°C ,within 45 min
Pull down time +20°C ~-40°C , within 60 min
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Safety device (standard) NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C ~+35°C
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Controller LCD Touch Screen, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles



(3)KMH-S series

Model KMH-S series
150S 225S 408S 800S 1000S
Temp. range -70°C ~150°C
Interior sizel W(mm) 600 700 700 1000 1000
H(mm) 600 700 750 1000 1000
D(mm) 460 480 800 800 1000
Exterior size W(mm) 880 980 980 1280 1280
H(mm) 1730 1890 1940 2160 2160
D(mm) 1400 1460 1740 1750 1950
Power(KW) 5.8 6 7.5 12.8 12.8
Weight(KG) 280 330 450 550 650
Humidity uniformity ±3.0%R.H ±5.0%R.H
Heat up time -70°C ~+100°C ,within 60 min
Pull down time +20°C ~-70°C , within 80 min
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Safety device (standard) NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C ~+35°C
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Controller LCD Touch Screen, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles




6. Packing Info

We use standard inner box PP film and carton plywood for the packing.


AC380V 50HZ  3 phase Environment Temperature Humidity Chamber
