Product Details:
Payment & Shipping Terms:
|
| Product Name: | Temperature&Humidity Test Chamber | Brand: | Komeg |
|---|---|---|---|
| Application: | Laboratory, Testing Center，Electronics, Electrical Appliances, Energy, Communications And Other Industries | Warranty: | 12 Months Free Parts Warranty |
| Lead Time: | 30 Working Days Upon The Deposit | Trade Terms: | EXW, FOB, CIF, DDU, DDP |
| Temperature Range: | -40℃~ +150℃ | Humidity Range: | 20~98%R.H |
| High Light: | temperature and humidity chamber,humidity and temperature controlled chamber |
||

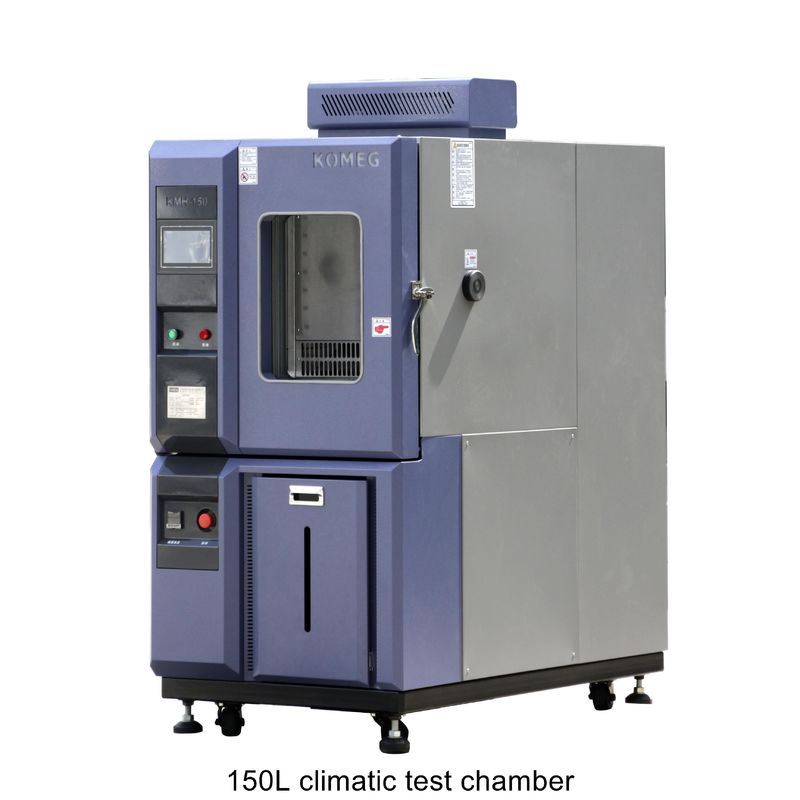

KOMEG KMH Programmable Temperature Environmental Test Chamber
1.Application:
Applicable to environmental adaptability and reliability testing in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc.
2. Company Info
KOMEG are a well established Environmental test chamber company, with over 26 years’ experience in developing, and building a range of specialized Instruments.
These include climatic test chamber, thermal shock test chamber, walk-in test chamber, drive-in test chamber, burn-in rooms,aging test chamber, drying ovens, salt spray test chamber and medical laboratory test chamber etc.
Now our products are widely used in some well-known companies,
such as LG, HUAWEI, FOXCONN, , UL NZ, SUZUKI, YUNORI, STC in Hong Kong, and in many universities in China, such as BUAA, PKU, etc.
3. Specification:
| Model | KMH- | ||||||||||||||
| 150R | 225R | 408R | 800R | 1000R | 150L | 225L | 408L | 800L | 1000L | 225S | 408S | 800S | 1000S | ||
| System | Balanced & Humidity Control System | ||||||||||||||
| Temp.Range | -20℃～150℃ | -40 ℃～+150℃ | -70℃～+150℃ | ||||||||||||
| Humidity Range | 20～98％R.H | ||||||||||||||
| Temp.constancy | ±0.5℃ ±2.6％R.H | ||||||||||||||
| Humidity constancy | ±2.5％R.H | ||||||||||||||
| Temp.uniformity | ±2.0℃ | ||||||||||||||
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H | ±3.0％R.H | ±5.0％R.H | ±3.0％R.H | ±5.0％R.H | |||||||||
| Heat up time | -20℃～+100℃ Within 35 min | -40℃～+100℃ Within 45 min | -70℃～+100℃ Within 60 min | ||||||||||||
| Pull down time | +20℃～-20℃ Within 45 min | +20℃～-40℃ Within 60 min | +20℃～-70℃ Within 75 min | ||||||||||||
Interrior material(CM) |
W | 60 | 70 | 70 | 100 | 100 | 60 | 70 | 70 | 100 | 100 | 70 | 70 | 100 | 100 |
| H | 60 | 70 | 75 | 100 | 100 | 60 | 70 | 75 | 100 | 100 | 70 | 75 | 100 | 100 | |
| D | 46 | 48 | 80 | 800 | 100 | 46 | 48 | 80 | 800 | 100 | 48 | 80 | 800 | 100 | |
Exterrior material(CM) |
W | 88 | 98 | 98 | 128 | 128 | 100 | 100 | 110 | 150 | 150 | 100 | 110 | 150 | 150 |
| H | 173 | 189 | 194 | 216 | 216 | 160 | 175 | 185 | 200 | 200 | 175 | 185 | 200 | 200 | |
| D | 140 | 146 | 174 | 175 | 195 | 98 | 108 | 128 | 128 | 148 | 108 | 128 | 128 | 148 | |
| Interior material | Stainless Steel Plate(SUS 304) | ||||||||||||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||||||||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||||||||||||
| Refrigeration system | Air Cooled( Water Cooled Type is option) | ||||||||||||||
| Hermetic compresssor,stage refrigeration system |
Hermetic Compressor,Cascsde Refrigeration CFC free refrigerant (HFC-507/HFC-23) |
||||||||||||||
| Controllor | LCD Toch panel,Chinese or English display selectabile Operation model /Program or fix point rinning Memory capacity ,120programs,1200steps,all repeat999cycles,part 99 cycless. |
PID Parameter 9set Accuracy /Temp.:0.1%of F.S±1 dight Input /Temp.:Pt-100/Humidity:Pt-100or1~5VDCV Comm.Port RS-232C or RS-485 (Software is option) |
|||||||||||||
| Safety Devices | No fuse breaker,over pressure,over heat and over current protectors for compressor,over temp.protector,over load protectorof fan,dry heat pr techto | ||||||||||||||
| Standard Accessories | Sightwindow*1,cable port(portΦ50mm)*1,shelves*2,chamberlamp*1,power cable 2m | ||||||||||||||
| Weight(Kg) | 240 | 280 | 400 | 500 | 580 | 250 | 300 | 420 | 530 | 600 | 330 | 450 | 550 | 650 | |
| Ambient Temp. | -5℃～+35℃ | ||||||||||||||
| POEWR | AC 380±10％ 50Hz 3 phase 4 wires+Groud Wires | ||||||||||||||
4. Feather:
1) Specializing in environmental test chamber for 26 years
2)Imported Tecumseh or Danfoss compressor
3) LED Touch Screen controller
4) One year free parts warranty
5) Steady lead time
6) High cost-effective
5. Detail
KMH-408L
KMH-408L
KMH-408L
KMH-408L
The compressor
Humidifier
circuit
Copper pipe 180 - degree turn
The compressor and the new technology of Copper pipe
The condenser
6. Certification and Feature:
* CE approved with 1 year warranty
* 33% energy saving than 2rd generation of KOMEG products.
* Working hours up to 4,320 hours testing without downtime.
* The ideal simulation test chamber for all heat and cold testing between -20 ºC and 150 ºC
* Well-suited for reliability testing based on current test standards in the temperature range of -20 °C to 150 °C and 20% to 98% RH.
* Meet all requirements for extreme testing and low temperature alternating.
7. Installation
1). Strictly refer to the instruction manual during installation, stop if improper installation happens.
2). Any questions, please feel free to contact us.
8. Packing and shipping
We have standard inner box and carton for the packing. Especially for the samples,
we will pack them in much safe to guarantee that you can receive a please.
Usually its LCL shipped by sea, and we support TNT,FedEx,UPS,DHL.for BL and documents sending.
