Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Power Supply: | AC 3 Phase 380V 60/50Hz |
|---|---|---|---|
| Temp. Range: | -20℃~+150℃ | Humidity Range: | 20~98%R.H |
| Heat Up Time: | -40℃~+100℃(within 45 Min) | Pull Down Time: | +20℃~-40℃(within 60 Min) |
| High Light: | temperature and humidity chamber,temperature test chamber |
||

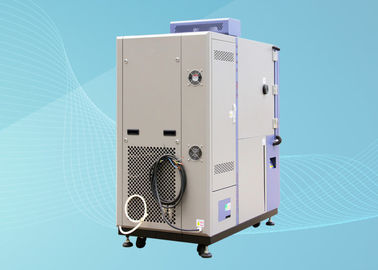

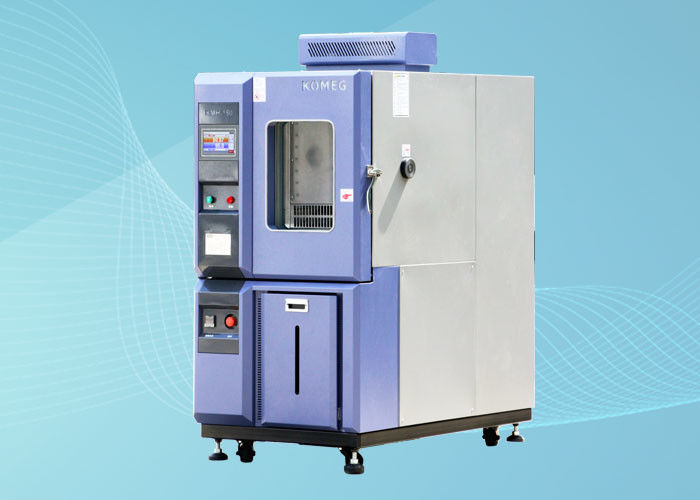

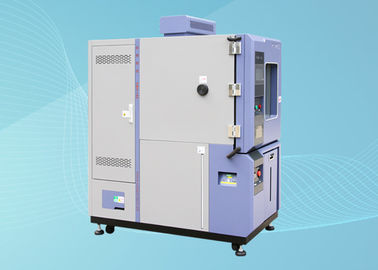

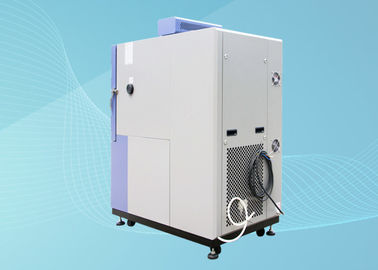

Customized Configurations Programmable Temperature Humidity Test Chamber with CE ISO Certified
Product Description
About Temperature and Humidity test machine applications :
It is applied to automotive parts testing, chemical material testing.
It is applied to test the materials in heat-resistance, cold-resistance.
It is simple to operate and program easy to edit.
Features
1. Customers can use the interface, integrated data logger and automatic control software programming and recording a wide range of options.
2. Each room has a safety test prior to work and has a CE test standard.
3.The cavity size and temperature range can be customized according to your requirements.
4. The temperature of the climate chamber is measured according to the relevant standard.
5. Each room has a safety test prior to work and has a CE test standard.
6.The cavity size and temperature range can be customized according to your requirements.
Fast and precise temperature control, no evaporator-dependent dry samples, no icing of the cooling unit, no dehumidification of the studio.
Specification
| Model | KMH-408R |
| Temperature range | -20°C ~150°C |
| Power(KW) | 5.8 |
| Humidity uniformity | ±3.0%R.H |
| Heat up time | -20°C ~+100°C |
| Pull down time | +20°C ~-20°C |
| Humidity Range | 20~98%R.H |
| Temp. constancy | ±0.5ºC |
| Humidity constancy | ±2.5%R.H |
| Temp. uniformity | ±2.0ºC |
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection |
| Interior material | Stainless Steel Plate(SUS 304) |
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) |
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool |
| Ambient Temp. | +5°C ~+35°C |
| Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires |
| Controller | LCD Touch Screen, Chinese or English display selectable |
| Operation model :Program or fix point running |
Optional accessories
1. Cable Port: Φ100mm cable port is available
2. Shelves
3.Ro-type water purifier:R-80/day
Provide to keep the humidifying heater and wet bulb wick free from scale.
4. Inner glass door with operation port
A glass door can be provided behind the main door so that specimens can be observed. Two operation ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door.
5 . Dehumidifier
The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (5℃ 5%RH) for electrostatic reliability tests.
6. Defrosting circuit
The chamber automatically detects and melts the frost on the evaporator when operating
Pre-Sales Service
1.supporting Inquiry
2.Consulting
3.Sample testing .
4.Visiting welcomed.
After-Sales Service
1.Reply within 48 hours and solution provide within 3 working days.
2.Offer operation video, English operation muanual and video-conference.
