Product Name: | Temperature And Humidity Test Chamber | Material: | SUS 304 Stainless Steel |
---|---|---|---|
Power: | Electronic | Temp. Range: | -20-150C |
Humidity Range: | 20~98%R.H | Heat Up Time: | -20 -100C Within 35 Min |
Controller: | 7-inch LCD Touch Panel | Weight(KG): | 160KG |
High Light: | humidity and temperature controlled chamber,temperature test chamber |

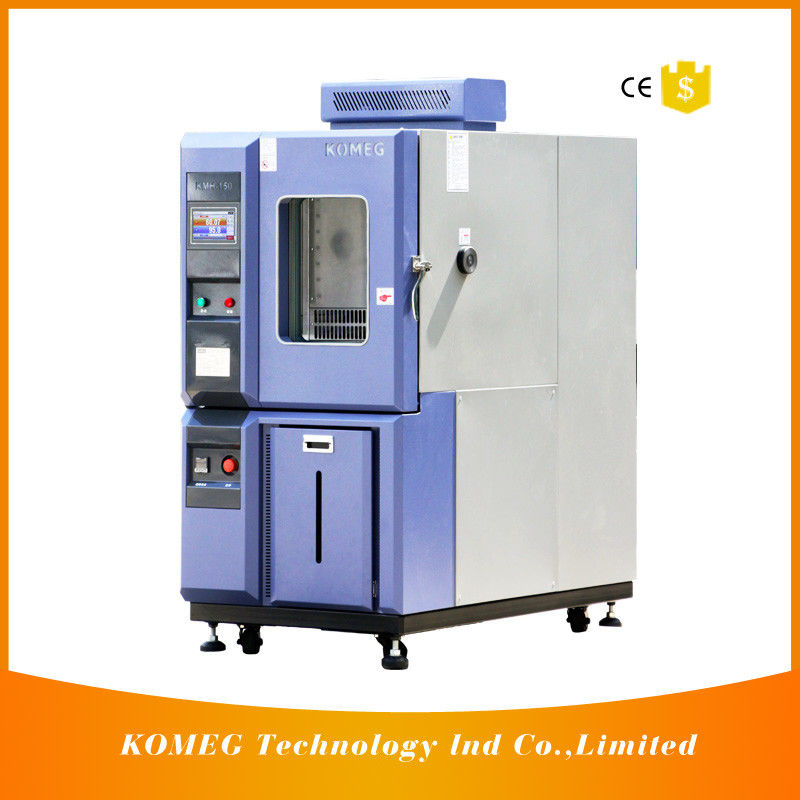

SUS 304 Stainless Steel Electrical Equipment Temperature And Humidity Test Chamber
SUS 304 Stainless Steel Electrical Equipment Temperature And Humidity Test Chamber is used to test stability and reliability of products by simulate different environment condition.
Application: electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.
Model | KMH- | ||||||||||||||
150R | 225R | 408R | 800R | 1000R | 150L | 225L | 408L | 800L | 1000L | 225S | 408S | 800S | 1000S | ||
System | Balanced & Humidity Control System | ||||||||||||||
Temp.Range | -20℃~150℃ | -40 ℃~+150℃ | -70℃~+150℃ | ||||||||||||
Humidity Range | 20~98%R.H | ||||||||||||||
Temp.constancy | ±0.5℃ ±2.6%R.H | ||||||||||||||
Humidity constancy | ±2.5%R.H | ||||||||||||||
Temp.uniformity | ±2.0℃ | ||||||||||||||
Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ±3.0%R.H | ±5.0%R.H | ±3.0%R.H | ±5.0%R.H | |||||||||
Heat up time | -20℃~+100℃ Within 35 min | -40℃~+100℃ Within 45 min | -70℃~+100℃ Within 60 min | ||||||||||||
Pull down time | +20℃~-20℃ Within 45 min | +20℃~-40℃ Within 60 min | +20℃~-70℃ Within 75 min | ||||||||||||
Interrior material(CM) |
W | 60 | 70 | 70 | 100 | 100 | 60 | 70 | 70 | 100 | 100 | 70 | 70 | 100 | 100 |
H | 60 | 70 | 75 | 100 | 100 | 60 | 70 | 75 | 100 | 100 | 70 | 75 | 100 | 100 | |
D | 46 | 48 | 80 | 800 | 100 | 46 | 48 | 80 | 800 | 100 | 48 | 80 | 800 | 100 | |
Exterrior material(CM) |
W | 88 | 98 | 98 | 128 | 128 | 100 | 100 | 110 | 150 | 150 | 100 | 110 | 150 | 150 |
H | 173 | 189 | 194 | 216 | 216 | 160 | 175 | 185 | 200 | 200 | 175 | 185 | 200 | 200 | |
D | 140 | 146 | 174 | 175 | 195 | 98 | 108 | 128 | 128 | 148 | 108 | 128 | 128 | 148 | |
Interior material | Stainless Steel Plate(SUS 304) | ||||||||||||||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||||||||||
Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||||||||||||
Refrigeration system | Air Cooled( Water Cooled Type is option) | ||||||||||||||
Hermetic compresssor,stage refrigeration system |
Hermetic Compressor,Cascsde Refrigeration CFC free refrigerant (HFC-507/HFC-23) |
||||||||||||||
Controllor | LCD Toch panel,Chinese or English display selectabile Operation model /Program or fix point rinning Memory capacity ,120programs,1200steps,all repeat999cycles,part 99 cycless. |
PID Parameter 9set Accuracy /Temp.:0.1%of F.S±1 dight Input /Temp.:Pt-100/Humidity:Pt-100or1~5VDCV Comm.Port RS-232C or RS-485 (Software is option) |
|||||||||||||
Safety Devices | No fuse breaker,over pressure,over heat and over current protectors for compressor,over temp.protector,over load protectorof fan,dry heat pr techto | ||||||||||||||
Standard Accessories | Sightwindow*1,cable port(portΦ50mm)*1,shelves*2,chamberlamp*1,power cable 2m | ||||||||||||||
Weight(Kg) | 240 | 280 | 400 | 500 | 580 | 250 | 300 | 420 | 530 | 600 | 330 | 450 | 550 | 650 | |
Ambient Temp. | -5℃~+35℃ | ||||||||||||||
POEWR | AC 380±10% 50Hz 3 phase 4 wires+Groud Wires |
→ Provides a simulated environment to common tests for electronic and industrial products.
→ Unique and compact design, top grade appearance, stable performance and easy operation
→ Specialize in environmental test chamber for 27 years
→Capable of testing large components, assemblies, and finished products
→Customized sizes and configurations available
→12 months warranties
→ Imported UP-10D Seamless Welding Machine, especially for copper pipe welding
GB/Bb T2423.2-89 high temperature test method
GB2423.1-89 test A: low temperature test method 6
GJB150.4-1986 test at low temperature
IEC60068-2-1 low temperature test method
IEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature
MIL - STD - 202G - 103B humidity test
IEC60068-2-30 humidity temperature cycle
GB/T2423.3 constant humidity heat test method
