| Volume: | 8.4-150m3 | Temperature Range: | -40℃~+85℃ |
|---|---|---|---|
| Standard: | CE, IEC, MIL | Warranty: | 2 Years |
| Humidity Range: | 25%~98%RH | Material: | Stainless Steel |
| High Light: | walk in humidity chamber,walk in climatic chamber |
||
| Overviews |

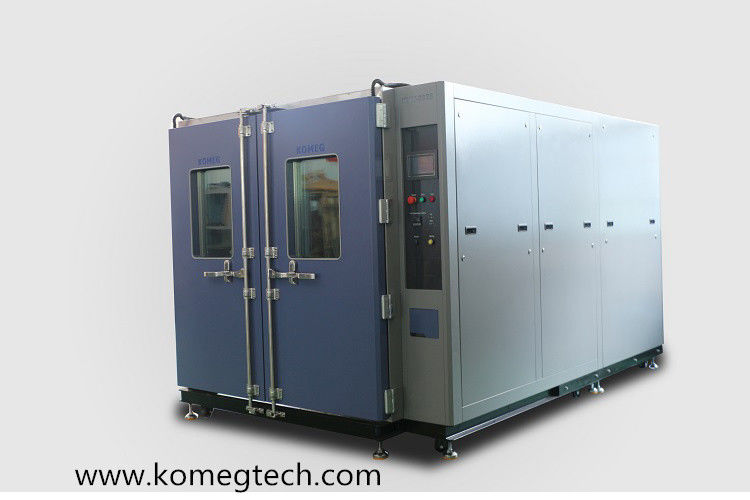

Walk in climate chamber is used to test various types of materials' tolerances under condition of heat, cold, dry,humidity.
For all types of electronic products quality inspection , electric appliance, andcommunication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries products.
| SPECIFICATIONS |
| SPECIFICATIONS | walk-in room/ walk-in chamber | ||||||
| Model | Walk in room- KMHW | ||||||
| 4 | 6 | 8 | 13 | 17 | 21 | ||
| Volume(m³) | 9 | 12.9 | 16.8 | 16.8 | 35.2 | 13.3 | |
| Interior Dimensions | W(mm) | 2100 | 3000 | 3900 | 3000 | 3900 | 4800 |
| H(mm) | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | |
| D(mm) | 2050 | 2050 | 2050 | 4300 | 4300 | 4300 | |
| Exterior Dimensions | W(mm) | 3250 | 4160 | 5050 | 5050 | 5050 | 5950 |
| H(mm) | 2350 | 2350 | 2350 | 2350 | 2350 | 2350 | |
| D(mm) | 2250 | 2250 | 2250 | 2250 | 4500 | 4500 | |
| Control System | Balanced Temperature & Humidity Control System | ||||||
| Temp. range | Maximum:80ºC,120ºC;Minimum:-60ºC,-50ºC,-40ºC,-30ºC,-20ºC,-10ºC,0ºC | ||||||
| Humidity Range | 10%,20%,30%~95% | ||||||
| Temp. constancy | ±0.5ºC | ||||||
| Humidity constancy | ±2.5%R.H | ||||||
| Temp. uniformity | ±2.0ºC | ||||||
| Humidity uniformity | ±5.0%R.H | ||||||
| Heat up time | +20ºC~+80ºC ,Within 60 min | ||||||
| Pull down time | +20ºC~-55ºC -40ºC-20ºC-10ºC ,Within 120 or 90 or 60 min | ||||||
| Interior material | Stainless Steel Plate(SUS 304) | ||||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||
| Insulation material | Rigid polyurethane foam | ||||||
| Door size (mm) | Single wing:W800*H1800;Double wing:W1600*H1800; | ||||||
| Safety Devices(standard) | No fuse breaker, over pressureover heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection |
||||||
| Standard accessories | Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicator | ||||||
| Refrigeration system | Water Cooled | ||||||
| Semi-hermetic compressor, single stage or cascade refrigeration system | |||||||
| CFC free refrigerant(HFC-507 and HFC-23) | |||||||
| Controller | Panel | 7-inch LCD Touch panel,Chinese or English display selectable | |||||
| Operation model | Program or fix point running | ||||||
| Memory capacity | 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles | ||||||
| Accuracy | Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit | ||||||
| Input | Temp.:pt-100, Humidity:pt-100 or ~5V DCV | ||||||
| Comm.port | RS-232 or RS-485 (Softawre is option) | ||||||
| Ambient Temp. | +5ºC~+35ºC | ||||||
| Wiring method | AC 380±10%50Hz ,3 phase 4 wires +Ground Wires | ||||||
| Note:1. We reserve the right to change specifications without prior notice | |||||||
| 2.Customized sizes and configurations available | |||||||
| Features |
1, Walk in Temperature Humidity Climatic Stability Chamber has a very wide range of controlling the temperature and humidity that can fulfill user’s needs. It is stable, balanced heating and humidification performance, , it also can be high accuracy and high stability for temperature and humidity control performance.
2, Walk in Temperature Humidity Climatic Stability Chamber is equipped with high-precision intelligent thermostat, controller of temperature and humidity using touch-screen display. Optional equiped with temperature and humidity records.
3, Refrigeration circuit of large Walk in Temperature Humidity Climatic Stability Chamber automatically
select to operate performance of refrigeration circuits, so that it starts cooling at high-temperature state.
4, Door of large Walk in Temperature Humidity Climatic Stability Chamber with large viewing window for observation
of the testing sample.
5, Walk in Temperature Humidity Climatic Stability Chamber is equipped with advanced security, protective
device leak circuit breakers, over-temperature protective device, lack phase protective devices and lack water protector.
