Product Details:
Payment & Shipping Terms:
|
| Product Name: | Programmable Walk-in Climatic Chambers | Application: | Reliability Testing, Research & Development Testing, Failure Analysis |
|---|---|---|---|
| Volume(M3): | 7392 Liter | Interior Size: | W 2100 × H 1600 × D2200 Mm |
| Temperature Range: | -50～+90℃ | Humidity Range: | 20～90%R.H |
| H.S. Code: | 90321000 | Delivery: | 42 Working Days |
| High Light: | walk in environmental chamber,walk in climatic chamber |
||

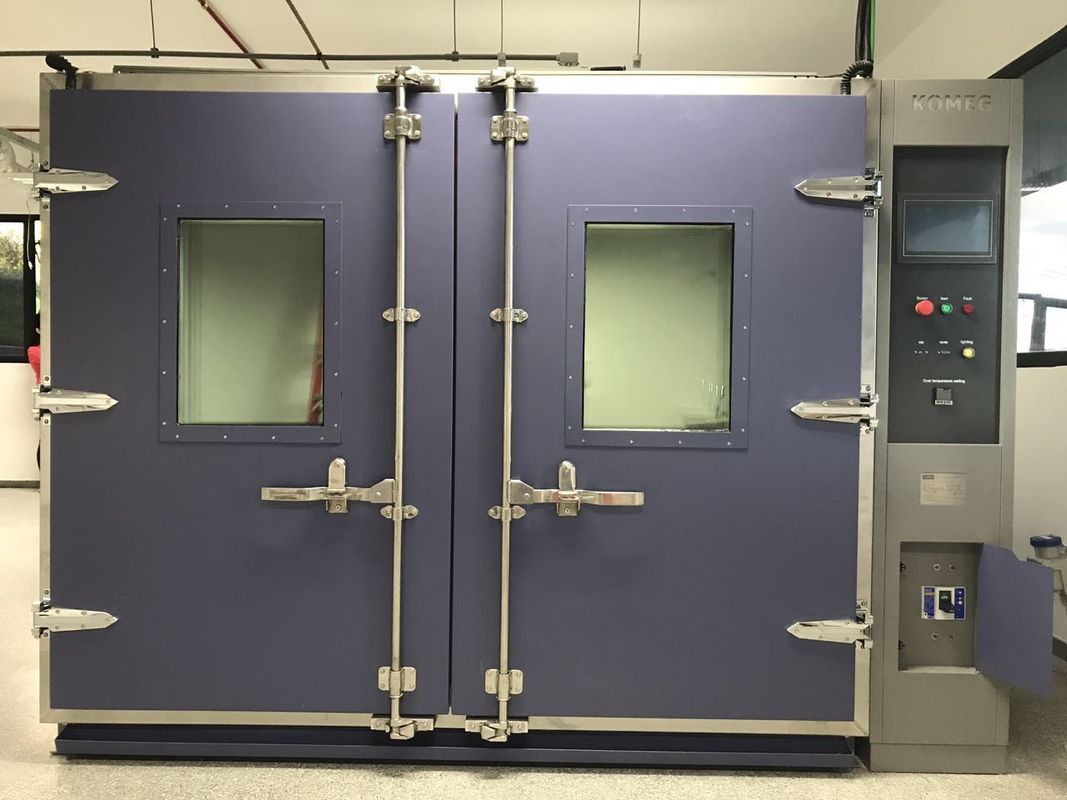

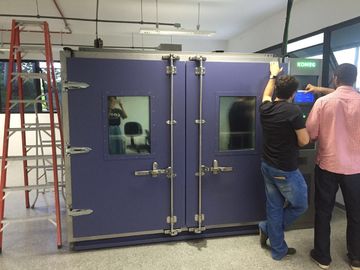

KOMEG Programmable Walk In Modular Climatic Chamber for large components
1. Walk-In Temperature and Climate Test Chambers
KOMEG Walk in climatic test Chamber serves as a test site for large components, assemblies and finished products. Used for various types of testing such as prototype evaluation, research & development testing, production testing, accelerated stress testing, reliability testing, failure analysis, and any other application where environmental simulation is needed. KOMEG manufactures both panel walk-in chambers and solid walk-in chambers and can be configured as temperature chamber or temperature humidity chamber.
2. Main Technical Parameters
| Model | KMH-7392S | |||||||
| Volume | 7392 liter | |||||||
| Interior Dimensions | W 2100 × H 1600 × D2200 mm | |||||||
| Exterior Dimensions |
W 3560× H 2000 × D 3250 mm |
|||||||
| Safety Devices(standard) | No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection | |||||||
| Standard accessories | Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator | |||||||
| Control System | Balanced Temperature & Humidity Control System | |||||||
| Refrigeration system | Water Cooled | |||||||
| Semi-hermetic compressor, single stage or cascade refrigeration system, | ||||||||
| CFC free refrigerant ( HFC-507 and HFC-23 ) | ||||||||
| Controller | Panel | 7-inch LCD Touch panel, Chinese or English display selectable | ||||||
| Operation model | Program or fix point running | |||||||
| Memory capacity | 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles | |||||||
| Accuracy | Temp.:0.1% of F.S ± 1 digit Humidity:0.1% of F.S ± 1 digit | |||||||
| Input | Temp.: pt-100, Humidity: pt-100 or ～5V DCV | |||||||
| Comm.port | RS-232 or RS-485 ( Softawre is option) | |||||||
| Temp. range | Maximum: 80 ºC,120 ºC; Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC |
|||||||
| Humidity Range | 10%, 20%, 30% ~ 95% | |||||||
| Temp. constancy | ±0.5 ºC | |||||||
| Humidity constancy | ±2.5%R.H | |||||||
| Temp. uniformity | ±2.0 ºC | |||||||
| Humidity uniformity | ±5.0%R.H | |||||||
| Ambient Temp. | +5 ºC～+35 ºC | |||||||
| Wiring method | AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires | |||||||
| Heat up time | +20 ºC～+80 ºC, Within 60 min | |||||||
| Pull down time | +20 ºC ~ -55 º, -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60 min | |||||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||||
| Exterior material | Baked Painting Steel Or Stainless steel ( SUS304) | |||||||
| Insulation material | Rigid polyurethane foam | |||||||
| Door size (mm) | Single wing: W800 x H1800; Double wing: W1600 x H1800; | |||||||
| Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available | ||||||||
3.Test condition
4. Description
Flexibility for structure
The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.
Widest test range, most customizable
5. Meet the standard
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50. 4(MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009(MIL-STD-810D) Damp Heat Test
6. Advantage
| 1.Energy-saving |
|
| 2.Easy operation |
|
| 3.High reliability |
|
