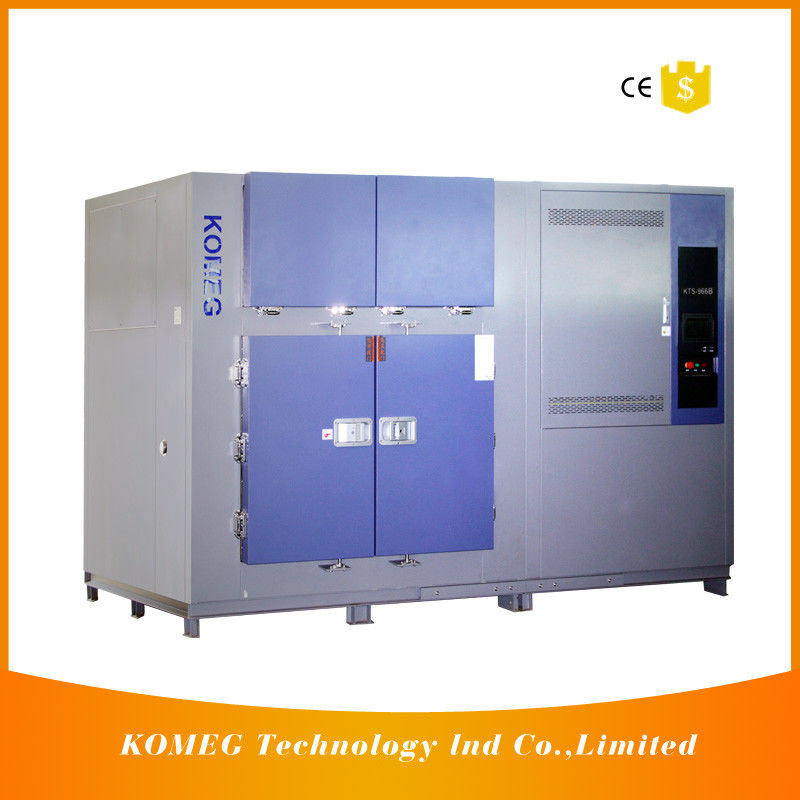

Laboratory Air Changing Ventilation Chamber Digital Temp Controlled Aging Chamber

Laboratory Air Changing Ventilation Chamber Digital Temp Controlled Aging Chamber
Laboratory Air Changing Ventilation Chamber Digital Temp Controlled Aging Chamber Laboratory Air Changing Ventilation Chamber Digital Temp Controlled Aging Chamber

Large Image :  Laboratory Air Changing Ventilation Chamber Digital Temp Controlled Aging Chamber

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: KOMEG
Certification: CE
Model Number: Burn-in room
Payment & Shipping Terms:
Minimum Order Quantity: ONE SET
Price: USD2000-USD20000/ piece
Packaging Details: Strong Plywood Case, Meet International Standard
Delivery Time: 25 to 35 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 pieces a year
Detailed Product Description
Usage: Universal Testing Machine Type: Air-ventilatiion Testing Machine
Controller: LCD Touch Panel Controller Insulation: PU&Fiberglass Wool
Service: Customization Air Change Rate: 5 To 200 (3 To 250) Times/ Hour
Warranty: 12 Months Temp. Range: Room Temp. +20~+100℃
Power: AC 380±10%50Hz ,3 Phase 4 Wires +Ground Wires Interior Material: Stainless Steel Plate(SUS 304)
High Light:

climatic test chambers

,

uv aging test chamber



Laboratory Air Changing Ventilation Chamber Digital Temp Controlled Aging Test Chamber





Product Description



Ventilation aging chamber for electrical insulating materials, heat resistance test, electronic parts, plastic products, aging tests of ventilation, assessment and determine their storage and use under conditions of high temperature environment adaptability sample simulation after measuring the performance of air at high temperature and atmospheric pressure in aging and unaged sample to be compared with the performance.





Application



Suitable for all kinds of electronic products,expecially for products with heating characteristics

Product and loading area should be separated

Large-scale production





Specifications



Specifications
Interior dimensions(W*H*D) mm 1500*1280*550
Exterior dimensions(W*H*D) mm 1720*1980*750
Temp. range Room Temp. +20~+100℃
Temp. constancy ±0.5℃
Temp. uniformity ±3℃
Test. capacity 88PCS/CYCLE(Custom made available)
Dimension 100W*100HJ*50D(MM)
Test range FAN(full machines number)
Voltage range 3~50V
Current range ±5%
Speed 0-15000RPM,±8%
The detection speed 7-12sec/cycle
Note: 1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available



Features





1. Standard combined design.



2. SUS#304 stainless steel,firm structure, waterproof design.



3. Suitable for test with large quantity and volume products.



4. Adopt imported large LCD Chinese/English microcomputer temperature controller, easy setting, strong function.



5. Standard RS-232C communication interface device.



6. Unique circulation duct design.



7. Comprehensive security control design, adopt intelligent PID+SST/SCR inverse two-way synchronous output,including the slope of the advanced control logic.



8. Heating box and explosion-proof heater design, advanced PID servo control, security, stability and reliability.



You are warmly welcomed to KOMEG.
We hope to be your reliable business partner in China.
For our new design can achieve high temp. Unifornity (± 0.5 C ).

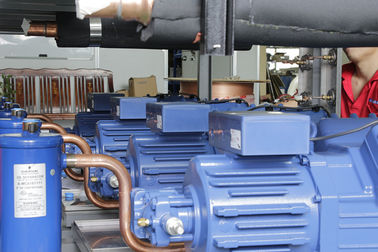

Tecumseh or Danfoss compressor for your alternative choice.
Germany imported wall material make sure the reliability and good performace.





Related Products



Programmable Temperature & humidity testing Chamber

Triple layer Type Temperature & humidity Chamber

Temperature & humidity Control Host

Air Thermal Shock Tester

Liquid Thermal Shock Tester

Salt Spray Tester

Walk In environmental Testing Room

Temperature & humidity & Vibration Combined Testing Chamber

Aging Oven Tester

Rain/Spray Testing Chamber

Burn-in testing equipment, Dust Tester

Steam Aging Tester, Dispensing Robots

Electromagnetic High Frequency Vibration Tester

Tensile Tester, Drop Tester, Precision Oven Tester, etc.





FAQ


Q1: What is the Warranty?



Generally, 12 months warranty. But for drying oven, the warranty is 18 months. If any quality problems on our side occured in this period ,we will take on the cost of shipping and component parts.



Q2: What's the delivery term?



Usually, 20 - 25 days after order confirmation. It will be took more time for customization service. If you are in urgent need, we can make special arrangement for you. It could be shipped by sea, by air or by air express.



Q3: What’s the payment term?



Accept different kinds of payment terms, such T/T, L/C, Paypal.



Q4: Is it ok for customization service?



Of course you can. We are manufacturer of environmental test equipment. Once with your detailed requests, we could make environmental test chamber accordingly.
