Temp Range: | -40℃ ~ +150℃ | Temp Deviation: | ≦ ± 2.0℃ |
---|---|---|---|
Pressure Range: | Normal Pressure ~1k Pa | Interior Material: | Stainless Steel |
Exterior Material: | Baked Painting Steel | Heat Up Time: | -20℃ ~ +100℃ Within 35 Min |
High Light: | climatic test chambers,Climatic Testing Chamber |
Low Pressure Temperature Moisture High Altitude Climate Test Chamber 12 months warranty
Can simulate the temperature /humidity condition of envieronment to evaluat potential success or failure of a product in the field. This kind of device come in a variety of sizes, from a small box that fits on the bench top to a room-sized chamber for large objects or for testing large batches of product simultaneously.
Temp. range | -40℃ ~ +150℃ |
Temp. deviation | ≤±2.0℃ |
Temp. fluctuation | ±0.5℃ |
Temp. uniformity | ≦2.0℃ |
Heating and cooling rate |
Heating up rate: from -40℃ to +100℃ 45min (no load ,enviromental temp +25℃) Cooling down: from +20℃ down to -40℃ approx 60min (no load,enviromental temp +25℃) |
Chamber size |
inner W 700 × H 750 × D800 mm Exterior Size W 900 × H 1785 × D 1860 mm |
Insluation box |
wall material: high-quality carbon steel inner wall material: SUS304 # matte stainless steel plate Insulation materials: rigid polyurethane foam insulation layer + glass fiber |
Door | Single door,Left open , heating wire is installed at the door frames to prevent condensation at low temperatures |
Obverstion Window | installed on the door,size: W210XH270MM multi-hollow electric insulation coated glass prevent condensation effectively |
Lighting Device |
1 PC 11W/AS220V installed in the inspection window |
Other specification
Ⅵ. Cooling System | |
1. Working mode | Mechanical compression refrigeration |
2. Compressor | Europe and the United States imported hermetic compressor |
3. Refrigerant | Environmental-friendly refrigerant: R404A |
4. Condenser | Shell and Tube condenser(air -cooled) |
5. Evaporator | Fin-type multi-stage automatic load capacity adjustment, No frost in long-term use of low temperature and humidity conditions |
6. Other accessories | Use internationally-known brand, such as high precise expansion valve, oil extractor, dryer and many other accessories. |
7.Refrigerant flow control | Adjust energy consumption output and control automatically to the refrigeration system. |
Application
It is suitable for tests the products of electrical, electronic, mechanical and other products, parts and materials under the conditions of high and low temperature and high temperature and humidity. For quality and reliability test of simulating temperature and humidity changes in electrical, electronic, mechanical and other products, parts and materials.
Standards Implement and Met
GB11159-89
GB10590-89
GB15091-89
GB/T2423.25-1992
GB/T2423.26-1992
GJB150.0-86
Specifications
1. Dedicatetouch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide rang of temperature and humidity environments
4. Capable of testing large components, assemblies, and finished products
5. Customized sizes and configurations available
6. One year warranties

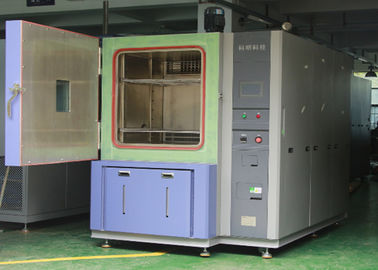

Photos show
