|Temperature Range:||-70℃ ～ +150℃||Humidity Range:||20%R.H～98%R.H|
|Chamber Size:||Workspace Volume: W 1000 × H 1000 × D 1000 Mm||Wall Material:||High-quality Carbon Steel With Static Color Spray|
|Evaporator:||Copper Aluminum Finned Evaporator||Frequency Range:||DC～3000 Hz|
|Max Displacement(p-p):||51mm||Axial Vibration Isolation Frequency:||2.5 Hz|
|Surrounding Environment:||Ensure Operating Environmental Temperature Range: 5〜35℃||Power Supply:||AC 3ψ4W 380V 50Hz (R.S.T.N Ground Wire)( Voltage Fluctuation≦±10%)|

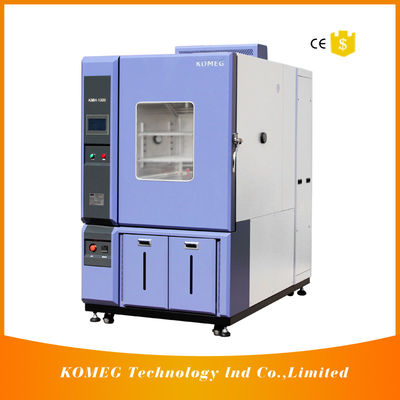

Humidity-Freeze Test Industry Used Combined Test Chamber With Temperature Humidity Cycling Test Equipment
This constant temperature humidity test chamber is mainly used to provide a constant temperature, and high low temperature humidity environmental test of the electronic parts, industrial materials, finished product research and development, production and testing.
Main Technical Parameters
|Heater||High-quality nickel-chromium alloy wire electric heater, non-contact control (SRR)|
|Compressor||BOCK Semi-hermetic compressors|
|Display Resolution||Temperature: + 0.01ºC; Humidity: + 0.1%; time: 1min|
|Cable port||Φ50mm*1 located on both sides(each*1) with rubber stopper and plastic cover|
|Temperature change rate||
Heating rate: -70℃ to +150℃ nonlinear 5℃/min no loadCooling rate: +150℃ to - 70℃ nonlinear 2℃/min no load
|Rated Sine Force(peak)||20 kN|
|Max Velocity||2.0 m/s|
|Body Size( No packing)(L×W×H)||1182mm×758mm×1052mm|
|Horizontal slide Table size (mm)||600×600 mm|
|Use Frequency (Hz)||2000 Hz|
|Fan power||7.5 kW|
|Wind pressure||3.5 kpa|
|Humidity||0～90% (No condensation)|
|One class resonant frequency||2500Hz±5%|
1. Imported high-precision microcomputer color touch screen temperature and humidity control, English switch.
2. Test hole (left side of the machine) 50mm, can be an external test power line or signal line.
3. Original European and American imports of low-noise low-noise low-temperature compressor.
4. Double high-temperature high-tensile seal between the door and the chamber, to ensure sealed.
5. Import (SUS # 304) stainless steel plate for inside and outside material the chamber.
6. Observation window with multi-layer hollow tempered glass, the inner adhesive film-type conductive film (can clearly observe the test process).
7. Safety protection device, the screen display immediately fault status and cut off the power to ensure the machine and test items safety when failure occurs, the product under test and the use of security.
1) More than 20 years manufacturer experience and 8 years export experience.
2) Acceptable customization for all kinds of special specification products.
3) We value very inquiry sent to us, ensure quick and competitive offer.
4) We put your order into our tight production schedule,ensure your punctual delivery time.
5) We are a sales team, with more than 4 years experience, more professional and reliable.
6) Welcome to view our factory at any moment .
1) We deal with your complains within 24 hours.
2) Training how to install the machine, training how to use the machine.
3) Engineers available to service machinery overseas.
4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be dedicated to provide high quality service and products for you.
Q:What's the delivery term?
A: It depends on the machines dimensions and weight,also according to customer's requirement. It could be shipped by sea, by air or by air express. Usually, the delivery time is about 15-20 working days after receipt of down payment. If you are in urgent need, we can make special arrangement for you.
Q:What’s the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: What's the warranty and after-sales service?
A: We provide free parts warranty for 12 months. Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory.
Q:Do you accept customization service?
A: Yes, the inner chamber dimensions can be customized as per your specific request.
