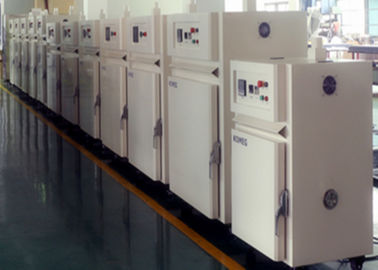

Laboratory Vacuum Drying Equipment With Digital Display / Control CE Approved

China Laboratory Vacuum Drying Equipment With Digital Display / Control CE Approved supplier
Laboratory Vacuum Drying Equipment With Digital Display / Control CE Approved supplier Laboratory Vacuum Drying Equipment With Digital Display / Control CE Approved supplier

Large Image :  Laboratory Vacuum Drying Equipment With Digital Display / Control CE Approved

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: KOMEG
Certification: CE,UL
Model Number: KOV-290

Payment & Shipping Terms:

Minimum Order Quantity: ONE SET
Price: USD3000-USD10000
Packaging Details: Strong Plywood Case, Meet International Standard
Delivery Time: 25-50 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets a year
Contact Now
Detailed Product Description
Usage: Universal Testing Machine Product Name: Vacuum Drying Equipment
Exterior Material: Stainless Steel Plate Standard: Standard And Customized
Temp. Range: 50º C-300º C Application: Widely
Power: AC 380V±10% 3Φ4wire 50Hz/60Hz Temp. Constancy: ±1.0 ºC
Color: Depend



Laboratory Vacuum Drying Equipment With Digital Display / Control CE Approved



Application





Lab vacuum oven have become very popular in recent times and specifically vacuum heat-treating is mandatory for parts that are manufactured without surface damage like oxidation. Rapid heating and cooling allows operators to quickly cycle through materials which greatly benefits the efficiency of the entire manufacturing process. By having absolute control of the temperature levels inside the vacuum oven then manufacturers can guarantee a higher level of quality assurance. The vacuum range is room pressure~-98Kpa, adjustable.





Key Specifications/Special Features:



  • Rated power: 2,200VA, ±10%

  • Temperature control range: 50 to 200℃

  • Temperature fluctuation: ±1℃

  • Vacuum degree: <133Pa

  • Operating room dimension: 56 x 60 x 64cm

  • Overall dimension: 72 x 82 x 175cm

  • Packing size: 89 x 92 x 193cm

  • Net/gross weight: 215/275kg



  • Application range:

  • This type of product is suitable for research institutes, hospitals and mining industries.
  • It specializes in the drying of heat-sensitive, easily oxidized and disintegrated substances, and can quickly dry product made of complex substances. The studio can be filled with noble gas



  • Structural characteristics

    • The microcomputer intelligent temperature controller is accurate and reliable

    • The heater controls temperature respectively is installed on the shelves in the dryer, it's heating takes less time and has a good uniformity

    • Studio is made of stainless steel plate and polished to ensure aesthetics and durability

    • The door is made of steel bulletproof double glass to ensure the safety of operator

    • The door seal is made of overall shape silicone rubber to ensure a high vacuum in the chamber. The tightness of the seal can be adjusted and the studio can be filled with noble gas

    • Vacuum uses microcomputer program to control digital display. The max program cycle can up to 99 times



Technical parameter





Specifications of drying oven
Model KOV-50 KOV-100 KOV-200 KOV-290 KOV-500
Interior size (W*H*D)mm 400*350*350 450*500*450 600*600*600 600*950*500 800*1050*600
Exterior size (W*H*D)mm 1010*650*760 1110*800*1100 1260*900*1100 870*1590*640 1160*1760*880
Capacity(KVA) 3.5 3.5 4.5 4.5 6
Power AC220V±10% 1Φ 50Hz/60Hz AC 380V±10% 3Φ4wire 50Hz/60Hz
Temp. range 50 ºC~ 200 ºC( 300 ºC)
Temp. constancy ±1.0 ºC
Temp. uniformity ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC)
Heat up time 50 ºC to 200 ºC within 50 min
Interior material Stainless steel plate
Exterior material Painted Stainless steel plate
Insulation material Glass wool
Safety devices No fuse breaker, over temp protection, ceramic fuse
Accessories Recorder, insolating layer

Note:

1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available



specifications



Model



KOV-600 KOV-720 KOV-1000 KOV-1800
Interior size (W*H*D)mm 1000*1000*600 900*1000*800 1000*1000*1000 1600*1400*600
Exterior size (W*H*D)mm 1360*1720*880 1300*1750*1000 1300*1750*1000 1600*1940*1200
Capacity(KVA) 6.5 7.5 8.5

9.5



Power

AC 380V±10% 3Φ4wire 50Hz/60Hz



Temp. range

50 ºC~ 200 ºC( 300 ºC)



Temp. constancy

±1.0 ºC



Temp. uniformity

±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC)



Heat up time

50 ºC to 200 ºC within 50 min



Interior material

Stainless steel plate



Exterior material

Painted Stainless steel plate



Insulation material

Glass wool



Safety devices



No fuse breaker, over temp protection, ceramic fuse

Accessories



Recorder, insolating layer

Note:

1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations
