Product Details:
Payment & Shipping Terms:
|
Humidity Range: | 10%,20%,30%~95% | Temp. Constancy: | ±0.5℃ |
---|---|---|---|
Temp. Range: | Maximum:80℃, 120℃; Minimum: -60℃, -50℃, -40℃, -30℃, -20℃, -10℃, 0℃ | Humidity Constancy: | ±2.5%R.H |
Humidity Uniformity: | ±5.0%R.H | Volume(M3): | 13 |
Interior Chamber Material: | SUS#304 Stainless Steel Plate | Product Name: | High Quality Walk In Environmental Chamber |
Usage: | Auto Testing Machine | Warranty: | 12 Months |
High Light: | climatic test chambers,Environmental Test Chamber |

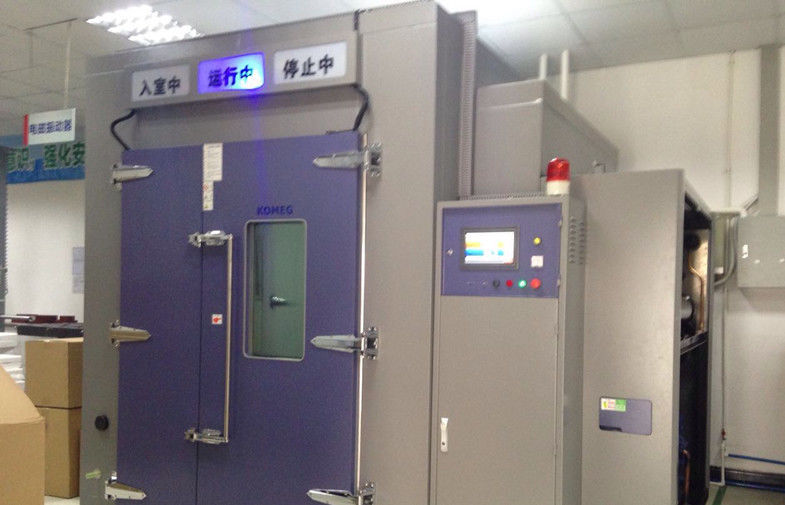

Moisture Testing Laboratory Room Climatic Temperature And Humidity Chambers
Applications
Moisture testing laboratory room temperature and humidity chambers, the internal volume may be randomly enlarged and contracted, which its design depends on the environmental requirement of the user. Do routine testing in high & low temperature and cryogenic storage, in order to make the analysis and evaluation of the products. Waik-in chamber simulate the effects that a range of temperature & humidity test environment, have on a products/material, such as telecommunications equipment, photo-voltaic solar panels that are exposed to outdoor temperature and humidity conditions. They have application in industries as disparate as food science, semiconductors, military quality assurance. A good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field.
Parameters
Inspect standard:JJF-1101,GB/T 10592,GB/T 10586
Testing standards:YD/T 2061,HB 7122.3,6783.7,GJB 5382.7,GJB 150,GB/T 2423,5170.2,5170.5,5179.2, ASTM E512,NF EN 60068-2-38,CNS 12565,12566,KS C0227,KS C022
|
|||
Model | KMHW-6 | ||
Volume(m³) | 6CBM | ||
Interior Dimensions | W3000*H2100*D2050mm | ||
Exterior Dimensions | W4160*H2350*D2250mm | ||
Safety Devices(standard) | No fuse breaker, over pressure,over heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection | ||
Standard accessories | Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicator | ||
Control System | Balanced Temperature & Humidity Control System | ||
Refrigeration system | Water Cooled | ||
Semi-hermetic compressor, single stage or cascade refrigeration system, | |||
CFC free refrigerant(HFC-507 and HFC-23) | |||
Controller | Panel | 7-inch LCD Touch panel,Chinese or English display selectable | |
Operation model | Program or fix point running | ||
Memory capacity | 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles | ||
Accuracy | Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit | ||
Input | Temp.:pt-100, Humidity:pt-100 or ~5V DCV | ||
Comm.port | RS-232 or RS-485 (Softawre is option) | ||
Temp. range | Maximum:80 ºC,120 ºC;Minimum:-60 ºC,-50 ºC,-40 ºC,-30 ºC,-20 ºC,-10 ºC,0 ºC | ||
Humidity Range | 10%,20%,30%~95% | ||
Temp. constancy | ±0.5 ºC | ||
Humidity constancy | ±2.5%R.H | ||
Temp. uniformity | ±2.0 ºC | ||
Humidity uniformity | ±5.0%R.H | ||
Ambient Temp. | +5 ºC~+35 ºC | ||
Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires | ||
Heat up time | +20 ºC~+80 ºC,Within 60 min | ||
Pull down time | +20 ºC~-55 ºC, -40 ºC,-20 ºC,-10 ºC,Within 120 or 90 or 60 min | ||
Interior material | Stainless Steel Plate(SUS 304) | ||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||
Insulation material | Rigid polyurethane foam | ||
Door size (mm) | Single wing:W800*H1800; Double wing:W1600*H1800; | ||
Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available |
Features
1) Stainless steel interior
2) Painted galvanized steel exterior for long life
3) MAP service doors are hinged (no tools or lifting)
4) Easy access to frequently checked refrigeration components
5) Reliable steam generator system for humidity applications
6) Adjustable vanes in supply grille allow directing of airflow as needed
Description

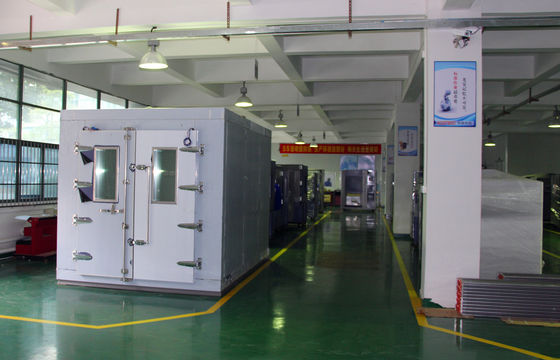

Most popular walk-in type
Services:
1,Pre-sales service
Before the purchase, our company will provide customers with detailed product-related information, and welcome you to visit the company and check the goods.
2,After-sales service
After the completion of the transaction, our company will be arranged different after-sales service according to the ease of the goods , and even arrange work engineers on-site service.
3,Warranty period
Our product warranty is 12 months and we are committed to responding within 48 hours of the problem, providing a solution.
Flexibility for structure
The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.
