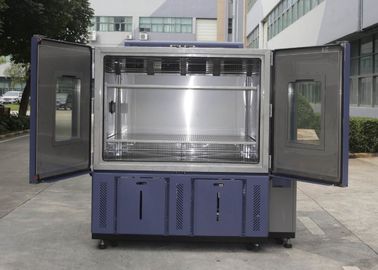

Programmable Climatic Test Chamber / Constant Temperature and Humidity Test Chamber KMH-1500L

Programmable Climatic Test Chamber / Constant Temperature and Humidity Test Chamber  KMH-1500L
Programmable Climatic Test Chamber / Constant Temperature and Humidity Test Chamber  KMH-1500L Programmable Climatic Test Chamber / Constant Temperature and Humidity Test Chamber  KMH-1500L

Large Image :  Programmable Climatic Test Chamber / Constant Temperature and Humidity Test Chamber KMH-1500L

Product Details:
Place of Origin: China
Brand Name: KOMEG
Certification: CE, ISO9001
Model Number: KMH-1500L
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Packed with film firstly, and then reinforced with wooden case for outer packing
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1, 000~1, 500 SETS / YEAR
Detailed Product Description
Material: Constant Temperature Humidity Chamber Temperature Range: -70 °C To 150/180 °C
Usage: Auto Testing Machine Interior Material: Stainless Steel Plate(SUS304)
Exterior Material: Baked Painting Steel Or Stainless Steel(SUS304) Ambient: +5 °C~+35 °C
High Light:

climatic test chambers

,

Environmental Test Chamber

Programmable Climatic Test Chamber / Constant Temperature and Humidity Test Chamber KMH-



1500L





Product Application:



Laboratory Programmable Climatic Constant Temperature and Humidity Test Chamber is for testing



material heat, cold, dry resistance, humidity resistance.Suitable for electronics, electrical appliances,



communications, instrumentation, vehicles, plastic products, metal, food, chemical,building materials,



medical, aerospaceand other products.


Product Features :


1.Nice and neat appearance, rectangle-shaped body, surface treated with powder coating and no-



   reaction handle. Easy to operate and maintenance, safe and reliable;


2.Double-layer-insulated airtight doors, to ensure better insulation effect, no-frosting at low temperature;


3.The French Tecumseh brand compressor / German GEA Bock / German is used for the



   circulation system of the compressor, capable of removing the lubricant between the condensation



   pipes and capillaries. The environment-protecting refrigerant R-404A, R23 is used;


4.Imported LCD display screen, capable of displaying the measured value as well as the set value and



   time, upto 269 groups of programs;


5.The control unit has the functions of multiples segment program editing, and of quick or slope control



   of temperature and humidity.





Specification



Capacity(L) 64L
Temperature range -40℃ ~ +150℃
Temp Deviation ≦ ± 2.0℃
Temp Fluctuation ±0.5℃
Heat up rate

Heating up rate: -40℃↑ +100℃ about 45min (no-load, ambient temperature +25℃)

Cooling rate: 20 ℃to -40℃about 60min (no-load, ambient temperature +25℃)

Humidity range 20%R.H~98%R.H
Door



Single door, left open. Heating wire was installed at the door frames to prevent condensation at low temperatures.

Humidity uniformity 3.0%RH (no-load)
Load Product calorific value 1000w
Humidifier

Water basin heating and humidification method;

Stainless steel sheathed heater;

Heater control: no-contact control (SSR);

Water level control device, heater anti-dry device



Electrical Control System



Control cabinet

A. Emergency stop switch

B. Power switch

C. Over-temperature protection

D.RS-485 interface

Protection System

A. Heater protection switch if no water

B. Humidifier protection switch if no water

C. Heater over-current circuit breaker

D. Humidifier over-current circuit breaker



Protection System

E. Circulating fan over-current overload protection

F. Compressor high voltage protection switch

G. Compressor overheat protection switch

H. Compressor over-current protection switch

I. Over-voltage under-phase protection switch

J. Circuit Breakers

K. Leakage switch

L Low humidifier protection

M. Water tank low water level warning

Controller noise isolation protection

N. Zero-crossing gate fluid power controller

Alarm indicator Equipment stops running and sends audible alarm when the above protection appears, meanwhile, fault, causes and solutions will be displayed on the screen.
Ambient temp. and humidity 5 ~ 35℃
Power AC 3ψ4W 380V 50Hz (R, S, T, N plus ground) (voltage fluctuation ≦ ± 10%)
Grounding Grounding resistance≦4Ω
Function Fault alarm and cause handling prompts, power failure protection, the temperature upper and lower limit protection, timer function (automatic start and automatic stop running), self-diagnostic function.
Network Connection

Can be connected to Ethernet via professional software,

Remote control & assistance function and data collection can be achieved through network,

Multi machine can be controlled simultaneously

Software environment Windows XP or Windows 7 / WIN8 operating syste







Standard Met and Implemented:



GB/Bb T2423.2-89 high temperature test method



GB2423.1-89 test A: low temperature test method



GJB150.4-1986 test at low temperature



IEC60068-2-1 low temperature test method



IEC60068-2-38 temperature cycle



IEC60068-2-78 constant humidity temperature



MIL - STD - 202G - 103B humidity test



IEC60068-2-30 humidity temperature cycle



GB/T2423.3 constant humidity heat test method





Technology Advantages: KOMEG provide you excellent test chambers



1. Trumphy processing machine and car coating technology let the tets chamber feel delicate touch and



    excellent user experience



2. Large glass window design, viewing angle in all directions, hollow electric plating film and anti-



   condensation design; built-in LED lights to facilitate the test sample state of real-time observation in the



   course of testing; double door design, the inner big glass door with hand-in holes for the convenient



   operating.



3. Material quality of inner box is SUS304 # mounted stainless steel imported, and outer box is steel plate



   and the paint process applies automobile coating technology. Box body is processed shape using



   Triumph processing machine, its shape is nice and neat.



4. 7 inch or 10 inch Full Color LCD touchscreen controller, simple operation, easy to edit programs. PID



   with automatic calculation function; self-diagnostic function, show failure message and failure shot



   solutions step by step.



5. An RS-232 and RS-485 communication interface, matching recorder, strong expandability. We also



   support remote control by PC via wifi or wire (recommended).



Programmable Climatic Test Chamber / Constant Temperature and Humidity Test Chamber  KMH-1500L 0





Packaging:



Programmable Climatic Test Chambers are covered with air bubble film before put them into the strong



plywood case, which not only has good shock absorption, impact resistance, heat sealing and also has



the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.





Programmable Climatic Test Chamber / Constant Temperature and Humidity Test Chamber  KMH-1500L 1
