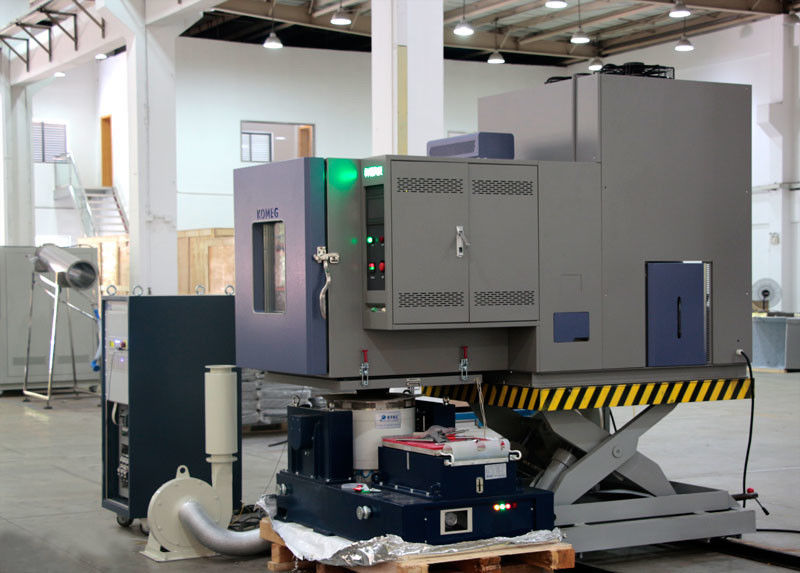

High Precision Environmental Test Chamber For Combined Vibration And Temperature And Humidity

China High Precision Environmental Test Chamber For Combined Vibration And Temperature And Humidity supplier
High Precision Environmental Test Chamber For Combined Vibration And Temperature And Humidity supplier High Precision Environmental Test Chamber For Combined Vibration And Temperature And Humidity supplier

Large Image :  High Precision Environmental Test Chamber For Combined Vibration And Temperature And Humidity

Product Details:

Place of Origin: China (Mainland)
Brand Name: KOMEG
Certification: CE , ISO9001
Model Number: KMVH-1000S

Payment & Shipping Terms:

Minimum Order Quantity: ONE SET
Price: USD 80000~150000 /SET
Packaging Details: wooden case
Delivery Time: 30~60days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 20 SETS PER QUARTER
Contact Now
Detailed Product Description
Temperature Range: -70℃ ~ +180℃ Temperature Deviation: ≦±2.0℃
Temperature Fluctuation: ±0.5 ℃ Workspace Volume: W 1000 × H 1000 × D 1000 Mm
Exterior Size: W 1550 × H 2080 × D 2500 Mm (appr.) Wall Material: High-quality Carbon Steel With Static Color Spray
Inner Wall Material: SUS304 # Matte Stainless Steel Plate Insulation Materials: Rigid Polyurethane Foam Insulation Layer + Glass Fiber.
Heating Rate: -70℃ To +180℃ Within 90 Min No Load Cooling Rate: +20℃ To - 70℃ Within 90 Min No Load



High Precision Environmental Test Chamber For Combined Vibration And Temperature And Humidity





Applications



This equipment complied with national standard , able to satisfy special testing requirements , is widely applied for electronic and electric products, automotive parts, components and materials by high low constant temperature, temperature change, shock, damp heat vibration etc combined environment simulation reliability test.





Vibration table configuration



Air-cooling series electrical vibration system

Water-cooling series electrical cooling system

Digital random vibration controller

Digital sine vibration controller





Moving method



High low temperature (damp heat ) test chamber with slide rail

Match with vibration table via moving high low temperature (damp teat) test chamber on slide rail

Vibration table with slide rail

Match with high low temperature (damp teat) test chamber via vibration table moving on slide rail.





Connection Method



Adopt connecting shaft connection method ( match with vertical vibration)

Vibration table get into the chamber via connecting shaft,match with the test chamber to reach combined testing effects.

Vertical,horizontal combined vibration,can customize design





. Performance

(Water cooled, Ambient temperature +20, no load )

1. Temperature range -70℃ ~ +180℃
2.Temperature deviation ≦±2.0℃
3.Temperature fluctuation ±0.5℃
4.Temperature change rate

Heating rate: -70℃ to +180℃ within 90 min no load

Cooling rate: +20℃ to - 70℃ within 90 min no load

5.Humidity range 20%R.H.~98%R.H
6. Humidity deviation ±2%RH
7. Humidity uniformity 3.0%RH
8.Humidity deviation ±2.0%RH






Electric Control System
Control panel

a. Emergency stop switch

b. Power switch

c. Over temperature protection device

d. RS-485 or RS-232 Interface

Safety protection device A. Sample over-temperature protection
B. Empty burn prevent protection switch
C. Motor overload protection
D. Compressor high pressure protection switch
E. Compressor over temperature protection switchF.
Compressor overcurrent protection switch

F.Compressor overcurrent protection switch

G. Overvoltage reverse phase protection switch

H. No fuse switch

I. Breaker

Alarm indication When the above protection, the device stops running, and sound and light alarm,At the same time in the controller display fault location and its causes and solutions.
Installation environment
Power Supply AC 3 ψ4W 380V 50Hz (R.S.T.N ground wire)( voltage fluctuation≦±10%)
Surrounding
environment

Ensure operating environmental temperature range: 5〜 35℃

Ground protection ground resistance ≦4Ω
P.S. 1. Please equip the above power demanded to the terminal box of the machine
control; user must prepare an exclusively no-fuse switch for the machine.
2. Please confirm whether it can enter the door or access elevators.
  3.This offer is for the price of the machine only and does not include the cost of the power cord, water tower and piping costs







System technical specification



Exciting force

Sin: 19600N (2000kg.f)

Random: 19600N (2000kg.f

Frequency Range



Vertical table: 2Hz~3000Hz

Rated acceleration



980m/s2100g (no load)

Rated speed



2m/s

Rated displacement



51mm(p-p)

Maximum load



300kg

Equivalent mass of

moving parts

Vertical table: 20kg

Power



AC 3ψ4W 380V±10%

Main technical specification



Output Power



20kVA

output voltage



100V

Input resistance



≥15kΩ

Signal to noise ratio



≥60dB

Harmonic distortion

(Resistance load)

<1.0%

Output voltage

measurement error

≤5%

Output current



To 150A step increase, up to 6000A

Cooling method



Forced air cooling

Input signal voltage



≤1.5Rms

Output current crest

factor

≥3
DC stability

The zero drift of the output terminal is not greater than

30mv/8h

Frequency range



5-3500Hz:±3dB mid-frequency gain:≥80

DC/AC conversion

efficiency

>90%

Load property



Resistive, capacitive, sensible arbitrary

Parallel machine

current imbalance

≤2.8%

Average trouble-free

working hours

>3500 hours

Power



AC 3 phase 50Hz





Features



1.With high precision perfect external design , external with double sides cold rolled plate electrostatic power coated materials, internal with SUS #304 high temperature resistant stainless steel.


2.Insulation material adopt fire resistant high strength PU polyurethane foaming thermal insulating material.


3.More than 20% energy saving is achieved & thanks to the introducing of Japan & German advanced refrigerator control technology.


4.Control system and control circuit components are introduced with famous brand.





High Precision Environmental Test Chamber For Combined Vibration And Temperature And Humidity
