High And Low Temperature Climatic Test Chamber With In - Hole Operation For Calibration 64L

China High And Low Temperature Climatic Test Chamber With In - Hole Operation For Calibration 64L supplier
High And Low Temperature Climatic Test Chamber With In - Hole Operation For Calibration 64L supplier High And Low Temperature Climatic Test Chamber With In - Hole Operation For Calibration 64L supplier

Large Image :  High And Low Temperature Climatic Test Chamber With In - Hole Operation For Calibration 64L

Product Details:

Place of Origin: China Dongguang
Brand Name: KOMEG
Certification: CE
Model Number: KMH-64L

Payment & Shipping Terms:

Minimum Order Quantity: ONE set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Supply Ability: 100 pcs/day
Contact Now
Detailed Product Description
Humidity Uniformity: 3.0%RH (no-load Color: Self Determination
Heat Up Rate: From -70℃ ↑ +180℃ Average 20℃/min No Load .(According To IEC60068-3 Standard ) Humidity Deviation: ±3.0%RH(>75%RH) ±5.0%RH(≤75%RH)
Interior Material: SUS 304

64L High and Low Temperature Climate Test Box With In-hole operation For Calibration



Product description:



Able to accurately simulate a wide range of complicated natural environments, and is suitable for reliability



test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental testing



equipment and test methods for the basic parameters of electric and electronic products under the condition



of humidity, low temperature, high temperature, and constant heat.



Specification



Capacity(L)

64L



Temperature range

L :-40℃ ~ +150℃

R : :-20℃ ~ +150℃

S:-70℃ ~ +150℃

Temp Deviation ≦ ± 2.0℃
Size

Workspace volume: W 400 × H 400 × D 400 mm



Exterior size: W 600 × H 1550 × D 1220 mm (about)

Temp Fluctuation ±0.5℃
Heat up rate

Heating up rate: -40℃↑ +100℃ about 45min (no-load, ambient temperature +25℃)



Cooling rate: 20 ℃to -40℃about 60min (no-load, ambient temperature +25℃)

Humidity range

20%R.H~98%R.H



Door



Single door, left open. Heating wire was installed at the door frames to prevent



condensation at low temperatures.

Humidity uniformity 3.0%RH (no-load)
Load

Product calorific value 1000w



Humidifier

Water basin heating and humidification method;



Stainless steel sheathed heater;



Heater control: no-contact control (SSR);



Water level control device, heater anti-dry device

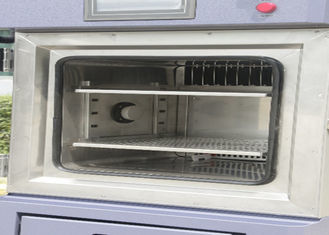

Product  picture
