KMH64R Simulated Climatic Test Chamber For Electronic Testing 1 Year Warranty

China KMH64R Simulated Climatic Test Chamber For Electronic Testing 1 Year Warranty supplier
KMH64R Simulated Climatic Test Chamber For Electronic Testing 1 Year Warranty supplier KMH64R Simulated Climatic Test Chamber For Electronic Testing 1 Year Warranty supplier

Large Image :  KMH64R Simulated Climatic Test Chamber For Electronic Testing 1 Year Warranty

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE/ROHS/FCC
Model Number: KMH 64R

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiation
Packaging Details: Packed in carton firstly, and then reinforced with plywood case for outer packing
Delivery Time: 30 working days after received 60% deposit
Payment Terms: L/C, D/A, D/P
Supply Ability: 50sets per month
Contact Now
Detailed Product Description
Color: Blue Temperature Range: -20-150
Humidity Range: 20-98% Warranty: 1year

                     KMH64R Simulated Climate Test Box for Electronic Testing

Why Choose KOMEG?
As a professional manufacturer, KOMEG specialized in Environmental Simulation test equipment for quality conscious people since 1990.
We supply high low alternating temp. humidity test chamber, Thermal shock test chamber, Temperature & Humidity test chamber with working temperature range from -70 up to +180 and humidity range running from 20 to 98%RH, High temperature test chamber with temperature range up to +300, Constant climate cabinet, Bench-top temperature & Humidity chamber, Walk-in type temperature & Humidity test chamber, Salt spray test chamber, vacuum drying oven etc.
Besides, we also offer custom made models in temperature ,temperature&humidity,different size & configuration to fulfill customers' special needs.

Benefits more than you can get from other supplier:
1)Delicate touch and excellent user experience
2)Unique and compact design, top grade appearance, stable performance and easy operation.
3)Can simulate a wide range of temperature and humidity environments
4)Capable of testing large components, assemblies, and finished products
5)Customized sizes and configurations available
6)1 year warranties

The technical parameter is as the following:

Environmental Temperature and Humidity Chamber
Secifications ( at +20ºC room temp. Or+25ºC water temp with empty load)
Model KMH-R series KMH-L series KMH-S series
64R 64L 64S
Temp. range -20ºC~150ºC -40 ºC~+150ºC -70ºC~+150ºC
Interior sizel W(mm) 400 400 400
H(mm) 400 400 400
D(mm) 400 400 400
Exterior size W(mm) 600 600 600
H(mm) 1526 1526 1526
D(mm) 1200 1200 1200
Power(KW) 4.5 4.5 4.5
Weight(KG) 150 150 150
Humidity uniformity ±3.0%R.H ±3.0%R.H ±3.0%R.H
Heat up time -20ºC~+100ºC,within 35 min -40ºC~+100ºC, within 45 min -70ºC~+100ºC,within 60 min
Pull down time +20ºC~-20ºC, within 45 min +20ºC~-40ºC , within 60 min +20ºC~-70ºC,within 80 min
Standard accessories Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m
Safety device (standard) No fuse breaker, over pressureover heat and over current protection for compressor,
Over temp. protect, over load protect of blower, dry heat protection
Control System Balanced Temperature & Humidity Control System
Refrigeration system Air Cooled (Water Cooled Type is option)
Hermetic compressor,Single stage refrigeration system
CFC-Free refrigerant(HFC-507/HFC-23)
Controller Panel:7-inch LCD Touch panel, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5ºC~+35ºC
Wiring method AC 380±10%50Hz ,3 phase 4 wires +Ground Wires
Note: 1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available

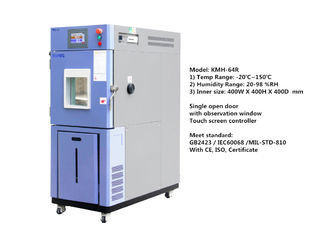

product picture:

KMH64R Simulated Climatic Test Chamber For Electronic Testing 1 Year Warranty



KMH64R Simulated Climatic Test Chamber For Electronic Testing 1 Year Warranty

KMH64R Simulated Climatic Test Chamber For Electronic Testing 1 Year Warranty

Our Services



Pre-Sales Service

*Inquiry and consulting support

*Offering quotation and specifications

*Provide test solution

*Welcome to visit our factory

After-Sales Services

We are here to help you. Services available:



•Replacement manuals

•Consumables and replacement parts

•On-site maintenance and repair

•Warranty support

•Over-the-phone service support and advice



If you have an KOMEG temperature humidity test chamber ,we will do our best to help you in whatever way we can.



•Manuals: PDF files of manuals for current models are available free.

•Please contact us to request a copy. Older and printed copies at additional charge.

•Service repair: We prefer you contact us direct at the factory with any problems you may be experiencing. We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs. Rarely can a local contractor get all that done for you as quickly as we can. We also guarantee the work done.
