Product Details:
Payment & Shipping Terms:
|
| Humidity Range: | 20～98％R.H | Controller: | Touch Screen |
|---|---|---|---|
| Working Volume: | 1500L | Temperature Uniformity: | ±2.0º C (with Empty Load) |
| Compressor: | Bizer Or Tecumseh Or Bock | Wiring Method: | AC 380±10％ 50Hz ,3 Phase 4 Wires +Ground Wires |
| Temperature Fluctuation: | ±0.2C | Temperature Uniformity: | ±1.5C |
| Humidity Resolution: | 0.1%RH | Humidity Fluctuation: | ±0.5%RH |
| High Light: | environmental test cabinet,environmental test equipment |
||

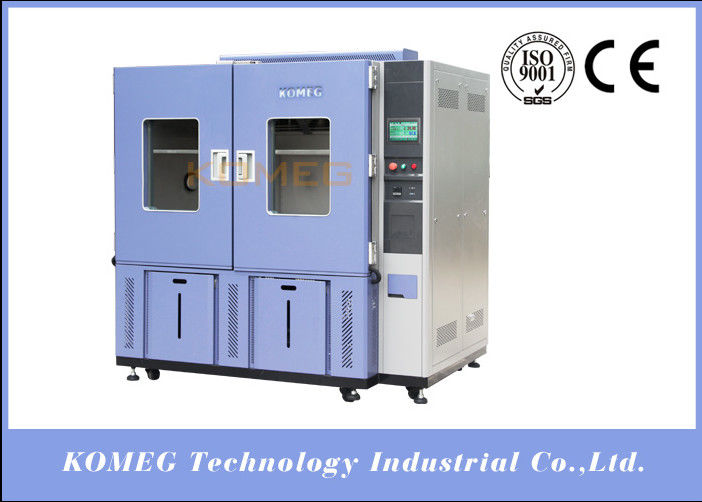

Constant Laboratory 1500L Environment Temperature and Humidity Control Environmental Climatic Test Chamber
Product description :
The programmable climatic test chamber is widely used in aviation, aerospace, information, electronics, instrumentation and other industries for the accelerated heat and humidity test of electrical products, materials, parts, equipment, etc. Damp heat test chamber, constant temperature and humidity chamber to evaluate the performance of the sample under given environmental conditions.
By testing your product with our Temperature humidity test equipment you can:
Environmental Test Chambers (ETC) are mainly and widely used for various types of testing such as prototype evaluation, research & development testing, production quality control testing, accelerated stress testing, reliability testing, failure analysis, and any other application where environmental simulation is needed.
Specifications:
| Model | KMH-1500L | ||||
| 1500L chamber volume | |||||
| Temp. range | -40°C ～150°C | ||||
| Display resolution | 0.1°C | ||||
| Temperature stability | High±0.5° C, low ±1.0°C | ||||
| Temperature uniformity | ±2.0°C | ||||
| Heat uptime | -40°C ～+100°C, within 45 min | ||||
| Pull downtime | +20°C ～-40°C, within 60 min | ||||
| Interior Dimension(mm) | W 1500 × D 1000 × H 1000 mm | ||||
| Exterior Dimension(mm) | About: W2010 x D1510 x H 2150 mm | ||||
| Interior material | Stainless Steel Plate ( SUS 304) | ||||
| Exterior material | Baked Painting Steel Or Stainless steel ( SUS304) | ||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||
| Total power | 7KW(heater 3KW included) | ||||
| Max current | 13.6A | ||||
| Ambient Temp. | +5°C ～+35°C | ||||
| Power Supply | AC 380V±10％ 50Hz, 3 phase 4 wires +Ground Wires | ||||
| Weight | 420KG | ||||
| Sight window size | 430 X 530mm | ||||
| Sample holder | 2 pcs | ||||
| Fittings | cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m | ||||
| Safety device (standard) | No fuse breaker, overpressure, over heat&over current protect, over temp. | ||||
| protect, overload protect for the blower, dry heat protect | |||||
| Control System | Balanced Temperature & Humidity Control (BTHC)System | ||||
| Refrigeration system | Air Cooled (Water Cooled is an option) | ||||
| Hermetic compressor | |||||
| Single-stage refrigeration system, | |||||
| CFC-Free refrigerant(HFC-507/HFC-23) | |||||
| Controller | 7-inch LCD Touch Screen panel | ||||
| Operation model: Program or fixpoint running | |||||
| Memory capacity :120programs,1200steps, | |||||
| All repeat 999 cycles, part repeat 99 cycles | |||||
|
Note: 1. We reserve the right to change specifications without prior notice |
|||||
Features:
Standards Implemented and met :
● GB-2423.1-2008 (IEC68-2-1) Test A: Low temperature test method.
● GB-2423.2-2008 (IEC68-2-2) Test B: High temperature test method.
● GJB360.8-2009 (MIL-STD.202F) High temperature life test.
● GJBl50.3-2009 (MIL-STD-810D) High temperature test method.
● GJBl50.4-2009 (MIL-STD-810D) Low temperature test method.
● GB2423.3-2008 (IEC68-2-3) Test Ca: Constant damp heat test method.
● GB2423.4-2008 (IEC68-2-30) Test Db: Alternating damp heat test method.
● GJBl50.9-2009 (MIL-STD-810D) Damp heat test method.
Standard configuration :
●Stainless steel exterior
●Energy-efficient refrigeration with exclusive electronic expansion valve system
●Specialized humidity generation and control
●Unique thermal break construction for extreme testing
●Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m
●No fuse breaker, overpressure, overheat and over current protection for compressor, Over temperature protection, overload protection of the blower, dry heat protection
Optional accessories :
●Cable Port: Φ100mm cable port is available
●Shelves
●Ro-type water purifier:R-80/day
Provide to keep the humidifying heater and wet bulb wick free from scale.
●Inner glass door with operation port
A glass door can be provided behind the main door so that specimens can be observed. Two operation ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door.
●Dehumidifier
The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (5℃ 5%RH) for electrostatic reliability tests.
●Temperature and humidity recorder
Temperature 1 pen and humidity 1 pen.
Temperature 3 dots and humidity 1 dot.
Temperature 6 dots and humidity 6 dots.
●Defrosting circuit
The chamber automatically detects and melts the frost on the evaporator when operating below 0℃.
●Liquid or infection
In order to rapidly decrease the temperature inside the chamber, a cylinder of liquid can be connected to the chamber
F. The energy-saving operation, the KM-5166 controller uses advanced control of an electronic expansion valve to save energy and improve control of the refrigeration system. Improvements in refrigeration and heater operation make the new generation of KOMEG environmental test chambers the most energy efficient ever.
| Minimum Order Qty: | 1 unit |
| Price: | Negotiable |
| Payment Terms: | T/T, negotiable |
| Warranty | 12 months on parts (excluding the damages caused by natural disasters, abnormal power, improper operation, and maintenance, etc) |
| Delivery Time: | 60 working days after received a 60% deposit |
| Packaging Details: | Packed in carton firstly, and then reinforced with plywood case for outer packing |
Our Services
1, Pre-sales service
Before the purchase, our company will provide customers with detailed product-related information, and welcome you to visit the company and check the goods.
2, After-sales service
After the completion of the transaction, our company will be arranged different after-sales service according to the ease of the goods, and even arrange work engineers on-site service.
3, the Warranty period
Our product warranty is 12 months and we are committed to responding within 48 hours of the problem, providing a solution.
