Product Details:
Payment & Shipping Terms:
|
Controller: | LED Touchscreen 7 Inch | Temperature Range: | -70 ℃ ~ +180 ℃ |
---|---|---|---|
System: | Balanced And Humidity Control System | Interior Material: | Stainless Steel Plate(SUS304) |
Exterior Material: | Baked Painting Steel Or Stainless Steel(SUS304) | Amibient Temp: | +5 °C~+35 °C |
High Light: | temperature and humidity chamber,temperature test chamber |

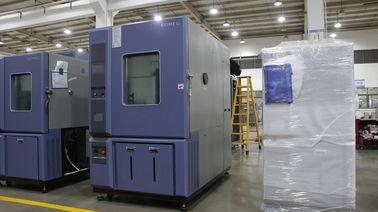

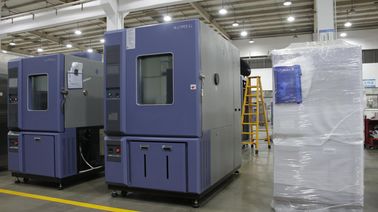

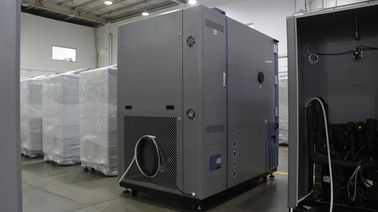

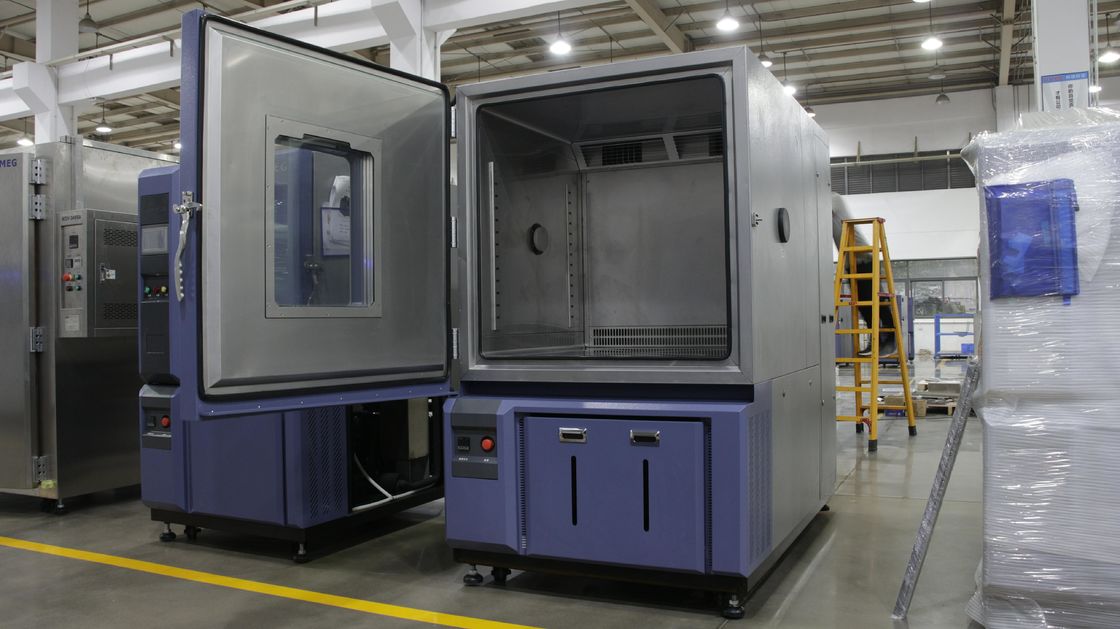

1000L Air cooling temperature humidity environmental test chamber
Product Application
Temperature and humidity test chamber is also called temperature and humidity
testing machine, constant temperature and humidity experimental chamber, programmable wet heat
alternating test chamber, or constant temperature machine. The Temperature and humidity test chamber
is used to inspect equipments quality and test performance of materials in various environments,
and all kinds of materials properties of heat resistance, cold resistance, dry resistance and
moisture resistance, which is fit for Electronics, electrical appliances, mobile phones, communications,
meters, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and
other products quality inspection.
Prouduct Feature
Using the internal pressure box, SUS304# stainless steel tank.
Various protection facilities, configure the wireless remote alarm device
Double door sealing structure, adjustable locking mechanism.
The box adopts LCD LCD touch screen, there is trouble to talk menu, the trouble of the interpretation of
the interpretation of the failure.
The refrigeration compressor and key accessories are all imported from international
brands.Environmental protection cold media refrigeration, in line with international environmental
protection convention requirements.
Various optional accessories: rs232/485 communication interface, record printer, remote temperature
control system (including communication software, computer printing, etc.).
Prouduct Specifications
1. Chamber | |
1.1 Workspace volume | IW 1000 × IH 1000 × ID 1000 mm |
1.2 Exterior size | EW 1200 × EH 2035 × ED 2050 mm(not including the machine protruding part) |
2. Temperature | |
2.3 Temperature range | -70 ℃ ~ +180 ℃ |
2.4 Temp Deviation | ≦±2.0℃ |
2.5 Temp Constancy | ±0.5℃ |
2.6 Temp Uniformity | ≦2.0℃ |
2.7 Ramping and soaking rate |
-70℃↑ +100℃ within 60 mins (no-load) +20℃↓ -70℃ within 80 mins (no-load) |
3. Humidity | |
3.1 Humidity range | 20%R.H.~98%R.H |
3.2 Control range |
|
3.3 Humidity deviation |
±3.0%RH(>75%RH) ±5.0%RH(≤75%RH) |
3.4 Humidity uniformity | ±3.0%RH(no-load) |
3.5 Humidity constancy | ±2.0%RH |
Temperature and humidity performance measurement comply with related regulation of IEC60068-3-5 standard; Sensors placed in the air outlet. |
Environmental test chamber Standard
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 humid testing
GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
B/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
B/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method
IEC60068-2-1.1990 low-temperature testing method
IEC60068-2-2.1974 high-temperature testing method
Display
