Single Door Small Industrial Oven With Over Temperature Protective Device 100 L

Single Door Small Industrial Oven With Over Temperature Protective Device 100 L
Single Door Small Industrial Oven With Over Temperature Protective Device 100 L Single Door Small Industrial Oven With Over Temperature Protective Device 100 L Single Door Small Industrial Oven With Over Temperature Protective Device 100 L Single Door Small Industrial Oven With Over Temperature Protective Device 100 L

Large Image :  Single Door Small Industrial Oven With Over Temperature Protective Device 100 L

Product Details:
Place of Origin: China
Brand Name: KOMEG
Certification: CE,UL
Model Number: KOV-100B
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1, 000~1, 500 SETS / YEAR
Detailed Product Description
Temperature Range: RT+15℃ ~ +300℃ Temperature Fluctuation: ±0.5℃
Inner Material: SUS #304 Stainless Steel Power: AC 3ψ 4W 380V 50Hz (R、 S、 T、 N+G ) (voltage Fluctuation ≦ ± 10%).
Inner Size: W500 Mm*H450 Mm*D450 Mm Outside Size: W770 Mm*H830 Mm*D810mm(Excluding The Protruding Part Of The Machine!)
High Light:

laboratory drying oven

,

large industrial ovens

100 L Single door small industrial oven high temperature with over temperature protective device


Product Overview

This series is applicable to the reliability test and production of industrial products, with the characteristics

of high temperature control accuracy and wide control range, performance index accords with

GB5170.2.3.5.6-95 "electrical and electronic products environmental testing equipment basic parameter

calibration method of high temperature test equipment” required standards.


Specifications


2.1 Test spaceAbout 100L
2.2 Interior sizeW500 mm*H450 mm*D450 mm
2.3 Exterior size

W770 mm*H830 mm*D810mm(Excluding the protruding part of the machine!)
Tips: For external dimensions, please confirm according to the final design!

2.4 Floor areaAbout 0.7m2;(confirm after place the order)

3. Main technical parameters


3.1 Test Conditions

Equipment cooling method: fresh air type
Measured at room temperature +25 ° C under no load, the temperature performance test is measured according to the relevant regulations IEC 60068 -3; the sensor is placed at the air outlet of the unit

3.2 Temperature rangeRT+15℃~+300℃
3.3 Temperature fluctuation≦±0.5℃
3.4 Temperature uniformity

±1.0℃ (RT ~ +100℃)
±2.0℃ (101 ~ +200℃)
±3.0℃ (201 ~ +300℃)

3.5Temperature deviation≦±2.0℃



3.6 Temperature change rate

Heat up rate:
RT+15 ~ +300℃ about 75min (no laod)

3.7 LoadNo
 Measured at room temperature +25 ° C under no load, the temperature performance test is measured according to the relevant regulations IEC 60068 -3; the sensor is placed at the air outlet of the unit.
3.8 Noise≦75 (dB) (The noise detection device is measured 1m away from the door of the chamber)
3.9 Meet the test standard

GB-2423.2-89(IEC68-2-2)Test B: High temperature test method.
GJB360.8-87(MIL-STD.202F)High temperature life test.
GJBl50.3(MIL-STD-810D)High temperature test method.

4. Chamber construction

4.1 Construction type

Integral box structure
The test box consists of three parts: the main insulation box, and the electrical control cabinet.

4.2 Thermal insulation structureOuter box color steel plate - intermediate insulation layer is temperature resistant foam insulation material - inner box SUS201 stainless steel
4.3 Outer box materialHigh-quality anti-corrosion electrolysis board, surface electrostatic powder paint.
4.4 Wall materialSUS201 stainless steel ,Thickness=1.0 mm;
4.5 InsulationRigid polyurethane foam insulation layer,Thickness=100mm, flame retardant grade A1.

4.6 Door


Single door, left open,Stainless steel handle ;
Rubber sealing strips.

4.7 Control panelTemperature control touch screen, start switch, emergency stop switch, buzzer
4.8 Unit part

Including :
Motor, Fresh air device piping, Cooling fan, Power distribution control cabinet

4.9 Distribution Cabinet

Switchboard
Small cooling fan
Main power leakage circuit breaker

4.10 Standard configuration

Sample holder:Two layers of mesh sample holder,,load capacity 30KG/layer ,
Mobile Casters with foot cups*4

4.11 Exhausting valveAdjustable








Features

GB-2423.2-89(IEC68-2-2)Test B: High Temperature Test

GJB360.8-87(MIL-STD.202F) High Temperature Life Test

GBJl50.3(MIL-STD-810D) High Temperature Test

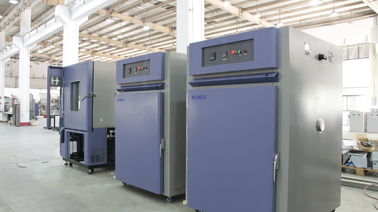

Meaningful picture

Single Door Small Industrial Oven With Over Temperature Protective Device 100 L 0


Packing and Shipment:


(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber

(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.

Single Door Small Industrial Oven With Over Temperature Protective Device 100 L 1


Our Services


1, Pre-sales service

Before the purchase, our company will provide customers with detailed product-related information, and

welcome you to visit the company and check the goods.

2, After-sales service

After the completion of the transaction, our company will be arranged different after-sales service

according to the ease of the goods , and even arrange work engineers on-site service.

3, Warranty period

Our product warranty is 12 months and we are committed to responding within 48 hours of the problem,

providing a solution.

Single Door Small Industrial Oven With Over Temperature Protective Device 100 L 2
