Product Details:
Payment & Shipping Terms:
|
| Interior Material: | Stainless Steel Plate(SUS304) | Exterior Material: | Baked Painting Steel Plate Or SUS304 |
|---|---|---|---|
| Controller: | Programmable LCD Touch Screen | Cooling Mode: | Water Cooled |
| Temp Range: | -40℃ ～ +85℃ | Temperature Fluctuation: | ±0.5℃(no-load) |
| High Light: | 1000L High Low Temperature Test Chamber,Temperature Test Chamber With Explosion Proof,1000L Explosion Proof Battery Testing Chamber |
||

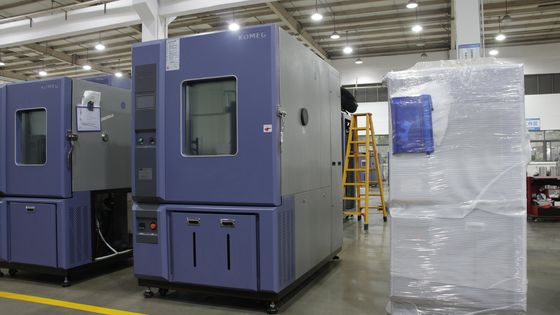

100L High Low Temperature Testing Equipment With Explosion Proof For Battery testing

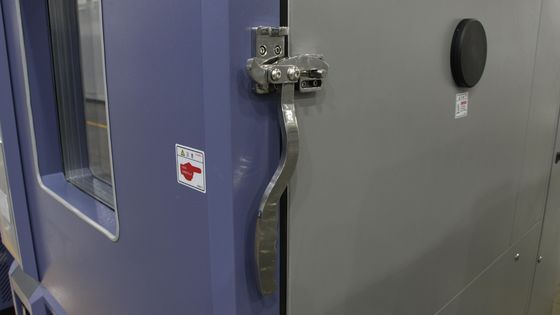

The chamber structure stainless steel plate is processed by CNC machining,the appearance is beautiful and dignified,using non-reaction mechanical handle, safe and easy operation;internal wall using matte stainless steel SUS#304,external wall apply A3 steel panel with spraying coat, improving the outside neatness;suitable for electrical, electronics, machinery and other products, parts, materials, etc.under high or low temperature conditions on the products,parts,materials quality and reliability testing.
Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc..
|
Performance: Air-cooled, Room temperature +25°C, no load |
|
| Temperature range | -40℃ ～ +85℃ |
| Temp.Fluctuation | ±0.5℃ |
| Temp.Uniformity | ±1.0℃ |
| Temp. Deviation | ±1.0℃ |
|
Ramping and soaking rate |
Heating rate:From -40℃ to +85℃ about45min Full load Cooling rate:From +20℃ to -40℃ about60min Full load |
|
Sample holder and fixture arrangement |
Sample rack layout according to the direction of the circulating wind,Keep the sample surface temperature uniform,And can meet the cooperation with charging and discharging equipment,Sample holder for easy operation,And can meet the requirements of over-current of charge and discharge equipment,Small internal contact resistance. |
| Load | 8* batteries and fixtures ,Total fever up to 200W,Total weight 130kg |
|
Samples and fixtures |
|
| Temperature performance measurement comply with related regulation of IEC60068-3 standard; Sensors placed in the air outlet. | |
|

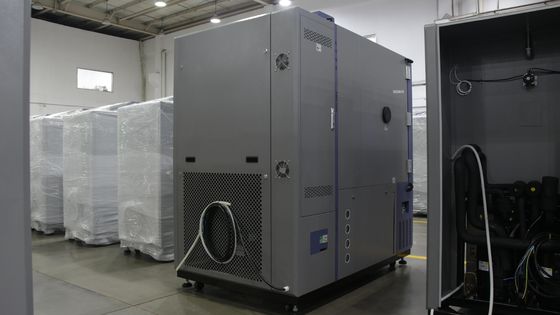

Overall structure and chamber was composed of three parts as below. Insulation box, separate refrigeration units, and electrical control cabinet. |
|
| Chamber size |
Workspace volume: W 1000 × H 1000 × D1000 mm |
| Insulation box |
wall material: high-quality carbon steel with static color spray inner wall material: SUS304 # matte stainless steel plate Insulation materials: rigid polyurethane foam insulation layer + glass fiber. |
| Door |

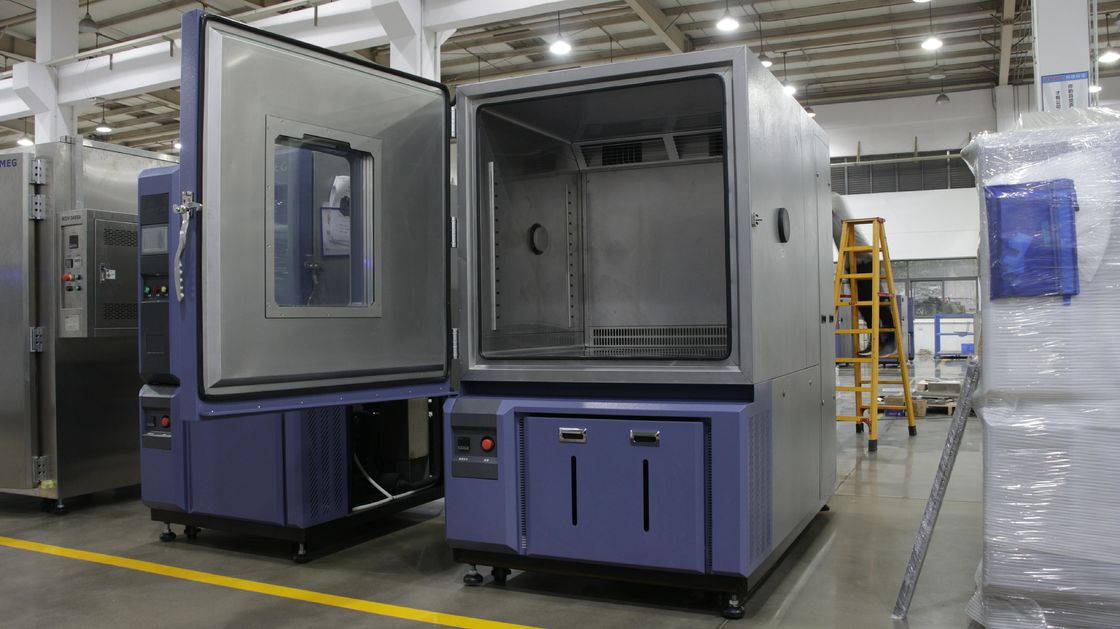

Single door, left open,Heating wire was installed at the door frames to prevent condensation at low temperatures. Two explosion-protected chains are added on both sides of the box door. The chain is longer. When the box is opened, it can be opened a bit, letting Quick release of internal air pressure, but no pop. |
| Observation window |
With 1 set (width × height) observation window,Glass enclosed stainless steel protective net, to prevent the explosion when flying glass (can not guarantee absolute safety). |
| Lighting device | LED Lighting devic *1 located on observation window. |
| Heating |
Quality nickel-chromium alloy wire electric heaters, Non-contact control mode (SRR). |
| Water outlet hole | Equipped with studio condensate and unit condensate drain holes. |
| Cable port | Φ100mm*8 located on both sides (each*1) with rubber stopper and plastic cover |
| Sample holder | Two layers of stainless steel sample holder, Carrying weight 30kg / layer |
| Mobile Casters | Mobile Casters *4 with foot cups |
|
1Electric control box |
Total power circuit breaker, over-temperature protection. |
|
Explosive pressure Release device |
When the pressure in the equipment or pipeline exceeds the pressure of the safety valve, it will automatically open and relieve pressure Equipped with: sensor switch, exhaust fan Function: a. When the test article in the box is exploded, there can be a pressure release pipe. b. Protect test equipment from damage caused by sudden pressure changes. c. Protection personnel. |
| Temperature Sensor | Mobile temperature sensor*8,Monitor the surface temperature of 8pcs test samples separately,When the temperature is stable,Can choose any sensor control. |
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 humid testing
GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
B/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
B/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method
IEC60068-2-1.1990 low-temperature testing method
IEC60068-2-2.1974 high-temperature testing method
Q1 : Can you customize the product?
A: Yes, we can customize any products according to requirements.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information about the parameters your required.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate; Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it; Thirdly, some of customized chambers we should to install and teach your team to operate.
We use PP Film wrapping the test chamber to protect the test chamber from moisture or being scratched first, then use strong plywood case for easyload and transport, and to keep the chambers from potential crash or impact.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
