Product Details:
Payment & Shipping Terms:
|
| Material: | PVC Material | Temperature Range: | 35±1℃～50±1℃ |
|---|---|---|---|
| Volume: | 270L | Air Compressor: | 1/2 HP |
| Power: | AC220V 50Hz | Heater: | 7KW+0.75KW |
| Warranty: | 12 Month Warranty | ||
| High Light: | salt spray test equipment,salt spray testing machine |
||

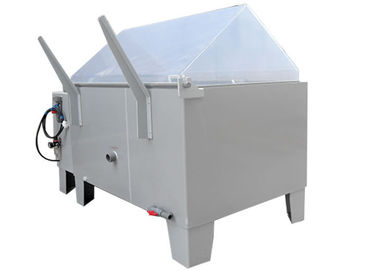

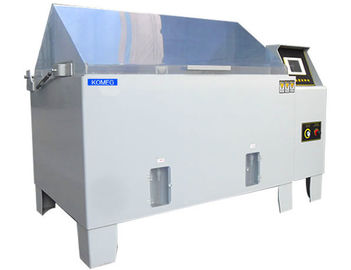

ASTM B117Standard CASS Copper accelerated acid salt spray test chamber for surface corrosion resistance testing
Introduction
KOMEG offers the newest and most modern salt fog testing chambers for your testing requirements. KOMEG salt spray test chambers are offered in 60 Liter, 270 Liter, 800 Liter and 960 Liter models and are cost effective solutions to accelerated corrosion testing of samples in salt fog. Models have an uncomplicated design that has optimized the open area to maximize the number of test coupons while providing headroom for testing large and bulky objects.
Ergonomic design
The KOMEG Salt Spray Chambers are floor standing units with lockable wheels (big models) to allow easy and secure repositioning. Height and reach distances provide easy access for loading and unloading coupon samples into removable slotted racks. An optional reinforced false floor is available to easily locate bulky and heavy test items.
Accessibility
The Salt Spray chambers have an uncomplicated design that optimizes the open area to maximize the number of test samples while providing ample room for testing large and bulky items.
Visibility
There are two kinds of material for the gabled canopy. One is the transparent material for the small model allowing full visibility inside the chamber. The other is the fully insulated covering with inspection window that will ensure the chamber achieves maximum operating temperature if the chamber is located in a cool laboratory environment.
Features
1, Interior and exterior use hard PVC, anti-corrosion, anti-aging with smooth and beautiful surface
2, Cover use hard transparent PMM or hard PVC, can view specimen status anytime
3, Fine glass nozzle ensures uniform diffusion of spray and not being blocked by crystal, which further maintain standard and quality of continuous test.
4, Spray time is adjustable
5, High precision temperature controller with digital display introducing P.I.D. automatic tuning control.
6, Double over heating protection and low water level alarm ensures operation safety.
7, Demist function: water sealed chamber cover
8, Comply with international standard like ISO 9227, ASTM B117, CNS, JIS, DIN, GB, BS, IEC, MIL, etc.
Specifications
| Model | HL-1000-SS | HL-160-NS | HL-90-BS | HL-60-SS |
| Interior dimensions(W*H*D)mm | 1600 x 600 x1000 | 1600 x 500 x1000 | 900 x 500 x 600 | 600 x 400 x 450 |
| Exterior dimensions(W*H*D)mm | 2250 x 1360 x 1220 | 2240 x1500 x1600 | 1460 x1280 x 910 | 1130 x1070 x 630 |
| Volume(L) | 960 | 800 | 270 | 60 |
| Heater | 15KW+1KW | 15KW+1KW | 7KW+0.75KW | 3KW+0.75KW |
| Air compressor | 3HP | 2HP | 1/2HP | 1/2HP |
| Temp. range | 35ºC～50ºC | |||
| Power | AC220V 1Φ 50Hz | |||
| Test Applicable | NSS, ACSS,CASS,CORK | |||
Salt Spray Test Chamber System Diagram
Salt Spray Testing working Principle
Packing Info: PP film and strong plywood case:
