| Internal Volume: | 1000L | Temp. Rate Of Change: | 15 ºC /Min |
|---|---|---|---|
| Temperature Range: | -70 ºC～+100 ºC( Rapid Temp Change -55 ºC～+85 ºC Full Linear Control) | Cooling Mode: | Water Cooled |
| Controller: | 7 Inch Digital Touch Screen | Power: | AC 380V/50Hz |
| High Light: | Thermal Cycle Chamber,temperature cycling chamber |
||

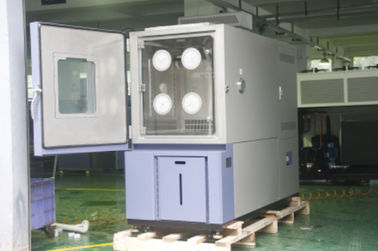

Large Capacity Thermal Cycling Chamber with 7 Inch Digital Touch Screen
Applications :
Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spare parts, particularly applies to environmental stress screening test (ESS)
Environmental stress screening (ESS) refers to the process of exposing a newly manufactured or repaired product or component (typically electronic) to stresses such as thermal cycling and vibration in order to force latent defects to manifest themselves by permanent or catastrophic failure during the screening process. The surviving population, upon completion of screening, can be assumed to have a higher reliability than a similar unscreened population.
ESS can be performed as part of the manufacturing process or it can be used in new product qualification testing.
ESS Testing Purpose
Testing at the physical environmental conditions (shock, vibration, temperature, altitude, humidity, etc.) that simulate those encountered over the operational life of the component. Random vibration and temperature cycling have proven to be the most successful forms of ESS in terms of effective flaw precipitation.
Advantages:
Rational Construction and fast cooling rate
Frequency conversion control of wind speed.
Adopts international brand of imported parts for cooling system to improve operation reliability
Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
Standards Implemented and Met
GB10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
| Specifications | |||||||
| Model | ESS-SL | ||||||
| 225SL5 | 225SL10 | 408SL5 | 408SL10 | 1000SL5 | 1000SL10 | 1000SL15 | |
| Working Chamber Volume(L) | 225 | 408 | 1000 | ||||
| Temp Rate of Change( ℃/Min) | 5 | 10 | 5 | 10 | 5 | 10 | 15 |
| Performance | -70℃～+100℃ | ||||||
| Rapid Temp Change -55℃～+85℃ Full Linear Control | |||||||
| Humidity Constancy | ±0.5℃ | ||||||
| Temp Constancy | ±3.0℃ | ||||||
| Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel | ||||||
| Interior Material | Stainless Steel Plate(SUS 304) | ||||||
| Insulation Material | Rigid Polyurethane Foam | ||||||
| Safety Devices | over pressure,over heat and over current protection for compressor, over temp. protection, | ||||||
| Compressor | Semi-Hermetic Compressor | ||||||
| Cooling Mode | Water Cooled | ||||||
| Control system | Balanced Temperature & Humidity Control System(BTC type) | ||||||
| Heater | Iron-chrome wire heater | ||||||
| Blower | Centrifugal Blower | ||||||
| Observation Window | Glass incorporating heat generator | ||||||
| Temp Sensor | Pt-100 | ||||||
| Controller | Touch screen programmable controller | ||||||
| Ambient Temp. | +5℃～+35℃ | ||||||
| Power | AC 380V/50Hz 3phase 5 wires+ Ground wire | ||||||
|
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||||
| Specifications | ||||||
| Model | ESS-LL | |||||
| 225LL5 | 225LL10 | 408LL5 | 408LL10 | 1000LL5 | 1000LL10 | |
| Working Chamber Volume(L) | 225 | 408 | 1000 | |||
| Temp Rate of Change( ℃/Min) | 5 | 10 | 5 | 10 | 5 | 10 |
| Performance | -70℃～+100℃ | |||||
| Rapid Temp Change -40℃～+85℃ Full Linear Control | ||||||
| Humidity Constancy | ±0.5℃ | |||||
| Temp Constancy | ±3.0℃ | |||||
| Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel | |||||
| Interior Material | Stainless Steel Plate(SUS 304) | |||||
| Insulation Material | Rigid Polyurethane Foam | |||||
| Safety Devices | over pressure,over heat and over current protection for compressor, over temp. protection, | |||||
| Compressor | Semi-Hermetic Compressor | |||||
| Cooling Mode | Water Cooled | |||||
| Control system | Balanced Temperature & Humidity Control System(BTC type) | |||||
| Heater | Iron-chrome wire heater | |||||
| Blower | Centrifugal Blower | |||||
| Observation Window | Glass incorporating heat generator | |||||
| Temp Sensor | Pt-100 | |||||
| Controller | Touch screen programmable controller | |||||
| Ambient Temp. | +5℃～+35℃ | |||||
| Power | AC 380V/50Hz 3phase 5 wires+ Ground wire | |||||
|
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
||||||
Structure:
Overall structure, new test chamber designed very easy to operation and maintenance:
Water and electricity system separation design;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
Material:
Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
Controller:
7 inch Digital Touch Screen
127 program, running for extremely long time 999 hours per segment, maximum 3200 times circulation
support RS485,LAN (internet access), GPRS (mobile phone) etc. communication mode. Convenient for remote monitoring and data sampling.
Parts and its brands:
Standrad Accessories:
Sight window *1 (Adiabatic glass window)
cable port(diameter 50mm)*2,
Samples shelves *2 sets
Chamber lamp *1
Power cable: 2 meters long
