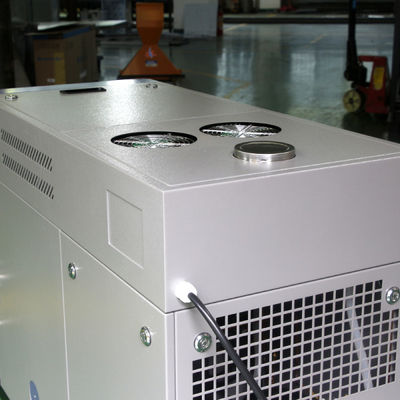

Stainless Steel Benchtop Environmental Testing Chamber For Auto Parts KMH-36L

Stainless Steel Benchtop Environmental Testing Chamber For Auto Parts KMH-36L
Stainless Steel Benchtop Environmental Testing Chamber For Auto Parts KMH-36L Stainless Steel Benchtop Environmental Testing Chamber For Auto Parts KMH-36L Stainless Steel Benchtop Environmental Testing Chamber For Auto Parts KMH-36L Stainless Steel Benchtop Environmental Testing Chamber For Auto Parts KMH-36L

Large Image :  Stainless Steel Benchtop Environmental Testing Chamber For Auto Parts KMH-36L

Product Details:
Place of Origin: China
Brand Name: KOMEG
Certification: CE, , ISO
Model Number: KMH-36L
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 7000USD~ 10000USD
Packaging Details: acked with film firstly, and then reinforced with wooden case for outer packing
Delivery Time: 20 days upon your deposit
Supply Ability: 50 sets per month
Detailed Product Description
Work Space Volume: 300 X400 X300mm Standard And Customized: Customized
Warranty: 15 Months Compressor: Danfoss Or Tecumseh
Temperature Range: -40 ~ 150 ℃ Refrigeration System: Air Cooled
Exterior Material: Baked Painting Steel Or Stainless Steel(SUS304) Package: Plywood
High Light:

environmental test cabinet

,

environmental test equipment



KMH-36L Stainless steel Benchtop Environmental Test Chamber for auto parts testing

Applications

Benchtop Environmental Test Chamber Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc.

 Features
1) The ideal simulation test chamber for all heat and cold testing between -40 ºC and 180 ºC temperature range
2) Well-suited for reliability testing based on current test standards  in the temperature range of -40 °C to 180 °C and 10% to 98% R.H.
3) Meet all requirements for extreme testing and low temperature alternating climate profiles from -70 °C - 180 °C with humidity

Standard configuration
● Sight window*1,  cable port(portΦ50mm)*1,   shelves*2,    chamber lamp*1,  power cable *2m
● No fuse breaker, over pressure,over heat and over current protection for compressor,
Over temperature protection, over load protect of blower, dry heat protection


Optional accessories
● Cable Port: Φ100mm cable port is available
● Shelves
● Ro-type water purifier:R-80/day
Provide to keep the humidifying heater and wet bulb wick free from scale.
● Inner glass door with operation port
A glass door can be provided behind the main door so that specimens can be observed. Two operation ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door.
● Dehumidifier
The rotation regenerating dehumidifier M-120 ensures precise control of  low humidity (5℃ 5%RH) for electrostatic reliability tests.
● Temperature and humidity recorder
Temperature 1 pen and humidity 1 pen.
Temperature 3 dots and humidity 1 dot.
Temperature 6 dots and humidity 6 dots.
● Defrosting circuit
The chamber automatically detects and melts the frost on the evaporator when operating below 0℃.
● Liquid   or   infection
In order to rapidly decrease the temperature inside the chamber, a cylinder of liquid can be connected the chamber.


Standards Implemented and met
●  GB-2423.1-89(IEC68-2-1)Test A:Low Temperature Test
●  GB-2423.2-89(IEC68-2-2)Test B:High Temperature Test
●  GJB360.8-87(MIL-STD.202F) High Temperature Life Test
●  GBJl50.3(MIL-STD-810D) High Temperature Test
●  GJBl50.4(MIL-STD-810D) Low Temperature Test
●  GB2423.3-93(IEC68-2-3)Test Ca:Constant Heat Test
●  GB2423.4-93(IEC68-2—30)Test Db:Damp Heat Alternative Test
●  GJBl50.9-93(MIL-STD-810D)  Damp Heat Test

Technical Specification:

Model KMH-36L
36L chamber volume
Temp. range  -40°C ~150°C
Display resolution 0.1°C
Temperature stability High±0.5°C ,low ±1.0°C
Temperature uniformity  ±2.0°C
Heat up time  -40°C ~+100°C,within 45 min
Pull down time  +20°C ~-40°C,within 60 min
Humidity range 20~98%R.H,(standard),   '10~98%R.H,(with humidifier)
Humidity constancy ±2.5%R.H
Humidity uniformity ±3.0%R.H
Interior Dimension(mm) 300W*400H*300Dmm
Exterior Dimension(mm) 460W*780H*1020D
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Total power   4.5KW(heater 3KW included)
Max current 13.6A
Water Consumption 0.7L/hr
Ambient Temp. +5°C ~+35°C
Power Supply   AC 380V±10% 50Hz ,3 phase 4 wires +Ground Wires
Weight  100KG
Sight window size 430*530mm
Sample holder  2 pcs
Fittings cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m
Safety device  (standard)

No fuse breaker,over pressure,over heat&over current protect,over temp.
protect, over load protect for blower, dry heat protect

Control System Balanced Temperature & Humidity Control (BTHC)System
Refrigeration system Air Cooled (Water Cooled is option)
Hermetic compressor

Single stage refrigeration system,


CFC-Free refrigerant(HFC-507/HFC-23)
Controller

7-inch LCD Touch Screen panel


Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles

Note: 1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available




Packaging:

Programmable Climatic Test Chambers are covered with air bubble film before put them into the strong plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.



Installation environment
Distance from the wall to both sides and rear of chamber more than 800mm, to the front more than 1500mm. Provide independent power distribution switchgear and humidification condensate drains, and external power connector device is necessary
Ground level, well-ventilated , non- flammable, explosive, corrosive gases and dust
No strong electromagnetic radiation nearby
With floor drain ( less than 2 meters from the refrigeration unit )
Venue floor load capacity : not less than800kg/m2
Leave adequate space for maintenance







Why Choose KOMEG?



Company information:
Being a first-class supplier and reliable partner, we are certified to ISO 9001 and got CE approval for all our products. All equipment are 7 x 24 hours tested before delivery. That explains why Komeg is the private brand of choice for many well-known brand enterprises, and also one of the very few designated suppliers who were recognized by many top 500 enterprises. Let Komeg's 26 years of professional experience work for you too.




Stainless Steel Benchtop Environmental Testing Chamber For Auto Parts KMH-36L 0

Stainless Steel Benchtop Environmental Testing Chamber For Auto Parts KMH-36L 1

Stainless Steel Benchtop Environmental Testing Chamber For Auto Parts KMH-36L 2


 Stainless Steel Benchtop Environmental Testing Chamber For Auto Parts KMH-36L 3

 Stainless Steel Benchtop Environmental Testing Chamber For Auto Parts KMH-36L 4
