Programmable Temp Humidity Environmental Test Chamber Air / Water Cooled

Certification
Good quality Temperature Humidity Chamber for sales
Good quality Temperature Humidity Chamber for sales
Fast delivery and quality products.

—— Gozia

Friendly and pleasant cooperator, "I like the factory, I like the design, I like the workstyle"

—— Wagner

The design and quality impress me a lot.

—— Mr Yee

" A trustworthy supplier of climatic test chamber".

—— Denis

I'm Online Chat Now

Programmable Temp Humidity Environmental Test Chamber Air / Water Cooled

China Programmable Temp Humidity Environmental Test Chamber Air / Water Cooled supplier
Programmable Temp Humidity Environmental Test Chamber Air / Water Cooled supplier Programmable Temp Humidity Environmental Test Chamber Air / Water Cooled supplier Programmable Temp Humidity Environmental Test Chamber Air / Water Cooled supplier Programmable Temp Humidity Environmental Test Chamber Air / Water Cooled supplier

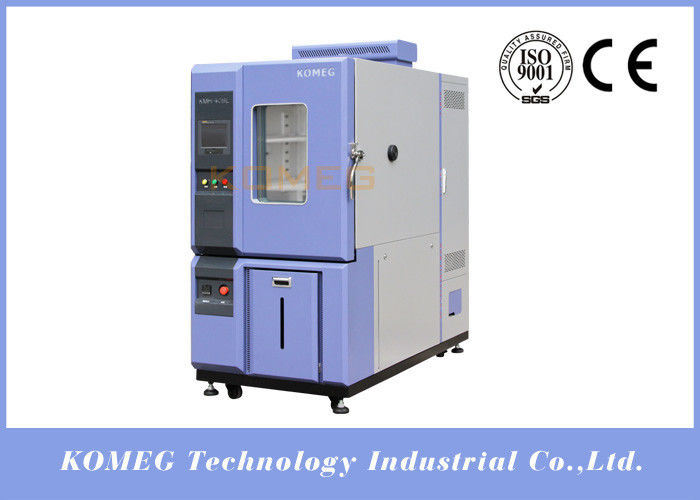

Large Image :  Programmable Temp Humidity Environmental Test Chamber Air / Water Cooled

Product Details:

Place of Origin: guangdong, China
Brand Name: KOMEG
Certification: CE,ISO
Model Number: KMH-408S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Each set protected with resin fiber and PP film, then put into strong plywood case with operation mannual inside.
Delivery Time: 35 days upon your deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 600 / set / year
Contact Now
Detailed Product Description
Power: 3 Phase 4 Wires+Groud Wires Warranty: 1 Year
Temp.constancy: ±0.5º C Controller: LED Touch Screen
Temp Range: -70 ~ +150°C Humidity Range: 20 To 98%RH





Programmable Temp Humidity Environmental Test Chamber Air / Water Cooled



Product Description



Manufactured samples, specimens, or components are placed inside the chamber and subjected to one or more of these environmental parameters to determine reliability or measure after-effects such as corrosion. In the case of machinery such as internal combustion engines, byproducts such as emissions are monitored.





Technical specifications



Model KMH-S series
150 S 225 S 408 S 800 S 1000 S
Temp. range -70°C ~150°C
Interior size W(mm) 600 700 700 1000 1000
H(mm) 600 700 750 1000 1000
D(mm) 460 480 800 800 1000
Exterior size W(mm) 880 980 980 1280 1280
H(mm) 1730 1890 1940 2160 2160
D(mm) 1400 1460 1740 1750 1950
Power(KW) 5.8 6 7.5 12.8 12.8
Weight(KG) 250 300 420 530 600



Technical Parameters



Humidity uniformity ±3.0%R.H ±5.0%R.H
Heat up time -40°C ~+100°C ,within 45 min
Pull down time +20°C ~-40°C , within 60 min
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Safety device (standard) NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C ~+35°C
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Controller LCD Touch Screen, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles



Detail Image



Programmable Temp Humidity Environmental Test Chamber Air / Water Cooled

Programmable Temp Humidity Environmental Test Chamber Air / Water Cooled



 Feature



A. Reliability testing based on current test standards in the temperature range of -70 °C to 180 °C and 10% to 98% R.H.

B. The ideal simulation chamber for all heat and cold testing in the traditional temperature range -70 ºC and 150 ºC.

C. Custom-made machine are welcome and we can provide optional accessories satisfied your special requirements.

D. Improved programming and data collection via computer



Standard



●  GB-2423. 1-89 (IEC68-2-1)Test A: Low Temperature Test

●  GB-2423. 2-89 (IEC68-2-2)Test B: High Temperature Test

●  GJB360. 8-87 (MIL-STD. 202F) High Temperature Life Test

●  GBJl50. 3 (MIL-STD-810D) High Temperature Test

●  GJBl50. 4 (MIL-STD-810D) Low Temperature Test

●  GB2423. 3-93 (IEC68-2-3)Test Ca: Constant Heat Test

●  GB2423. 4-93 (IEC68-2—30)Test Db: Damp Heat Alternative Test



●  GJBl50. 9-93 (MIL-STD-810D) Damp Heat Test



Design



As with the wide variance in size, a number of user control options are available, ranging from simple analog indicators up to more modern digital readouts with LCD displays. Chambers may be computer programmable, and networked or Web-enabled test chambers are also available



Packing & Delivery



Packing details:
We use pp film wrapping the test chamber to protect the test chamber from moisture or being scratched first, then use strong plywood case for easyload and transport, and to keep the chambers from potential crash or impact.
