Power: | Electronic | Temperature Range (Testing Space): | 35±1℃~50±1℃ |
---|---|---|---|
Testing Room Relative Humidity: | > 85% | Usage: | Salt Spray Test Chamber |
PH: | 6.5~7.2; 3.0~3.2 | Air Compressor: | 1/2 HP |
Power Supply: | AC220V 50Hz | Volume: | 270L |
Test Applicable: | NSS, ACSS,CASS,CORK | Package: | Plywood |
High Light: | salt spray testing machine,salt spray test equipment |
Metal Materials / Auto Parts Industrial Salt Spray and Salt Fog Corrosion Testing Chamber
Product Description
The machine applies to the protective layer of metal materials, auto parts, electronic components, and industrial products of neutral, acid and copper accelerated salt spray corrosion test, etc., and the applicable standards for the GB/T2423.17 and GJB150 the test requirements
Testing Services
KOMEG test chamber provides environmental simulation testing to meet your testing needs from product qualification testing, overflow testing and /or third party product validation. Capabilities include Temperature, Humidity, and/or Vibration, Thermal Shock, Burn-in, Altitude, Vibration, Shock, Salt Spray, Cyclic Corrosion test and Drop Testing.
Specifications:
Specifications (Note: We reserve the right to change specifications without prior notice) |
||||
Model |
HL-160-NS |
HL-120-BS |
HL-90-BS |
HL-60-SS |
Interior dimensions(W*H*D)mm |
1600 X 500 X 1000 |
1200 X 500 X 800 |
900 X 500 X 600 |
600 X 400 X 450 |
Exterior dimensions(W*H*D)mm |
2240 X 1500 X 1600 |
1410 X 1280 X 880 |
1460 X 1280 X 910 |
1130 X 1070 X 630 |
Test space Volume(L) |
800 |
480 |
270 |
108 |
Salt Water Tank Volume (L) |
60 |
40 |
25 |
15 |
Heater |
15KW+1KW |
11KW+1KW |
7KW+0.75KW |
3KW+0.75KW |
Air compressor |
2HP |
2HP |
1/2HP |
1/2HP |
Temp. range (Testing barrel) |
35±1℃~50±1℃ |
|||
Temp. range (Pressure barrel) |
47±1℃~63±1℃ |
|||
Test applicable |
NSS, ACSS,CASS,CORK |
|||
Pressed Air Pressure |
1.00±0.01kgf/cm² |
|||
Spray Amount |
1.0~2.0ml/80cm²/h(Collect at least 16 hours, take the average) |
|||
Ambient Relative Humidity |
More than 85%R.H. |
|||
PH Value |
6.5~7.2 3.0~3.2 |
|||
Spraying Manner |
Programmable Spraying |
|||
Power |
AC220V 1Φ 50Hz |

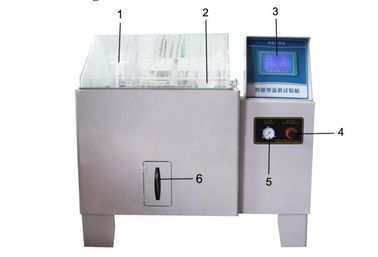

Structure(figure1)
Instruction:
(1) Spray tower
(2) Funnel cup
(3) Touch screen controller
(4) Regulator
(5) Pressure gauge
(6) Metering cylinder
Controller(figure 2)
Controller instruction:
(1)Chamber real-time temperature
(2)Chamber temperature setting
(3)Actual test time
(4)Test time setting
(5)Accumulative time
(6)Power switch
(7)Machine start/stop working button
(8)Spray start/pause button
(9)Test chamber low water alarm
(10)Defog after test
(11)Saltwater tank low water alarm
(12)Reduce setting value
(13)Increase setting value
(14)Pressure barrel low water alarm
(15)Non-spray time setting
(16)Spray time setting
(17)Pressure barrel temperature setting
(18)Pressure barrel real-time temperature
Control system:
Test chamber temperature control: Control the chamber temperature, according to standard, NSS AASS test is 35℃, and CASS test is 50℃.
Pressure barrel temperature control: Control the saturated air barrel temperature, NSS AASS is 47℃, CASS test is 63℃.
NSS AASS Test:Chamber temperature set 35℃, Pressure barrel temperature set in 47℃(40℃-50℃).
CASS test :Chamber tember temperature set 50℃, Pressure barrel temperature set 63℃(60℃-70℃).
Power switch: Control the whole machine power. Long press for power on or off.
Start/stop switch: Control the heating system of the test chamber, heat sink, and Pressure barrel.
Spray/pause switch: control the spray system.
Defog switch: control defog system, clear the salt mist in the chamber after the test.
Test chamber low water alarm: When the water level is low, the light will flicker. Add pure water into the test chamber until the light does,t flicker.
Saltwater tank low water alarm: When the saltwater level is low, the light will flicker. Add saltwater into the saltwater tank until the light does,t flicker.
Pressure barrel low water alarm: When the water level is low, the light will flicker. Add pure water into the pressure barrel nutil the light does,t flicker.
Illustration on the back of the salt spray tester
